1-0110 - Toro Commando 800 Lawn Tractor (1972) ELECTRICAL SYSTEM Parts Diagram

Commando 800 Lawn Tractor

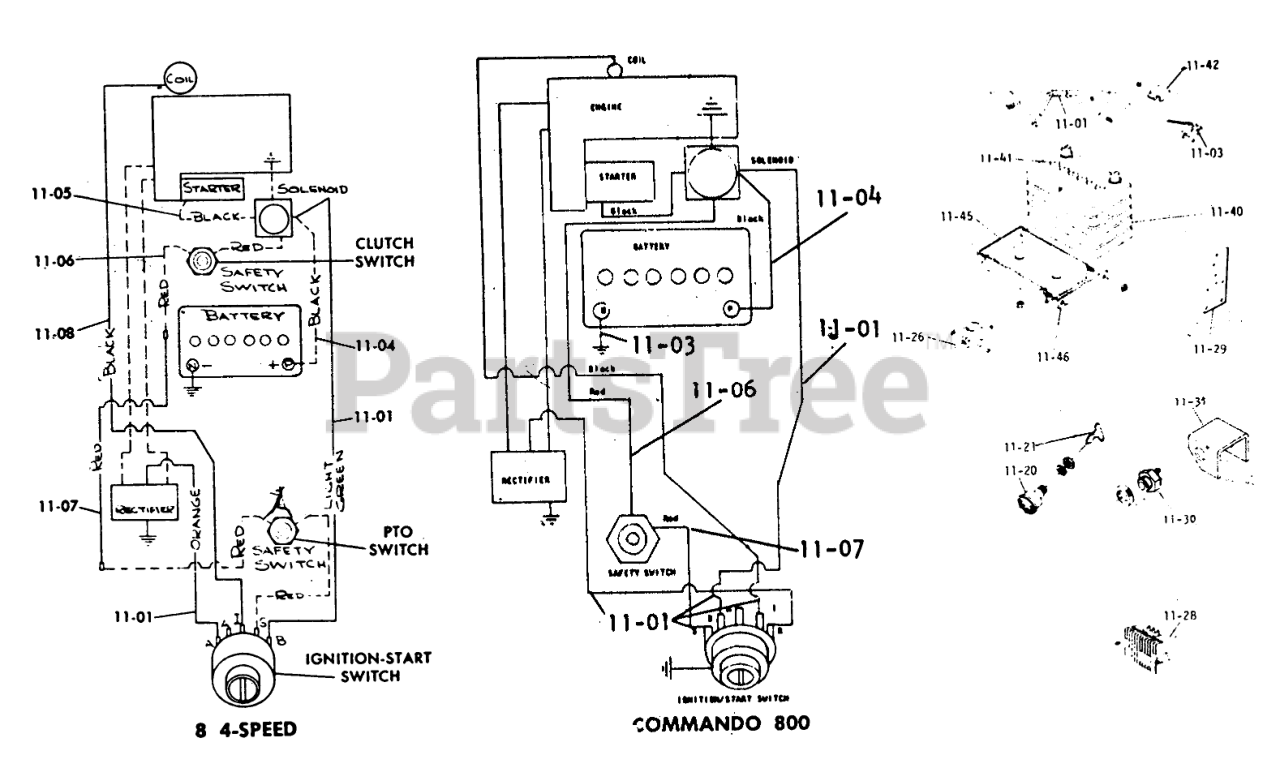

ELECTRICAL SYSTEM Parts Diagram

  • Title

11-01

Toro 102732

Harness-Wiring

$

$

Currently unavailable

Toro 102603

Harness-Wiring (Main)

$

$

Currently unavailable

Toro 100571

PLASTIC TIE

$

$

Not available

Toro 101446

CONTROL PROTECTOR

$

$

Not available

Toro 3623

LH SPINDLE

$

$

Not available

11-03

Toro 3660

Wire
(Superseded to 704057)

$

$

Not available

11-04

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-05

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-06

Toro 102250

WIRE ASSY

$

$

Not available

11-07

Toro 102251

Wire Assy.

$

$

Not available

Toro 103060

Wire

$

$

Not available

11-20

Toro 101917

Switch-Ignition
(Superseded to 92-6785)

$74.99

$

In Stock, only 1 left!

0

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

Toro 920160-4

Lockwasher 5/8

$

$

Currently unavailable

11-21

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

11-26

Toro 8658

Solenoid
(Superseded to 108544)

$116.99

$

Usually ships in 3-6 days

0

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

11-28

Toro 101450

REGULATOR-RECTIFIER

$337.99

$

Usually ships in 3-6 days

0

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11-29

Toro 102371

PLATE COIL & SOL MTG

$

$

Not available

11-30

Toro 101845

SWITCH SAFETY

$91.99

$

Usually ships in 3-6 days

0

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

11-31

Toro 101827

Bracket

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915113-6

Nut

$

$

Currently unavailable

11-40

Toro 100503

Battery
(Superseded to 105-1692)

$

$

Not available

Toro 920007-4

Washer

$

$

Currently unavailable

11-41

Toro 100438

Cap

$

$

Not available

11-45

Toro 4953

Battery Box

$

$

Not available

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

11-46

Toro 4958

LINK BATTERY CLAM R

$

$

Not available

Toro 935109-4

Plug Button-Lighter

$

$

Currently unavailable

Toro 935090-4

Plug

$

$

Currently unavailable

11-02

Toro 101971

Grommet

$

$

Not available
