1-0100 - Toro WorkHorse 800 Lawn Tractor (1971) 8.060 Sheet Metal And Covers-8.100 Belt Guards (plate 8.10) Parts Diagram

WorkHorse 800 Lawn Tractor

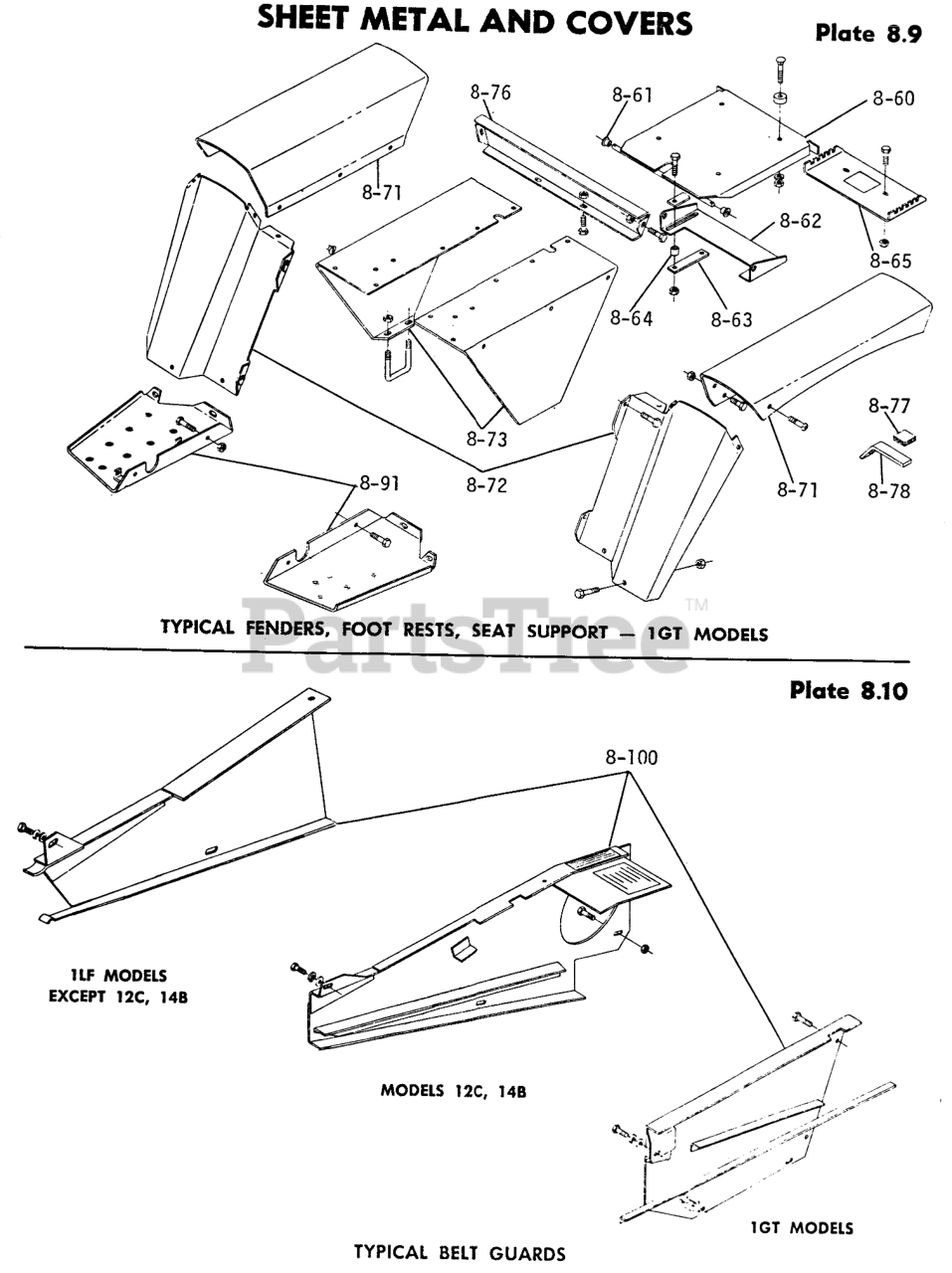

8.060 Sheet Metal And Covers-8.100 Belt Guards (plate 8.10) Parts Diagram

  • Title
8-100

Toro 101403

DISCONTINUED

$

$

Not available

8-100

Toro 101170

Assy.-Belt Guard

$

$

Currently unavailable

8-100

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

8-100

Toro 920083-4

Lockwasher

$

$

Currently unavailable

8-100

Toro 920009-4

Washer

$

$

Currently unavailable

8-100

Toro 9756

DISCONTINUED

$

$

Not available

8-100

Toro 7436

See Supercession: 92-0014
(Superseded to 920014)

$

$

Not available

8-100

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

8-100

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

8-100

Toro 920008-4

Washer

$

$

Currently unavailable

8-100

Toro 8368

DISCONTINUED

$

$

Not available

8-100

Toro 920010-4

Washer

$

$

Currently unavailable

8-100

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

8-100

Toro 908045-4

Bolt Hex 7/16-4 x 3/4

$

$

Currently unavailable

8-100

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

8-100

Toro 920040-4

Washer 7/16

$

$

Currently unavailable
