1-0100 - Toro WorkHorse 800 Lawn Tractor (1971) 4.000 Transmission-Hydrostatic-4.000 Complete Assy. Hydro. Trans. (plate 4.1, 4.2) Parts Diagram

WorkHorse 800 Lawn Tractor

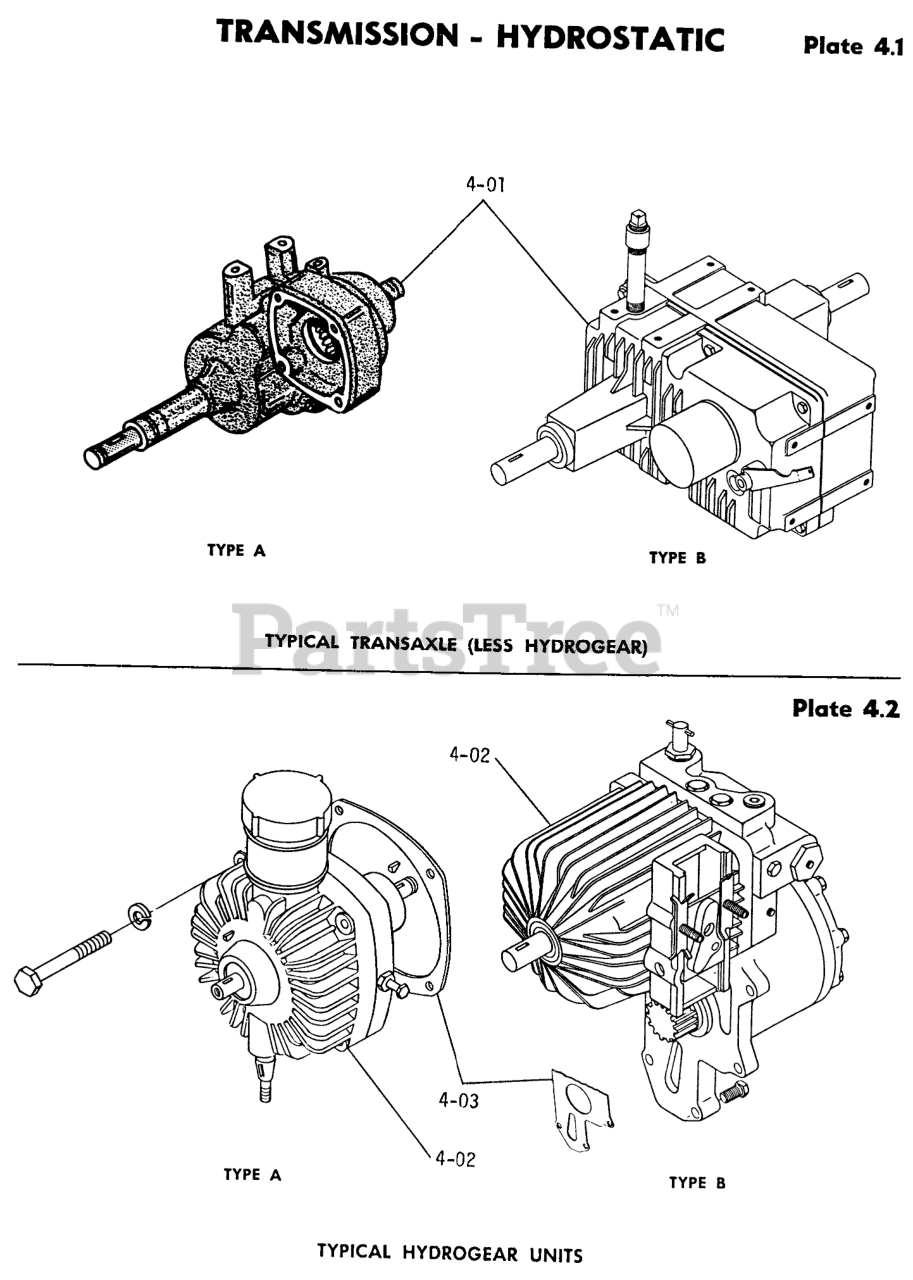

4.000 Transmission-Hydrostatic-4.000 Complete Assy. Hydro. Trans. (plate 4.1, 4.2) Parts Diagram

  • Title
N.S

Toro 5062

TRAN-ORDER COMPONENTS

$

$

Not available

4-02

Toro 7880

SRV BULLT 437B

$

$

Not available

4-02

Toro 101631

Assy.-Hydrogear-Type B-Note 3

$

$

Currently unavailable

N.S

Toro 5070

Assy.-Trans. Complete-Note 2

$

$

Currently unavailable

4-01

Toro 100177

Assy.-Transaxle-Tyne B-Note 2

$

$

Currently unavailable

4-02

Toro 8061

SER BULLT 437B

$

$

Not available

4-02

Toro 101632

Hydro-Gear Unit (Rebuilt)

$

$

Currently unavailable

4-01

Toro 101128

SEE BULL 189/122

$

$

Not available

4-02

Toro 101155

DISCONTINUED

$

$

Not available

4-02

Toro 908042-4

Bolt Hex 3/8-16 x 3

$

$

Currently unavailable

4-02

Toro 920083-4

Lockwasher

$

$

Currently unavailable

4-03

Toro 7951

DISCONTINUED

$

$

Not available

4-02

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

4-03

Toro 5955

DISCONTINUED

$

$

Not available
