097 (190-097-000) - Yard-Man 42" Mulch Kit 38" and 42" Mulching Kits Parts Diagram

42" Mulch Kit

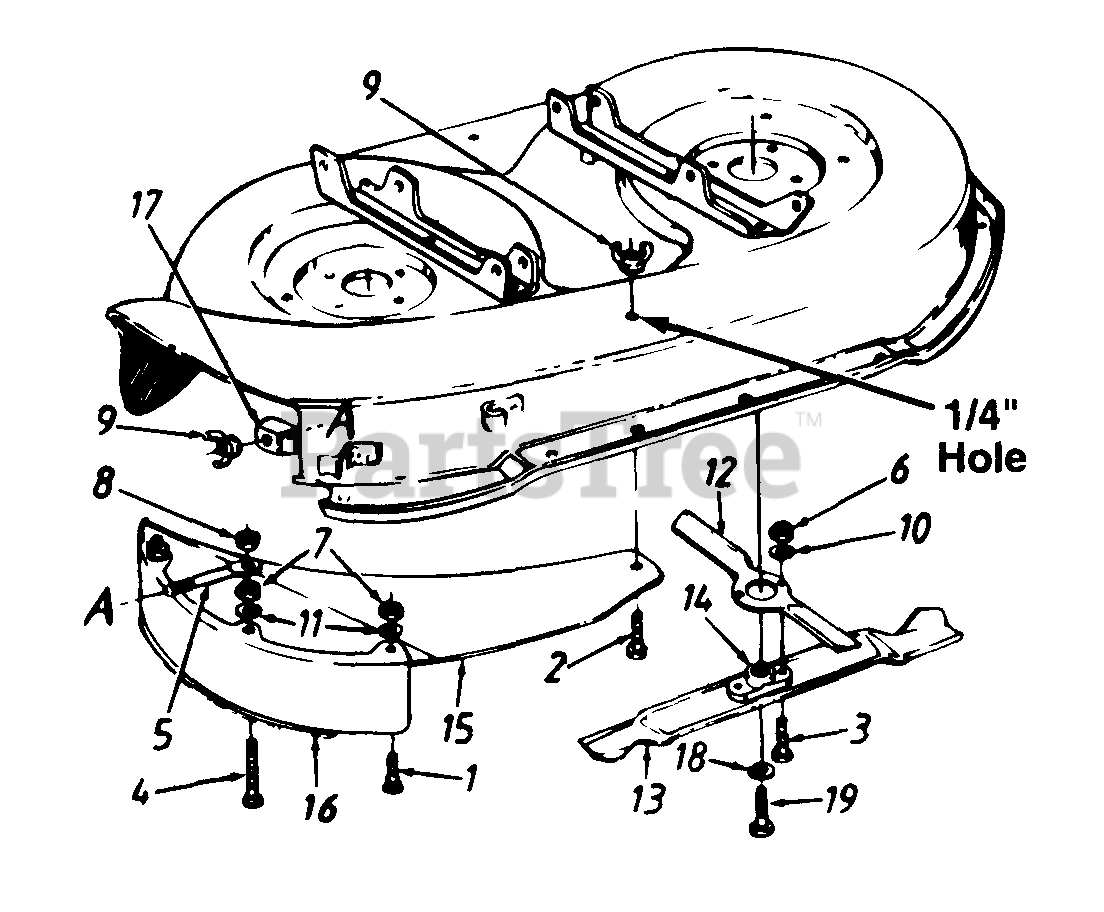

38" and 42" Mulching Kits Parts Diagram

  • Title
1

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, Qty 14

0

3

Cub Cadet 710-3029

Hex Bolt 7/16-20 x 1.25" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 12

0

4

Cub Cadet 710-0932

Carriage Bolt 1/4-20 x 1" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 711-0957

Retaining Bolt

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0378

Hex Nut 7/16-20 Thd.

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

9

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 742-0539

Mulching Blade 12.5"
(Superseded to 942-0539)

$

$

Not available

13

Cub Cadet 742-0537

Mulching Blade 19.38" (096)
(Superseded to 942-0537)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 742-0538

Mulching Blade 21.2" (097)
(Superseded to 942-0538)

$31.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 748-0365

Blade Adapter
(Superseded to 948-0365)

$

$

Not available

15

Cub Cadet 783-0024

Top Mulching Baffle (096)
(Superseded to 783-0024-0637)

$

$

Not available

Cub Cadet 783-0026

Top Mulching Baffle (097)
(Superseded to 783-0026-0637)

Variations

Cub Cadet 783-0026-0637

Top Mulch Baffle - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-0025

Side Mulching Baffle (096)

$

$

Not available

Cub Cadet 783-0027

Side Mulching Baffle (097)
(Superseded to 783-0027-0637)

Variations

Cub Cadet 783-0027-0637

Mulch Baffle, Side - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 783-0028

Locking Bracket
(Superseded to 783-0028-0637)

Variations

Cub Cadet 783-0028-0637

Locking Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

19

Cub Cadet 710-1039

Hex Bolt 3/8-24 x 1" Lg. (Gr. 8)

$4.49

$

In Stock, Qty 20+

0
