0864050 (127-366-145) - Turf Power Walk-Behind Mower (1987) (Stambaugh Thompson) Parts Parts Diagram

Walk-Behind Mower

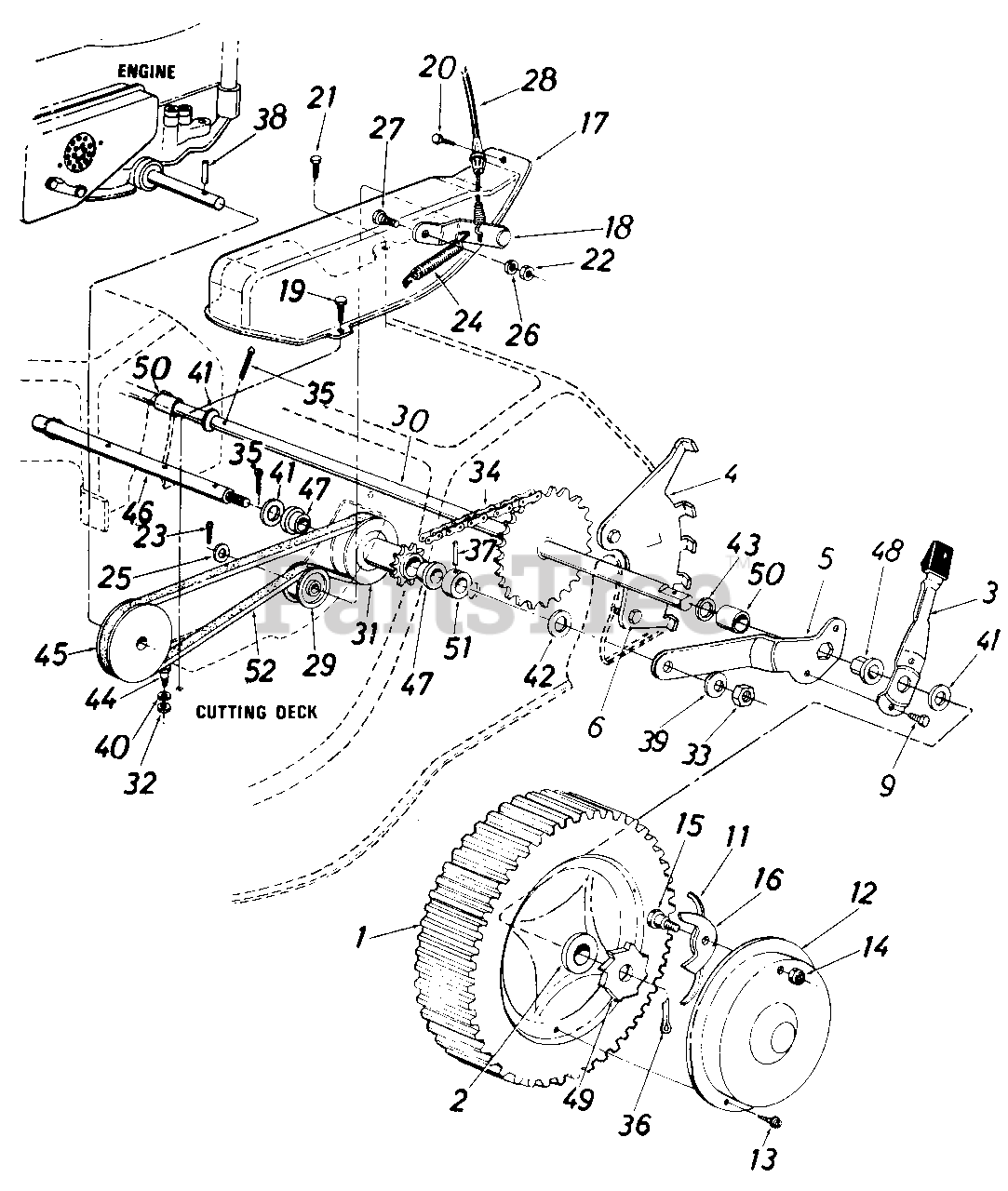

Parts Parts Diagram

  • Title

1

MTD 734-1026

Wheel Ass'y. Comp. 8.0 x 1.75

$

$

Not available

2

MTD 741-0180

Flange Brg.-1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

3

MTD 732-0467

Spring Lever w/Knob

$

$

Not available

4

MTD 16097

Index Plate-L.H.

$

$

Not available

MTD 16098

Index Plate-R.H.

Note: (Not Shown)

$

$

Currently unavailable

5

MTD 16099

Pivot Brkt.-L.H.

$

$

Not available

MTD 16100

Pivot Brkt.-R.H.

Note: (Not Shown)

$

$

Not available

6

MTD 710-0892

Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

9

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

MTD 10622

Nylon Spring
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

12

MTD 10647

Hub Cap

$

$

Not available

13

MTD 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

14

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

15

MTD 738-0137

Shld. Bolt .342" Dia. x .268

$

$

Not available

16

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$

$

Not available

17

MTD 12309

Belt Cover

$

$

Currently unavailable

18

MTD 13415

Idler Bracket Ass'y.

$

$

Not available

19

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0456

Hex Drilling Scr. #10 x .50" Lg.

$

$

Not available

21

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

24

MTD 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

25

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

26

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

27

MTD 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

28

MTD 746-0463

Clutch Cable-50"

$

$

Not available

29

MTD 756-0360

Flat Idler-Plastic

$

$

Not available

30

MTD 13414

Rear Shaft Ass'y.

$

$

Not available

31

MTD 756-0191

Pulley w/9 Tooth Sprocket Ass'y.

$

$

Not available

32

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

34

MTD 713-0144

#48 Chain 1/2" Pitch x 31 Links
(Superseded to 913-0144)

$

$

Not available

MTD 713-0122

Master Link

$

$

Not available

35

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

36

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

37

MTD 715-0120

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.

$10.99

$

In Stock, only 1 left!

0

38

MTD 715-0144

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.

$

$

Not available

39

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

42

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

43

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

44

MTD 738-0141

Shld. Bolt .437" Dia. x .350" Lg.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

45

MTD 756-0384

Engine Pulley

$

$

Not available

46

MTD 738-0471

Pulley Shaft-10.0" Lg.

$

$

Not available

47

MTD 741-0248

Flange Brg. .506" I.D. Plastic

$9.49

$

Usually ships in 3-6 days

0

48

MTD 741-0324

Hex Flange Brg. x .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

49

MTD 748-0187

Ratchet

$

$

Not available

50

MTD 750-0190

Spacer .765" I.D. x .89" O.D. x.960" Lg.

$

$

Not available

51

MTD 750-0387

Spacer .505" I.D. x .88" O.D. x.44" Lg.

$

$

Not available

52

MTD 754-0252

"V" Belt 1/2" x 33" Lg.
(Superseded to 954-0252)

$

$

Not available
