0864042 (127-284-145) - Turf Power Walk-Behind Mower (1987) (Stambaugh Thompson) Parts Parts Diagram

Walk-Behind Mower

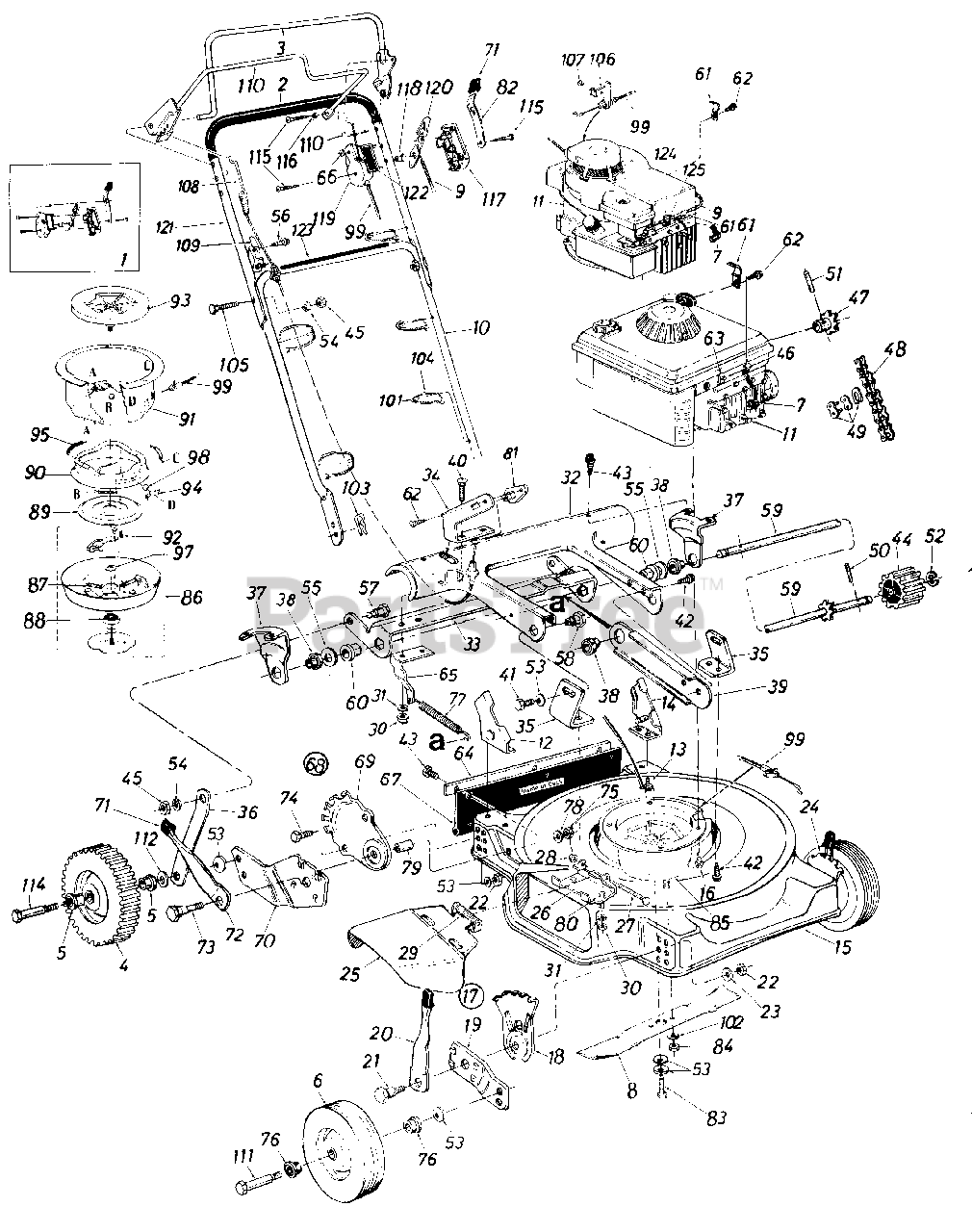

Parts Parts Diagram

  • Title

1

MTD 753-0431

Kit-Control Housing Comp.

$

$

Not available

2

MTD 718-0145

Grip

$

$

Currently unavailable

3

MTD 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

4

MTD 734-1026

Rear Wheel Ass'y.-Comp. 8 x 1.75

$

$

Not available

5

MTD 741-0180

Rear Wheel Brg.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

6

Front Wheel Ass'y.-Comp. 8 x 1.75

$

$

Not available

MTD 734-0843

Wheel-Smooth

$

$

Not available

MTD 734-0894

Wheel-Waffle Tread

$

$

Not available

MTD 734-0661

Wheel-Twinline Tread

$

$

Not available

MTD 734-0845

Wheel-Smooth

$

$

Not available

MTD 734-0645

Wheel-Waffle Tread

$

$

Not available

MTD 734-0643

Wheel-Twinline Tread

$

$

Not available

7

MTD 735-0639

Spark Plug Boot

$

$

Not available

8

MTD 742-0222

22" Blade

$

$

Not available

9

MTD 746-0632

Throttle Control Wire-53"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

10

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

11

Engine

$

$

Not available

12

MTD 12936

Handle Brkt. Ass'y.-R.H.

$

$

Not available

13

MTD 710-0603

Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

14

MTD 12935

Handle Brkt. Ass'y.-L.H.

$

$

Not available

15

MTD 14999

22" Deck Ass'y.

$

$

Not available

16

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

17

MTD 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

18

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

20

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

MTD 732-0404

Spring Lever Only
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

MTD 720-0190

Knob Only
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

21

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

MTD 736-0356

Bell-Wash. .39" I.D. x 1.4"
(Superseded to 936-0356)

$

$

Not available

24

MTD 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

25

MTD 14944

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

26

MTD 11130

Deflector Hinge Plate Ass'y.

$

$

Not available

27

MTD 711-0555

Pivot Pin

$

$

Not available

28

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

29

MTD 732-0253

Torsion Spring

$

$

Not available

30

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

31

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

MTD 16319

Pinion Pivot Cover 22"

$

$

Not available

33

MTD 16332

Cam

$

$

Not available

34

MTD 16534

Engagement Arm-L.H.

$

$

Currently unavailable

35

MTD 14759

Pivot Bracket

$

$

Not available

36

MTD 14760

Link 4.58" x .88" Wide

$

$

Not available

37

MTD 14757

Axle Brkt.

$

$

Not available

38

MTD 741-0180

Flange Ball Brg. .500" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

39

MTD 14777

Brg. Support

$

$

Currently unavailable

40

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-0168

Hex Bolt 3/8-16 x .50" Lg.*

$3.99

$

Usually ships in 3-6 days

0

42

MTD 710-0892

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 910-0892)

$

$

Not available

43

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

44

MTD 731-0393

13 Teeth-Drive Pinion
(Superseded to 931-0393)

$

$

Not available

45

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

47

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

48

MTD 713-0311

#48 Chain 1/2" Pitch 49 Links
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

49

MTD 713-0116

Master Link

$

$

Not available

50

MTD 715-0246

Spring Pin Spir. 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

51

MTD 715-0247

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.
(Superseded to 915-0247)

$

$

Not available

52

MTD 716-0104

"E"-Ring For .500" Dia. Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

53

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

56

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .751

$4.49

$

In Stock, Qty 20+

0

57

MTD 738-0155

Shld. Bolt .437" I.D. x .162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 738-0529

Shld. Nut .625" Dia. x .165
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

59

MTD 738-0530

Pinion Shaft w/7 T Sprocket

$

$

Not available

60

MTD 741-0484

Flange Brg. .506" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

61

MTD 12894

Casing Clamp

$

$

Not available

62

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

63

MTD 751-0442

Casing Clamp

$

$

Not available

64

MTD 14846

Retaining Strip

$

$

Not available

65

MTD 16536

Spring Bracket

$

$

Currently unavailable

66

MTD 736-0931

Fl-Wash. .203 I.D. x .406

$4.99

$

In Stock, only 1 left!

0

67

MTD 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

68

MTD 14762

Rear Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

MTD 14763

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Currently unavailable

69

MTD 14764

Index Plate
(Superseded to 14764C)

$8.49

$

Usually ships in 3-6 days

0

70

MTD 14765

Pivot Bar-R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar-L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

71

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

72

MTD 732-0417

Spring Lever
(Superseded to 732-0417A)

$

$

Not available

73

MTD 738-0528

Shoulder Bolt .500" Dia. x .433" Lg.

$

$

Not available

74

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

75

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

76

Front Wheel Bearing

$

$

Not available

MTD 741-0262

Plastic Bearing

$8.49

$

Usually ships in 3-6 days

0

MTD 741-0267

3/8" Ball Bearing

$

$

Not available

MTD 741-0484

1/2" Ball Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

77

MTD 732-0428

Extension Spring 4.25" Lg.
(Superseded to 732-0428B)

$11.99

$

In Stock, only 1 left!

0

78

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

79

MTD 750-0503

Spacer .383" I.D. x .5031" O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

80

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

81

MTD 746-0606

Barrel Cable Hold-Down

$

$

Not available

82

MTD 732-0401

Lockout Lever

$

$

Not available

83

MTD 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

84

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

85

MTD 717-0487

Blade Brake/Clutch Comp.

$

$

Not available

86

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

87

MTD 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

88

MTD 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

89

MTD 14304

Clutching Cone

$

$

Not available

90

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

91

MTD 14307

Clutch Housing

$

$

Not available

92

MTD 710-0875

Hex Tap L-Scr. 1/4-20 x .75"

$3.99

$

In Stock, only 2 left!

0

93

MTD 719-0256

Fan Adapter

$

$

Not available

94

MTD 731-0520

Ball Block

$

$

Not available

95

MTD 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

97

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

98

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

99

MTD 746-0402A

Clutch Cable-43"

$

$

Not available

MTD 731-0607

Lock Pin .314" Dia. x 1.70"

$

$

Not available

101

MTD 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

102

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

103

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

104

MTD 726-0192

Cable Tie

$

$

Not available

105

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1 38" Lg.

$

$

Not available

106

MTD 14924

Cable Bracket

$

$

Not available

107

MTD 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

108

MTD 746-0625

Clutch Cable w/Spring

$

$

Not available

109

MTD 16309

Cable Mtg. Brkt.
(Superseded to 16309A)

$

$

Not available

110

MTD 16391

Control Handle

$

$

Not available

111

MTD 738-0102

Shld. Bolt .448 Dia. x 1.450

$9.99

$

In Stock, Qty 10

0

112

MTD 736-0192

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

114

MTD 738-0144

Shld. Bolt .498" Dia. x 1.64
(Superseded to 938-0144)

$

$

Not available

115

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

116

MTD 750-0649

Spacer.23" I.D.

$

$

Not available

117

MTD 731-0817

Control Panel Half

$

$

Not available

118

MTD 731-0524

Control Disc Pin

$

$

Not available

119

MTD 731-0816

Clutch Panel Half

$

$

Not available

120

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

121

MTD 749-0536

Upper Handle (Chrome)
(Superseded to 749-0538E-0637)

$

$

Not available

MTD 749-0538

Upper Handle (Painted)
(Superseded to 749-0538E-0637)

$

$

Not available

122

MTD 777-5774

Control Label

$

$

Currently unavailable

123

MTD 777-5775

Instruction Label

$

$

Currently unavailable

124

MTD 751-0369

Casing Clamp

$

$

Not available

125

MTD 710-0227

Hex AB-Tap Scr. #8 x .50"

$4.49

$

In Stock, Qty 20+

0

MTD 8284-000-6

Hardware Pack

$

$

Currently unavailable
