086 (190-086-100) - Cub Cadet Grass Catcher (1992) Grass Catcher Parts Diagram

Grass Catcher

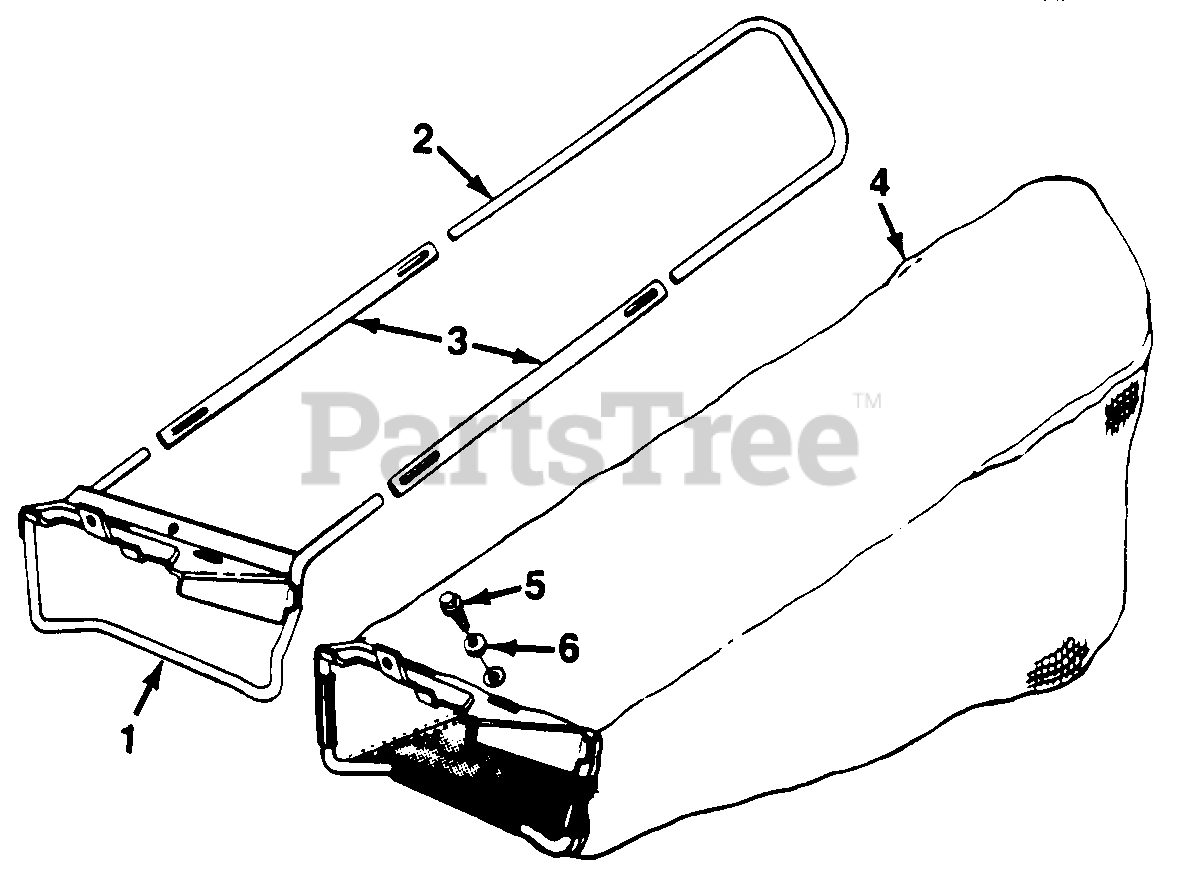

Grass Catcher Parts Diagram

  • Title

1

Cub Cadet 16839B

Frame--Lower Ass'y.
(Superseded to 16839C-0637)

Variations

Cub Cadet 16839B-0637

USE 16839C-0637 FRAME ASM-LOW - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 747-0575

Frame--Upper
(Superseded to 747-0575-0637)

Variations

Cub Cadet 747-0575-0637

FRAME-UPPER - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 749-0774

Tube Support
(Superseded to 749-0774-0637)

Variations

Cub Cadet 749-0774-0637

TUBE-CATCHER SUPPO - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 764-0271

Grass Bag
(Superseded to 964-0271)

$115.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

?7

Cub Cadet 16892

Deflector Stop

$

$

Not available

?8

Cub Cadet 16893

Support Plate

$

$

Not available

?9

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

?10

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

?11

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

?12

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
