08201509 - Ariens AX 252cc Engine Engine - 08201509 Parts Diagram

AX 252cc Engine

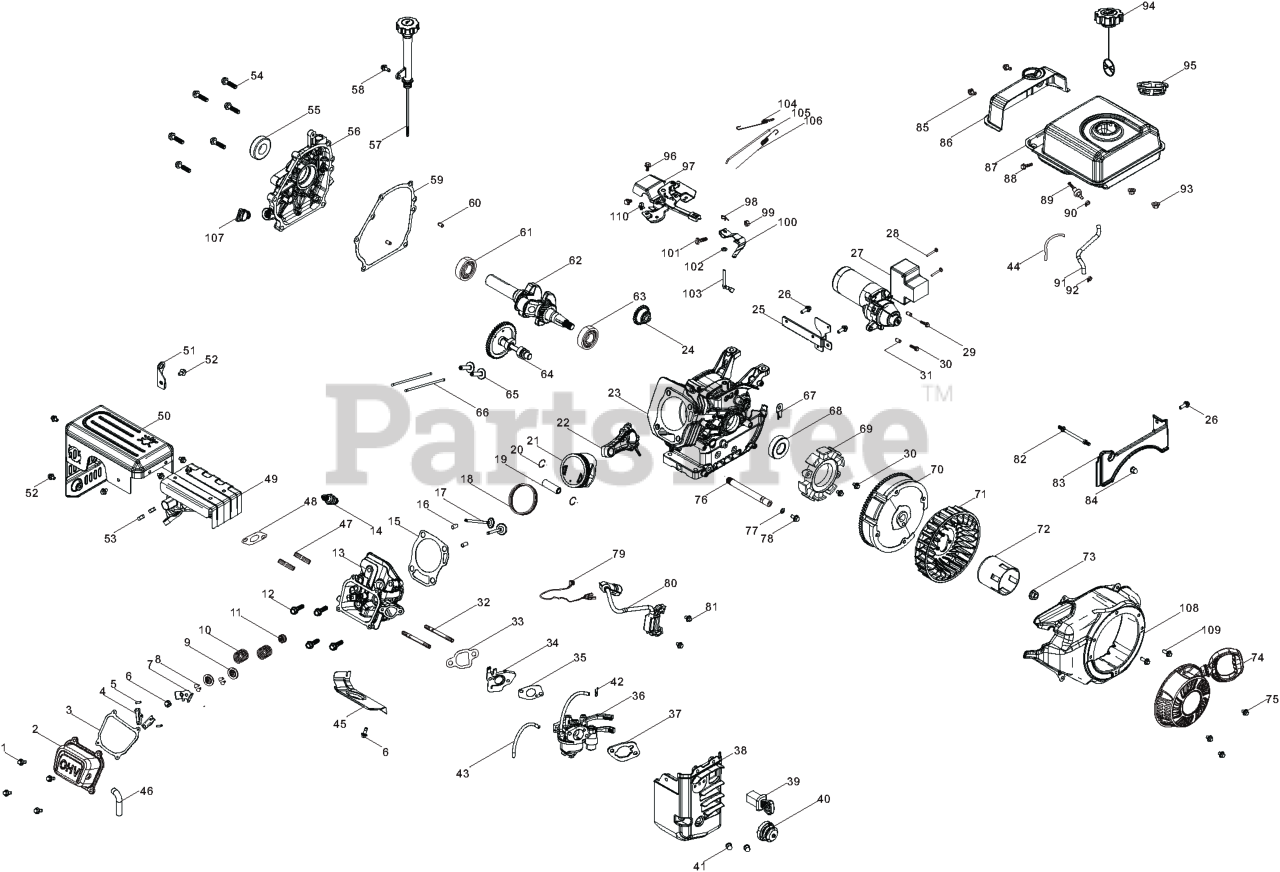

Engine - 08201509 Parts Diagram

  • Title

Ariens 08201509

ENGINE, ARIENS AX252 120V/60W

Note: Complete Engine Assembly

$

$

Currently unavailable

1

Ariens 20100157

BOLT, M6X12 HEX FLANGE

$0.99

$

Usually ships in 0 days

0

2

Ariens 20100032

COVER, VALVE

$6.99

$

Usually ships in 0 days

0

3

Ariens 20100013

GASKET, VALVE COVER

$2.99

$

Usually ships in 0 days

0

4

Ariens 20100058

ROCKER SUBASSEMBLY, VALVE

$3.99

$

Usually ships in 0 days

0

5

Ariens 20100063

ASM, ROCKER SHAFT

$2.49

$

Usually ships in 0 days

0

6

Ariens 20100145

BOLT, M6X10 HEX FLANGE

$

$

Not available

7

Ariens 20100034

CYL HEAD COVER PIN LIMIT PLATE

$1.49

$

Usually ships in 0 days

0

8

Ariens 20100023

CLAMP, VALVE LOCK

$0.99

$

Usually ships in 0 days

0

9

Ariens 20100027

SEAT, VALVE SPRING

$1.49

$

Usually ships in 0 days

0

10

Ariens 20100019

SPRING, VALVE

$1.49

$

Usually ships in 0 days

0

11

Ariens 20100018

GUIDE, SEAL

$2.99

$

Usually ships in 0 days

0

12

Ariens 20100011

CYLINDER HEAD BOLT

$2.49

$

Usually ships in 0 days

0

13

Ariens 20100030

ASM, CYLINDER HEAD

$31.99

$

Usually ships in 0 days

0

14

Ariens 20001113

SPARK PLUG - PLATINUM

$9.49

$

In Stock, Qty 5

0

15

Ariens 20100028

GASKET, CYLINDER HEAD

$5.99

$

Usually ships in 0 days

0

16

Ariens 20100181

POSITION PIN - TYPE A

$0.99

$

Usually ships in 0 days

0

17

Ariens 20100025

VALVES SET

$12.99

$

Usually ships in 0 days

0

18

RING ASSY, PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

19

PIN, PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

20

CLIP, PISTON PIN

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

21

PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

22

ROD, CONNECTING

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

23

CRANKCASE SUBASSEMBLY

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

24

Ariens 20100091

GEAR ASSY, GOVERNOR

$7.99

$

Usually ships in 0 days

0

25

Ariens 20100133

ASM,  CONTROL BOX SUPPORT

$

$

Not available

26

Ariens 20100159

BOLT, M6X14 GRADE B HEX FLANGE

$0.99

$

Usually ships in 0 days

0

27

Ariens 20100131

STARTING MOTOR ASSEMBLY

$155.99

$

Usually ships in 0 days

0

28

Ariens 20100160

SCREW, PAN HEAD M4X55X0.7

$0.99

$

Usually ships in 0 days

0

29

Ariens 20100152

BOLT, M6X35 HEX FLANGE

$

$

Not available

30

Ariens 20100149

BOLT, M6X25 HEX FLANGE

$

$

Not available

31

Ariens 20100178

POSITION PIN - TYPE A

$0.99

$

Usually ships in 0 days

0

32

Ariens 20100162

STUD BOLT (BM=2D)

$1.49

$

Usually ships in 0 days

0

33

Ariens 20100070

GASKET, CARBURETOR INSULATOR

$0.99

$

Usually ships in 0 days

0

34

Ariens 20100071

PLATE, CARBURETOR INSULATOR

$2.49

$

Usually ships in 0 days

0

35

Ariens 20100068

CARBURETOR SEAL GASKET

$1.49

$

Usually ships in 0 days

0

36

Ariens 20100086

CARBURETOR ASSY

$39.99

$

Usually ships in 0 days

0

37

Ariens 20100105

AIR CLEANER SEAL GASKET

$1.49

$

Usually ships in 0 days

0

38

Ariens 20100110

BOX, HEATER

$11.99

$

Usually ships in 0 days

0

39

Ariens 20100139

ASM, STOP ENGINE SWITCH

$6.99

$

Usually ships in 0 days

0

40

Ariens 20100087

BULB, PRIMER

$6.99

$

Usually ships in 0 days

0

41

Ariens 20100171

ACORN HEXAGON NUTS

$0.99

$

Usually ships in 0 days

0

42

Ariens 20100193

CLAMP

$0.99

$

Usually ships in 0 days

0

43

Ariens 20100088

LINE, PRIMER

$0.99

$

Usually ships in 0 days

0

44

Ariens 20100138

JACKET, RUBBER

$0.99

$

Usually ships in 0 days

0

45

Ariens 20100118

SHROUD, CYLINDER BODY

$3.49

$

Usually ships in 0 days

0

46

Ariens 20100109

TUBE, BREATHER

$1.49

$

Usually ships in 0 days

0

47

Ariens 20100161

STUD BOLT (BM=1.5D)

$0.99

$

Usually ships in 0 days

0

48

Ariens 20100112

GASKET, EXHAUST OUTLET

$1.49

$

Usually ships in 0 days

0

49

Ariens 20100113

MUFFLER ASSY

$30.99

$

Usually ships in 0 days

0

50

Ariens 20100115

SHIELD, HEAT

$28.99

$

Usually ships in 0 days

0

51

Ariens 20100194

TRANSPORT HANGER

Note: Not Available

$2.99

$

Usually ships in 0 days

0

52

Ariens 20100147

BOLT, M6X12 HEX FLANGE

$

$

Not available

53

Ariens 20100166

TYPE 1 HEXAGON NUT

$0.99

$

Usually ships in 0 days

0

54

Ariens 20100154

BOLT, M8X32 HEX FLANGE

$

$

Not available

55

Ariens 20100186

SEAL, OIL

$6.99

$

Usually ships in 0 days

0

56

Ariens 20100009

COVER, CRANKCASE

$34.99

$

Usually ships in 0 days

0

57

Ariens 20100064

DIPSTICK SUBASSEMBLY, OIL

$10.99

$

Usually ships in 0 days

0

58

Ariens 20100148

BOLT, M6X16 HEX FLANGE

$0.99

$

Usually ships in 0 days

0

59

Ariens 20100002

GASKET, CRANKCASE

$6.99

$

Usually ships in 0 days

0

60

Ariens 20100179

POSITION PIN - TYPE A

$0.99

$

Usually ships in 0 days

0

61

Ariens 20100184

BRG, P53 DEEP GROOVE BALL

$12.99

$

Usually ships in 0 days

0

62

Ariens 20100045

CRANKSHAFT ASSY

$56.99

$

Usually ships in 0 days

0

63

Ariens 20100183

BRG, P53 DEEP GROOVE BALL

$12.99

$

Usually ships in 0 days

0

64

Ariens 20100056

CAMSHAFT ASSY

$18.99

$

Usually ships in 0 days

0

65

Ariens 20100053

TAPPET, VALVE

$3.49

$

Usually ships in 0 days

0

66

Ariens 20100052

LIFTER, VALVE

$2.49

$

Usually ships in 0 days

0

67

Ariens 20100142

CLAMP, HARNESS

$0.99

$

Usually ships in 0 days

0

68

Ariens 20100186

SEAL, OIL

$6.99

$

Usually ships in 0 days

0

69

Ariens 20100129

COIL SUBASSEMBLY, CHARGE

$29.99

$

Usually ships in 0 days

0

70

Ariens 20100049

FLYWHEEL SUBASSEMBLY

$51.99

$

Usually ships in 0 days

0

71

Ariens 20100120

IMPELLER

$6.99

$

Usually ships in 0 days

0

72

Ariens 20100122

CUP, STARTER

$7.99

$

Usually ships in 0 days

0

73

Ariens 20100047

NUT, FLYWHEEL

$1.99

$

Usually ships in 0 days

0

74

Ariens 20100123

RECOIL, MANUAL STARTER

$28.99

$

Usually ships in 0 days

0

74a

Ariens 20100128

SHROUD

$7.99

$

Usually ships in 0 days

0

75

Ariens 20100158

BOLT, M6X12 GRADE B HEX FLANGE

$0.99

$

Usually ships in 0 days

0

76

Ariens 20100006

TUBE, OIL DRAIN

$6.99

$

Usually ships in 0 days

0

77

Ariens 20100174

FLAT WASHER - GRADE A

$0.99

$

Usually ships in 0 days

0

78

Ariens 20100003

BOLT, DRAIN PLUG

$1.49

$

Usually ships in 0 days

0

79

Ariens 20100136

WIRE, IGNITION COIL STOP ENG

$13.99

$

Usually ships in 0 days

0

80

Ariens 20100135

COIL, IGNITION

$20.99

$

Usually ships in 0 days

0

81

Ariens 20100149

BOLT, M6X25 HEX FLANGE

$

$

Not available

82

Ariens 20100165

STUD BOLT (BM=2D)

$5.99

$

Usually ships in 0 days

0

83

Ariens 20100143

FRONT SNOW GUARD

$7.99

$

Usually ships in 0 days

0

84

Ariens 20100169

ACORN HEXAGON NUTS

$1.49

$

Usually ships in 0 days

0

85

Ariens 20100147

BOLT, M6X12 HEX FLANGE

$

$

Not available

86

Ariens 20100101

FUEL TANK PLATE

$6.99

$

Usually ships in 0 days

0

87

Ariens 20100098

FUEL TANK

$31.99

$

Usually ships in 0 days

0

88

Ariens 20100151

BLT, M6X32 HEX FLANGE

$

$

Not available

89

Ariens 20100103

OUTLET WITH FILTER

$2.49

$

Usually ships in 0 days

0

90

Ariens 20100189

PIPE CLAMP

$0.99

$

Usually ships in 0 days

0

91

Ariens 20100192

TUBE, FUEL

$4.99

$

Usually ships in 0 days

0

92

Ariens 20100190

PIPE CLAMP

$0.99

$

Usually ships in 0 days

0

93

Ariens 20100167

HEXAGON NUT WITH FLANGE

$0.99

$

Usually ships in 0 days

0

94

Ariens 20100104

CAP, FUEL

$9.49

$

Usually ships in 0 days

0

95

Ariens 20100102

FUEL GAUGE

$1.49

$

Usually ships in 0 days

0

96

Ariens 20100146

BOLT, M6X10 HEX FLANGE

$0.99

$

Usually ships in 0 days

0

97

Ariens 20100092

CONTROL ASSY, THROTTLE

$12.99

$

Usually ships in 0 days

0

98

Ariens 20100177

COTTER PIN

$0.99

$

Usually ships in 0 days

0

99

Ariens 20100167

HEXAGON NUT WITH FLANGE

$0.99

$

Usually ships in 0 days

0

100

Ariens 20100081

ASM, GOVERNOR BRACKET

$3.49

$

Usually ships in 0 days

0

101

Ariens 20100084

BOLT, GOVERNOR SUPPORT

$0.99

$

Usually ships in 0 days

0

102

Ariens 20100173

FLAT WASHER - GRADE A

$0.99

$

Usually ships in 0 days

0

103

Ariens 20100076

ARM, GOVERNOR

$3.49

$

Usually ships in 0 days

0

104

Ariens 20100079

SPRING, GOVERNOR

$0.99

$

Usually ships in 0 days

0

105

Ariens 20100077

ROD, GOVERNEOR

$0.99

$

Usually ships in 0 days

0

106

Ariens 20100073

SPRING, THROTTLE VLV RETURNING

$0.99

$

Usually ships in 0 days

0

107

Ariens 20100066

ASM, ENGINE OIL PLUG

$2.49

$

Usually ships in 0 days

0

108

Ariens 20100128

SHROUD

$7.99

$

Usually ships in 0 days

0

109

Ariens 20100158

BOLT, M6X12 GRADE B HEX FLANGE

$0.99

$

Usually ships in 0 days

0

NS

Ariens 20100195

KIT,252CC 3000-6000FT CARB JET

Note: Component Service Part

$4.99

$

Usually ships in 0 days

0

NS

Ariens 20100196

KIT,252CC 6000-8000FT CARB JET

Note: Component Service Part

$4.99

$

Usually ships in 0 days

0
