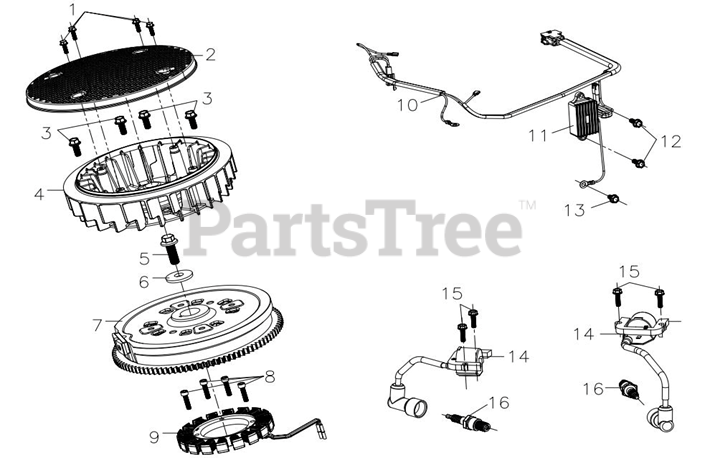

08201340 - Gravely 764 Replacement Engine with Canister Air Filter Flywheel / Coil Assembly Parts Diagram

764 Replacement Engine with Canister Air Filter

Flywheel / Coil Assembly Parts Diagram

  • Title

1

Gravely 21110540

HEXAGON BOLT WITH FLANGE

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 21569800

SCREEN, ENGINE

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 21110543

HEXAGON BOLT WITH FLANGE

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 21110502

IMPELLER

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 21110547

HEXAGON BOLT WITH FLANGE

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 21110553

FLAT WASHER

$

$

Not available

7

Gravely 21110531

FLYWHEEL COMP

$83.99

$

Usually ships in 4-12 days

0

8

Gravely 21110550

SOCKET HEAD SCREW

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 21110532

COMPS OF CHRGNG CURRNT ARMATUR

$30.99

$

In Stock, only 1 left!

0

10

Gravely 21110599

CONNECTING WIRE

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 21110536

RECTIFIER

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 21100134

BOLT, FLANGE

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 21100147

BOLT, FLANGE

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 21110601

COIL ASSY IGNITION
(Superseded to 21110534)

$22.99

$

In Stock, only 2 left!

0

15

Gravely 21110602

HEXAGON BOLT WITH FLANGE

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 21567100

PLUG, SPARK

$6.99

$

In Stock, only 2 left!

0
