08201337 - Ariens AX 291cc Engine 08201337 - AX 291 240v/60w Parts Diagram

AX 291cc Engine

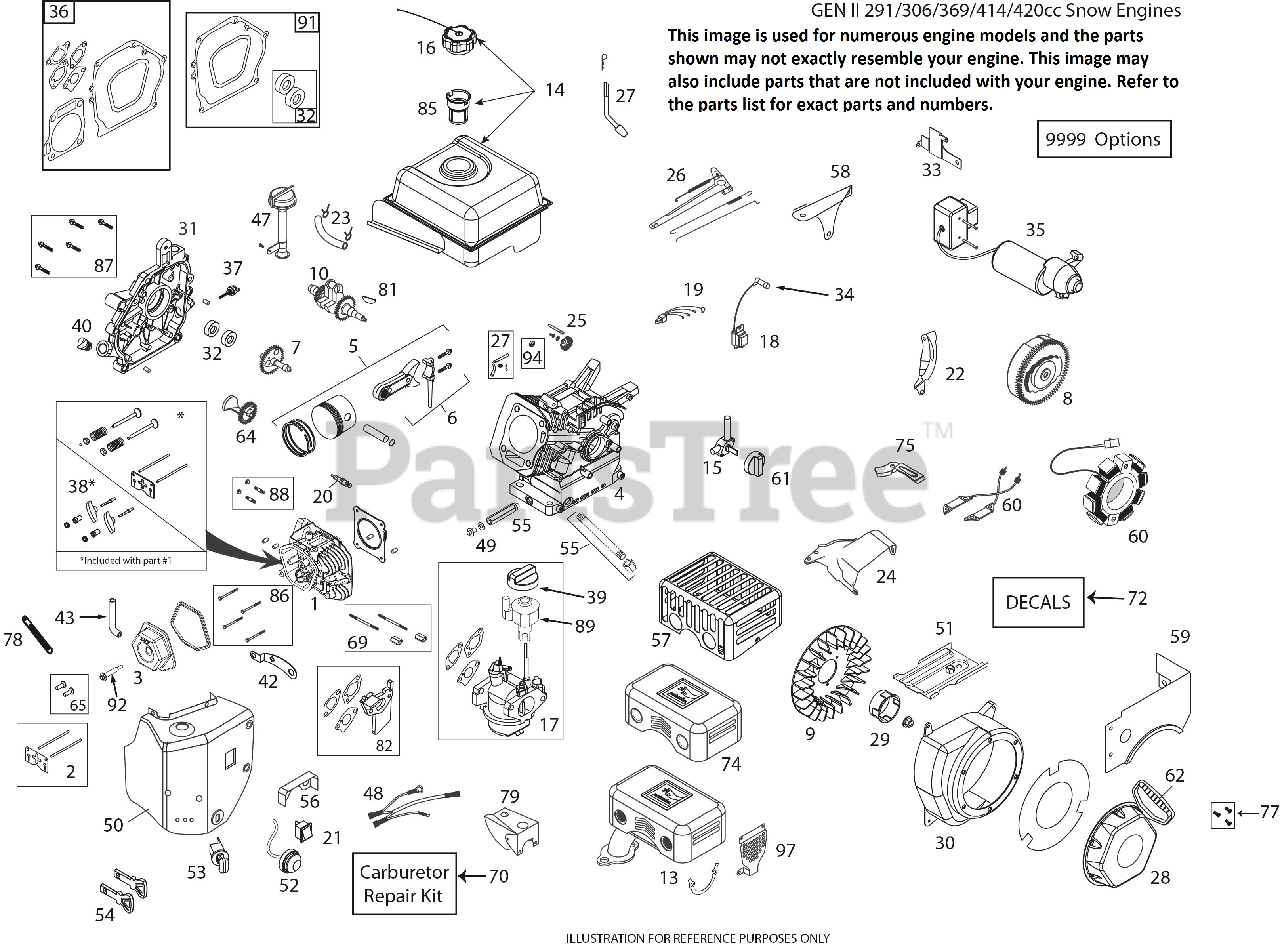

08201337 - AX 291 240v/60w Parts Diagram

  • Title

1

Ariens 20001265

CYLINDER HEAD ASSY (W/GASKET)

$312.99

$

Usually ships in 4-12 days

0

2

Ariens 20001266

PUSH ROD & PLATE KIT (W/GSKT)
(Superseded to 20001364)

$

$

Not available

3

Ariens 20001298

VALVE COVER (W/GASKET)
(Superseded to 20001553)

$34.99

$

Usually ships in 4-12 days

0

4

Note: Ref # N/A as service part on this model

$

$

Not available

5

Ariens 20001269

PISTON & ROD ASSEMBLY

$86.99

$

Usually ships in 4-12 days

0

6

Ariens 20001270

CONNECTING ROD ASSEMBLY
(Superseded to 20001269)

$86.99

$

Usually ships in 4-12 days

0

7

Ariens 20001272

CAMSHAFT - MCR

$95.99

$

Usually ships in 4-12 days

0

8

Ariens 20001110

FLYWHEEL - ELECTRIC START

$245.99

$

Usually ships in 4-12 days

0

9

Ariens 20001278

COOLING FAN - FLYWHEEL

$13.99

$

Usually ships in 4-12 days

0

10

Ariens 20001123

CRANKSHAFT (#17 KEYED)

$197.99

$

Usually ships in 4-12 days

0

13

Ariens 20001102

MUFFLER ASSEMBLY

$60.99

$

Usually ships in 4-12 days

0

14

Ariens 20001554

FUEL TANK (3.6L)

$110.99

$

Usually ships in 4-12 days

0

15

Ariens 20001162

FUEL TANK ON/OFF VALVE
(Superseded to 20001436)

$23.99

$

In Stock, Qty 16

0

16

Ariens 20001131

FUEL TANK CAP - (VENTED)
(Superseded to 07500112)

$13.99

$

In Stock, Qty 10

0

17

Ariens 20001108

CARBURETOR (W/IDLE-DOWN)

$94.99

$

Usually ships in 4-12 days

0

18

Ariens 20001159

IGNITION COIL (CDI) (STANDARD)

$35.99

$

In Stock, only 1 left!

0

19

Note: Ref # Not used on this model

$

$

Not available

20

Ariens 20001271

SPARK PLUG
(Superseded to 20001246)

$6.99

$

In Stock, Qty 20+

0

21

Ariens 20001139

ON/OFF SWITCH - ROCKER
(Superseded to 20001033)

$11.99

$

In Stock, only 1 left!

0

22

Note: Ref # Not used on this model

$

$

Not available

23

Ariens 20001301

FUEL HOSE KIT
(Superseded to 20001252)

$5.99

$

In Stock, Qty 12

0

24

Ariens 20001384

SPEED CONTROL BRACKET (FIXED)

$

$

Not available

25

Ariens 20001274

GOVERNOR GEAR ASSEMBLY

$12.99

$

In Stock, only 1 left!

0

26

Ariens 20001117

GOVERNOR ARM & LINK KIT

$8.99

$

Usually ships in 4-12 days

0

27

Ariens 20001275

GOVERNOR ARM PADDLE

$

$

Not available

28

Ariens 20001450

RECOIL STARTER, ROUND STYLE

$68.99

$

In Stock, Qty 6

0

29

Ariens 20001451

STARTER CUP, ROUND STYLE

$

$

Not available

30

Ariens 20001120

BLOWER HOUSING
(Superseded to 20001408)

$98.99

$

Usually ships in 4-12 days

0

31

Ariens 20001276

CRANKCASE COVER ASSY

$151.99

$

Usually ships in 4-12 days

0

32

Ariens 20001277

OIL SEAL KIT

$11.99

$

Usually ships in 4-12 days

0

33

Ariens 20001114

ELECTRIC START SWITCHBOX BRKET

$

$

Not available

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

$9.49

$

In Stock, only 2 left!

0

35

Ariens 20001115

230V EU ELECTRIC STARTER

$298.99

$

In Stock, only 1 left!

0

36

Ariens 20001279

ENGINE GASKET KIT

$37.99

$

Usually ships in 4-12 days

0

37

Ariens 20001293

SMALL BLACK OIL DIPSTICK

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 20001284

ROCKER ARM KIT (W/GASKET)

$19.99

$

Usually ships in 4-12 days

0

39

Ariens 20001145

CHOKE CONTROL KNOB (RED)
(Superseded to 20000025)

$4.99

$

In Stock, Qty 20+

0

40

Ariens 20001294

NON-REMOVABLE PLASTIC PLUG

$

$

Not available

Note: Ref # Not used on this model

$

$

Not available

43

Ariens 20001405

BREATHER TUBE (291/369/414CC)

$

$

Not available

47

Ariens 20001163

HIGH OIL-FILL TUBE & CAP

$9.49

$

In Stock, only 2 left!

0

48

Ariens 20001141

WIRE HARNESS

$

$

Not available

49

Ariens 20001303

OIL DRAIN PLUG (W/WASHER)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 20001555

HEATER BOX KIT

$

$

Currently unavailable

51

Ariens 20001281

SHIELD - CYLINDER

$7.49

$

Usually ships in 4-12 days

0

52

Ariens 20001133

PRIMER BULB WITH HOSE
(Superseded to 20001472)

$

$

Not available

53

Ariens 20001137

SAFETY KEY SWITCH (W/KEYS)
(Superseded to 20001031)

$25.99

$

Usually ships in 4-12 days

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 12

0

55

Ariens 20001160

OIL DRAIN TUBE

$

$

Not available

56

Ariens 20001154

CARBURETOR VAPOR SHIELD

$24.99

$

Usually ships in 4-12 days

0

57

Ariens 20001339

CE MUFFLER HEAT SHLD CPC#22031

$82.99

$

Usually ships in 4-12 days

0

58

Ariens 20001116

SHIELD - GOVERNOR LINKAGE

$7.49

$

Usually ships in 4-12 days

0

59

Ariens 20001556

FUEL TANK SKIRT

$

$

Currently unavailable

60

Ariens 20001111

CHARGING COIL (60-WATT AC)

$56.99

$

Usually ships in 4-12 days

0

64

Note: Ref # Not used on this model

$

$

Not available

61

Ariens 20001148

FUEL CONTROL KNOB (RED)
(Superseded to 20000024)

$4.99

$

In Stock, Qty 20+

0

62

Ariens 20001064

STARTER GRIP-SNOW (DELUXE)

$12.99

$

In Stock, only 2 left!

0

65

Ariens 20001267

TAPPET KIT (SET OF 2)

$

$

Not available

69

Ariens 20001351

CARB MTG STUD KIT 291CC SNOW

$7.49

$

In Stock, only 1 left!

0

70

Ariens 20001185

CARBURETOR REPAIR KIT

$28.99

$

In Stock, only 1 left!

0

72

Ariens 20001183

ARIENS 291 (ALL) SNW DCL KIT

$7.49

$

Usually ships in 4-12 days

0

Note: Ref # Not used on this model

$

$

Not available

75

Ariens 20001383

WIRE GUARD PLATE

$

$

Not available

77

Ariens 20001186

RECOIL BOLT KIT

$4.99

$

In Stock, Qty 6

0

79

Note: Ref # Not used on this model

$

$

Not available

81

Ariens 20001327

WOODRUFFF FLYWHEEL KEY 5-PACK

$

$

Not available

82

Ariens 20001334

CARBURETOR SPACER

$7.49

$

Usually ships in 4-12 days

0

85

Ariens 20001342

FUEL TANK STRAINER

$4.99

$

In Stock, Qty 5

0

86

Ariens 20001359

HEAD BOLT KIT 291-414CC

$14.99

$

Usually ships in 4-12 days

0

87

Ariens 20001357

CRANKCASE COVER BOLT KIT 291CC

$7.49

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

$7.99

$

In Stock, only 1 left!

0

89

Ariens 20001372

SPEED CONTROL KNOB

$5.99

$

In Stock, Qty 7

0

91

Ariens 20001419

CRANKCASE GASKET KIT(291-306)
(Superseded to 20001279)

$37.99

$

Usually ships in 4-12 days

0

92

Ariens 20001048

VALVE COVER BOLT (SINGLE BOLT)

$7.99

$

Usually ships in 4-12 days

0

94

Note: Ref # Not used on this model

$

$

Not available

97

Ariens 20001548

MUFFLER MANIFOLD SHIELD

$21.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001347

HIGH ALT JET - 291CC L11 CARB

$7.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

$

$

Not available

9999

Ariens 20001103

STARTER SWITCH SCREWS

$9.49

$

In Stock, only 1 left!

0
