08201335 - Ariens AX 208cc 240V Gen II Engine Engine - 08201335 Parts Diagram

AX 208cc 240V Gen II Engine

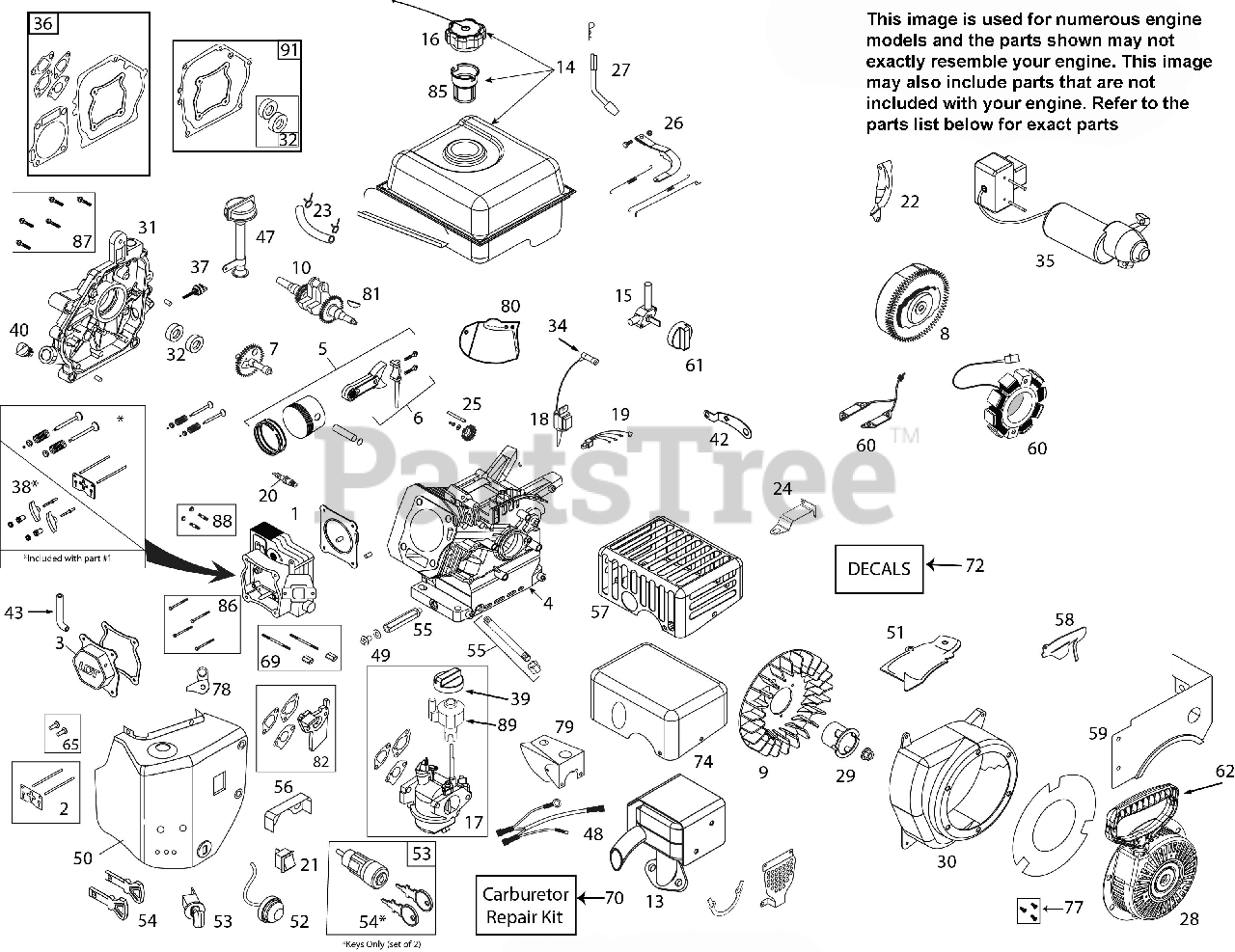

Engine - 08201335 Parts Diagram

  • Title

Not Shown

Ariens 08201335

ENGINE, ARIENS AX208 240V

Note: Complete Replacement Engine

$

$

Currently unavailable

1

Ariens 20001218

CYLINDER HEAD ASSY (W/GASKET)
(Superseded to 20001491)

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 20001219

PUSH ROD & PLATE KIT (W/GASKT)
(Superseded to 20001362)

$

$

Not available

3

Ariens 20001250

VALVE COVER (W/GASKET)
(Superseded to 20001363)

$21.99

$

Usually ships in 4-12 days

0

4

Note: Not Available separate, order replacement engine

$

$

Not available

5

Ariens 20001222

PISTON & ROD ASSEMBLY
(Superseded to 20001492)

$82.99

$

In Stock, only 1 left!

0

6

Note: Not Available separate, included in Ref #5

$

$

Not available

7

Ariens 20001224

CAMSHAFT - MCR
(Superseded to 20001497)

$53.99

$

Usually ships in 4-12 days

0

8

Ariens 20001480

FLYWHEEL - ELECTRIC START

$79.99

$

Usually ships in 4-12 days

0

9

Ariens 20001248

COOLING FAN - FLYWHEEL

$

$

Not available

10

Ariens 20001072

CRANKSHAFT (#18 KEYED)

$94.99

$

Usually ships in 4-12 days

0

13

Ariens 20001016

MUFFLER ASSEMBLY
(Superseded to 20003212)

$149.99

$

Usually ships in 4-12 days

0

14

Ariens 20001026

FUEL TANK ASSY

$68.99

$

In Stock, Qty 12

0

15

Ariens 20001162

FUEL TANK ON/OFF VALVE
(Superseded to 20001436)

$23.99

$

In Stock, Qty 20+

0

16

Ariens 07500112

CAP, FUEL TANK BLACK

$13.99

$

In Stock, Qty 20+

0

17

Ariens 20001368

CARBURETOR (W/GASKETS)

$97.99

$

In Stock, Qty 11

0

18

Ariens 20001042

IGNITION COIL (CDI) (STANDARD)

$42.99

$

In Stock, Qty 20+

0

19

Note: Not used on this engine

$

$

Not available

20

Ariens 20001246

SPARK PLUG, ARIENS AX
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Note: Not used on this engine

$

$

Not available

22

Ariens 20001226

SHIELD - FLYWHEEL (ELECTRIC)

$

$

Not available

23

Ariens 20001253

FUEL HOSE KIT 1/4-230MMW/CLMPS
(Superseded to 20001252)

$5.99

$

In Stock, Qty 18

0

24

Ariens 20001011

SPEED CONTROL BRACKET (FIXED)

$

$

Not available

25

Ariens 20001236

GOVERNOR GEAR ASSEMBLY

$7.99

$

Usually ships in 4-12 days

0

26

Ariens 20001237

GOVERNOR ARM & LNK KIT 3600RPM

$5.99

$

In Stock, Qty 10

0

27

Ariens 20001238

GOVERNOR ARM PADDLE

$

$

Not available

28

Ariens 20001054

RECOIL STARTER ASSY RND-BLACK

$62.99

$

In Stock, Qty 20+

0

29

Ariens 20001056

STARTER CUP RND STYLE STARTER

$

$

Not available

30

Ariens 20001552

$

$

Currently unavailable

31

Ariens 20001241

CRANKCASE COVER ASSY W/GASKET

$65.99

$

Usually ships in 4-12 days

0

32

Ariens 20001247

OIL SEAL KIT(2 PCS 3/4" CRANK)

$13.99

$

In Stock, Qty 6

0

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

$9.49

$

In Stock, only 3 left!

0

35

Ariens 20001037

230V ELECTRIC STARTER
(Superseded to 20001442)

$328.99

$

In Stock, only 1 left!

0

36

Ariens 20001249

ENGINE GASKET KIT

$36.99

$

In Stock, only 1 left!

0

37

Ariens 20001244

SMALL BLACK OIL DIPSTICK

$6.99

$

Usually ships in 4-12 days

0

38

Ariens 20001221

ROCKER ARM KIT (W/GASKET)

$

$

Not available

39

Ariens 20001145

CHOKE CONTROL KNOB (RED)
(Superseded to 20000025)

$4.99

$

In Stock, Qty 20+

0

40

Ariens 20001243

NON-REMOVABLE PLASTIC PLUG

$5.99

$

In Stock, only 1 left!

0

42

Note: Not used on this engine

$

$

Not available

43

Ariens 20001251

BREATHER TUBE

$4.99

$

Usually ships in 4-12 days

0

47

Ariens 20001071

HIGH OIL-FILL TUBE/DIPSTICK

$7.99

$

In Stock, Qty 11

0

48

Ariens 20001485

WIRE HARNESS, W/O ON/OFF SWITCH

$

$

Not available

49

Ariens 20001255

OIL DRAIN PLUG (W/WASHER)

$

$

Not available

50

Ariens 20001486

HEATER BOX, W/O ON/OFF SWITCH

$113.99

$

Usually ships in 4-12 days

0

51

Ariens 20001549

SHIELD - CYLINDER

$12.99

$

Usually ships in 4-12 days

0

52

Ariens 20001023

PRIMER BULB WITH HOSE-SNOW (RED)
(Superseded to 20001472)

$

$

Not available

53

Ariens 20001031

SAFETY KEY SWITCH (W/KEYS) (RED)
(Superseded to 20000026)

$12.99

$

In Stock, Qty 6

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 5

0

55

Ariens 20001177

FRONT OIL DRN PIPE & NUT ASSY

$28.99

$

In Stock, only 4 left!

0

56

Note: Order Ref # 58, all one piece

$

$

Not available

57

Ariens 20001017

CE COMPLIANT MUFFLER SHIELD

$34.99

$

Usually ships in 4-12 days

0

58

Ariens 20001487

GOV AND CARB SHIELD, COMPOSITE

$18.99

$

Usually ships in 4-12 days

0

59

Ariens 20001007

FUEL TANK SKIRT

$

$

Not available

60

Note: Not used on this engine

$

$

Not available

61

Ariens 20001148

FUEL CONTROL KNOB (RED)
(Superseded to 20000024)

$4.99

$

In Stock, Qty 20+

0

65

Ariens 20001220

TAPPET KIT (SET OF 2)

$11.99

$

Usually ships in 4-12 days

0

69

Ariens 20001024

CARBURETOR STUDS & COUPLNG KIT

$9.49

$

In Stock, Qty 9

0

70

Ariens 20001441

CARBURETOR REPAIR KIT

$28.99

$

In Stock, Qty 17

0

72

Ariens 20001658

$

$

Currently unavailable

74

Ariens 20001019

MUFFLER HEAT SHIELD COVER

$18.99

$

Usually ships in 4-12 days

0

77

Ariens 20001186

RECOIL BOLT KIT

$4.99

$

In Stock, Qty 6

0

78

Ariens 20001079

BREATHER TUBE BRACKET

$

$

Not available

79

Note: Order Ref # 58, all one piece

$

$

Not available

80

Note: Order Ref # 58, all one piece

$

$

Not available

81

Ariens 20001333

WOODRUFF FLYWHEEL KEY 5-PACK

$5.99

$

In Stock, only 2 left!

0

82

Ariens 20001330

CARBURETOR SPACER

$5.99

$

In Stock, Qty 9

0

85

Ariens 20001342

FUEL TANK STRAINER

$4.99

$

In Stock, Qty 8

0

86

Ariens 20001654

$

$

Currently unavailable

87

Ariens 20001354

CC COVER BLT KIT 179-208-254CC

$6.99

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

$7.99

$

In Stock, only 1 left!

0

89

Note: Not used on this engine

$

$

Not available

91

Ariens 20001417

CRANKCASE GASKET KIT 208GEN1&2

$24.99

$

Usually ships in 4-12 days

0

97

Ariens 20001547

MUFFLER MANIFOLD SHIELD

$20.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001345

HIGH ALT JET-208CC L10-1 CARB

$11.99

$

In Stock, only 1 left!

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

Note: Used on Ref # 50, 57, 59, 74

$

$

Not available

9999

Ariens 20001103

STARTER SWITCH SCREWS

Note: Used on Ref # 35

$9.49

$

In Stock, only 3 left!

0

9999

Ariens 20001542

M6X30 ELEC STARTER MNTG BOLTS

Note: Used on Ref # 35

$12.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001543

CLIPS, CARB THROTTLE LINKAGE

Note: Used on Ref # 17

$

$

Not available

9999

Ariens 00091000

BOTTLE 16 OZ 5W-30 OIL

Note: Engine Oil

$10.99

$

In Stock, Qty 7

0
