08201332 - Gravely 764 Replacement Engine Crankcase Cover Parts Diagram

764 Replacement Engine

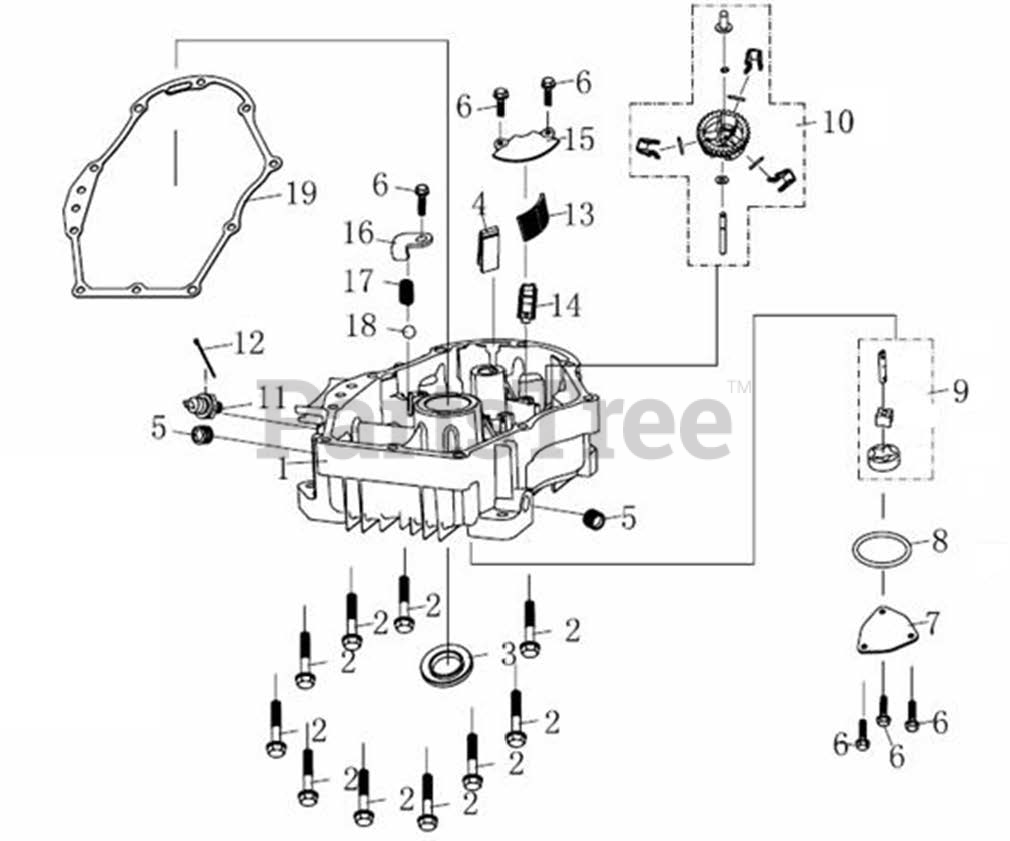

Crankcase Cover Parts Diagram

  • Title

1

Gravely 21110465

CRANKCASE COVER

$119.99

$

Usually ships in 4-12 days

0

2

Gravely 21110542

HEXAGON BOLT WITH FLANGE

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 21110561

OIL SEAL

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 21110499

ENGINE OIL RETURN BLOCK

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 21110462

SEALING PLUG SCREW

$

$

Not available

6

Gravely 21100134

BOLT, FLANGE

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 21110496

OIL PUMP COVER

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 21110567

SEAL RING

$4.49

$

Usually ships in 4-12 days

0

9

Gravely 21110495

COMPONENTS OF OIL PUMP

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 21110520

COMPONENTS OF GOVERNOR GEAR

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 21110537

OIL LEVEL ALARM

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 21110569

STRAP

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 21110497

ENGINE OIL STRAINER

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 21110474

PRESSING PLATE FOR OIL GROOVE

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 21110498

COVER,OIL STRAINER

$7.49

$

Usually ships in 4-12 days

0

16

Gravely 21110475

PRESSING PLATE FOR OIL GROOVE

$

$

Not available

17

Gravely 21110571

COMPRESSION SPRING

$

$

Not available

18

Gravely 21110558

STEEL BALL

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 21110466

CRANKCASE COVER GASKET

$16.99

$

Usually ships in 4-12 days

0
