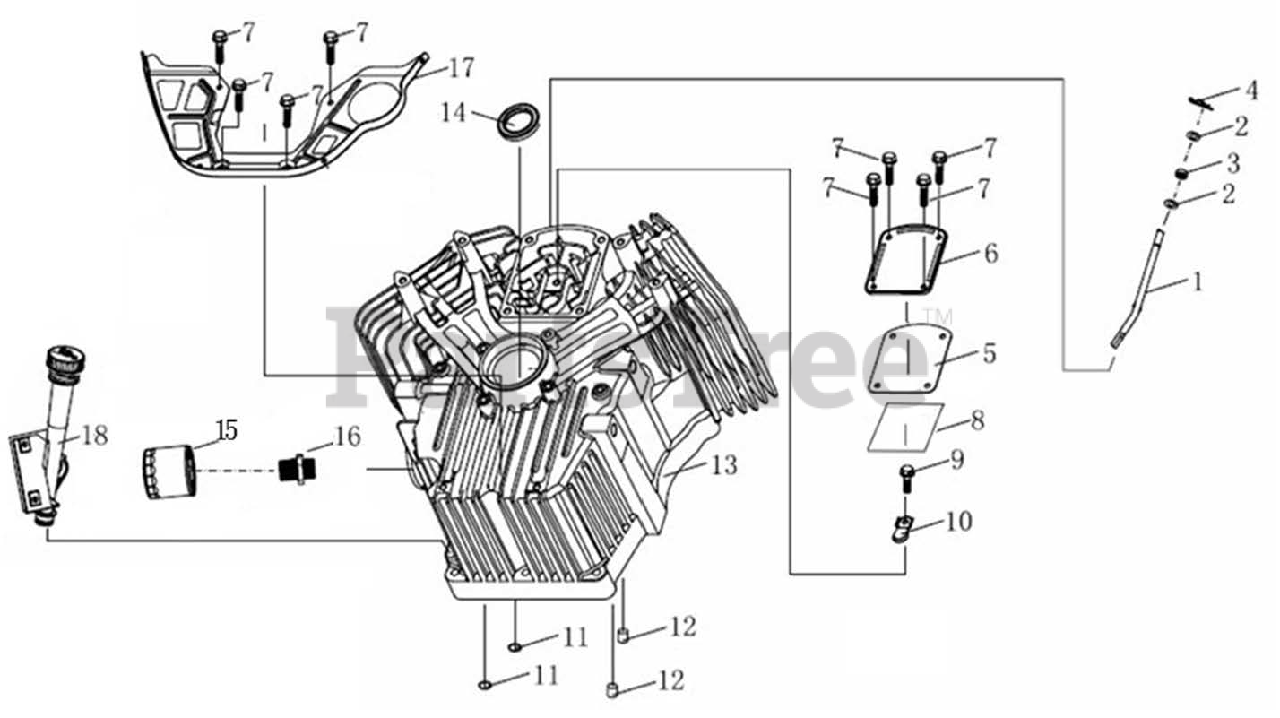

08201332 - Gravely 764 Replacement Engine Crankcase Parts Diagram

764 Replacement Engine

Crankcase Parts Diagram

  • Title

1

Gravely 21110517

SPEED REGULATING ARM

$4.49

$

Usually ships in 4-12 days

0

2

Gravely 21110552

FLAT WASHER

$

$

Not available

3

Gravely 21110560

OIL SEAL

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 21100154

PIN, LOCK

$

$

Not available

5

Gravely 21110468

PACKING, BREATHER CHAMBER

$8.49

$

Usually ships in 4-12 days

0

6

Gravely 21110467

CAP,BREATHER CHAMBER

$7.49

$

Usually ships in 4-12 days

0

7

Gravely 21100134

BOLT, FLANGE

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 21110522

FILTER BLOCK

$4.49

$

Usually ships in 4-12 days

0

9

Gravely 21100147

BOLT, FLANGE

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 21110485

LEAF VALVE

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 21110566

SEAL RING

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 21110556

LOCATION PIN

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 21110464

CRANKCASE BODY

$180.99

$

Usually ships in 4-12 days

0

14

Gravely 21110559

OIL SEAL

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 21567200

FILTER, OIL LONCIN

$17.99

$

In Stock, Qty 20+

0

16

Gravely 21110501

OIL FILTER MOUNTING BOLTS

$7.49

$

In Stock, only 1 left!

0

17

Gravely 21110505

SIDE PLATE

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 21110463

OIL RULE COMBINATION

$6.99

$

Usually ships in 4-12 days

0
