08201219 - Gravely MX775v EFI Engine Crankcase Parts Diagram

MX775v EFI Engine

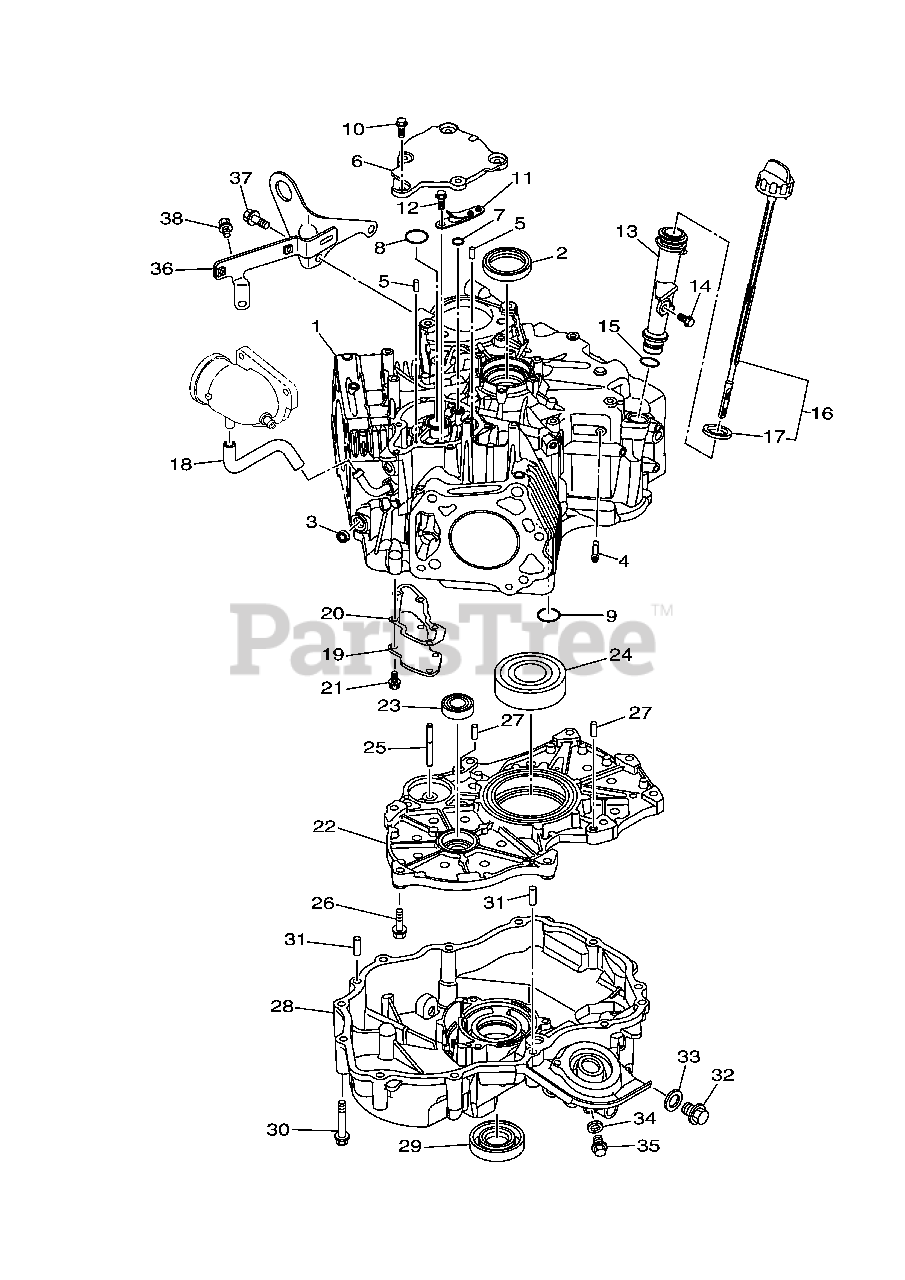

Crankcase Parts Diagram

  • Title
1

Gravely 21563206

CRANKCASE ASSY 1

$1027.99

$

Usually ships in 4-12 days

0

2

Gravely 21563031

OIL SEAL

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 21563032

OIL SEAL

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 21563197

PIPE, JOINT

$10.99

$

Usually ships in 4-12 days

0

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 21563212

COVER, AIR CLEANER

$

$

Not available

7

$5.99

$

Usually ships in 4-12 days

0

8

$

$

Not available

9

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 21563058

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 21563177

REED VALVE ASSY

$

$

Not available

12

Gravely 21563057

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 21563207

PIPE, OIL

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 21563056

BOLT, FLANGE

$4.49

$

Usually ships in 4-12 days

0

15

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 21563209

GAUGE, LEVEL

$20.99

$

Usually ships in 4-12 days

0

17

$

$

Not available

18

Gravely 21563208

HOSE, BREATHER 1

$12.99

$

Usually ships in 4-12 days

0

19

$

$

Not available

20

Gravely 21563210

GASKET, BREATHER

$

$

Not available

21

Gravely 21563058

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 21563211

COVER, CRANKCASE 1

$216.99

$

Usually ships in 4-12 days

0

23

$

$

Not available

24

$116.99

$

Usually ships in 4-12 days

0

25

Gravely 21563116

SHAFT, FLYWEIGHT

$

$

Not available

26

Gravely 21563051

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 21563067

PIN, DOWEL

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 21563213

COVER, CRANKCASE 2

$455.99

$

Usually ships in 4-12 days

0

29

Gravely 21563030

OIL SEAL

$28.99

$

In Stock, only 1 left!

0

30

Gravely 21563052

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 21563067

PIN, DOWEL

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 21563013

PLUG, STRAIGHT SCREW

$6.49

$

Usually ships in 4-12 days

0

33

$4.49

$

Usually ships in 4-12 days

0

34

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 21563002

BOLT, FLANGE

$6.49

$

Usually ships in 4-12 days

0

36

Gravely 21563091

HANGER, ENGINE 2

$

$

Not available

37

Gravely 21563061

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 21563042

BOLT, FLANGE
(Superseded to 21563055)

$3.99

$

Usually ships in 4-12 days

0
