08200605 - Ariens Sno-Tek 208cc Engine 08200605 Engine Parts Diagram

Sno-Tek 208cc Engine

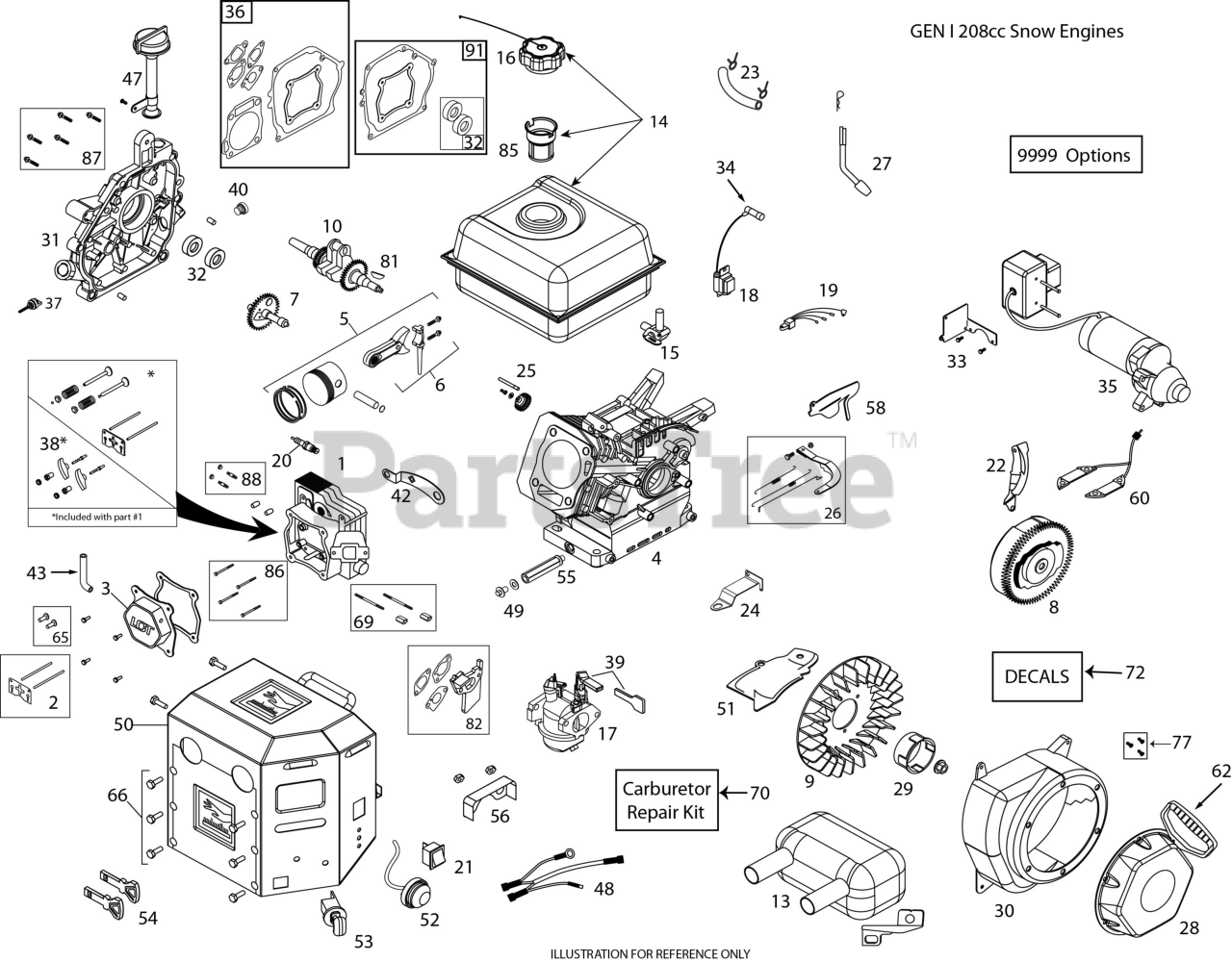

08200605 Engine Parts Diagram

  • Title

Not Shown

Ariens 08200605

ENGINE,LCT STORMFORCE 208 120V

Note: Complete Engine Replacment

$

$

Not available

1

Ariens 20001218

CYLINDER HEAD ASSY (W/GASKET)
(Superseded to 20001491)

Note: Includes Gasket

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 20001219

PUSH ROD & PLATE KIT (W/GASKT)
(Superseded to 20001362)

Note: Includes Valve Cover Gasket

$

$

Not available

3

Ariens 20001250

VALVE COVER (W/GASKET)
(Superseded to 20001363)

Note: Includes Gasket

$21.99

$

Usually ships in 4-12 days

0

5

Ariens 20001222

PISTON & ROD ASSEMBLY
(Superseded to 20001492)

$82.99

$

In Stock, only 1 left!

0

6

Ariens 20001223

CONNECTING ROD ASSEMBLY
(Superseded to 20001492)

$82.99

$

In Stock, only 1 left!

0

7

Ariens 20001224

CAMSHAFT - MCR
(Superseded to 20001497)

$53.99

$

Usually ships in 4-12 days

0

8

Ariens 20001035

FLYWHEEL - ELECTRIC START
(Superseded to 20001480)

Note: 2- Charging Magnets

$79.99

$

Usually ships in 4-12 days

0

9

Ariens 20001248

COOLING FAN - FLYWHEEL

Note: Plastic

$

$

Not available

10

Ariens 20001072

CRANKSHAFT (#18 KEYED)

$94.99

$

Usually ships in 4-12 days

0

13

Ariens 20001015

MUFFLER ASSEMBLY

$36.99

$

Usually ships in 4-12 days

0

14

FUEL TANK (NO LONGER AVAILABILE)

$

$

Not available

15

Ariens 20001230

FUEL TANK ON/OFF VALVE (1/4")

$

$

Not available

16

Ariens 07500112

CAP, FUEL TANK (BLACK)

$13.99

$

In Stock, Qty 13

0

17

Ariens 20001367

CARBURETOR (W/GASKETS)

$68.99

$

In Stock, only 2 left!

0

18

Ariens 20001232

IGNITION COIL ASSY COIL & CDI
(Superseded to 20001505)

$51.99

$

Usually ships in 4-12 days

0

19

Ariens 20001034

CDI MODULE - BLACK BOX

Note: Used on 2-piece Ignition System

$

$

Not available

20

Ariens 20001246

SPARK PLUG, ARIENS AX
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Ariens 20001033

ON/OFF SWITCH - ROCKER (RED)

$11.99

$

In Stock, only 2 left!

0

22

Ariens 20001059

SHIELD - FLYWHEEL ELECT START

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 20001252

FUEL HOSE KIT 1/4-318MM

$5.99

$

In Stock, Qty 13

0

24

Ariens 20001011

SPEED CONTROL BRACKET (FIXED)

$

$

Not available

25

Ariens 20001236

GOVERNOR GEAR ASSEMBLY

$7.99

$

Usually ships in 4-12 days

0

26

Ariens 20001237

GOVERNOR ARM & LNK KIT 3600RPM

$5.99

$

In Stock, Qty 10

0

27

Ariens 20001238

GOVERNOR ARM PADDLE

$

$

Not available

28

Ariens 20001053

RECOIL STARTER ASSY HEX-BLACK

$

$

Not available

29

Ariens 20001055

STARTER CUP HEX STYLE STARTER

$10.99

$

Usually ships in 4-12 days

0

30

Ariens 20001057

BLOWER HOUSING (W/WELDNUT)

$25.99

$

Usually ships in 4-12 days

0

31

Ariens 20001240

CRANKCASE COVER ASSY W/GASKET

$85.99

$

Usually ships in 4-12 days

0

32

Ariens 20001247

OIL SEAL KIT(2 PCS 3/4" CRANK)

$13.99

$

In Stock, Qty 6

0

33

Ariens 20001060

ELECT START SWITCHBOX BRACKET

$6.99

$

Usually ships in 4-12 days

0

34

Ariens 20001245

SPARK PLUG

$11.99

$

Usually ships in 4-12 days

0

35

Ariens 20001030

120V ELECTRIC STARTER
(Superseded to 20001045)

Note: Side Mount

$187.99

$

Usually ships in 4-12 days

0

35

Ariens 20001029

120V ELECTRIC STARTER

Note: Mounting bolts under

$268.99

$

Usually ships in 4-12 days

0

36

Ariens 20001249

ENGINE GASKET KIT

$36.99

$

Usually ships in 4-12 days

0

37

Ariens 20001244

SMALL BLACK OIL DIPSTICK

Note: Plastic

$6.99

$

In Stock, only 1 left!

0

38

Ariens 20001221

ROCKER ARM KIT (W/GASKET)

Note: Includes Gasket

$

$

Not available

39

Ariens 20001050

CHOKE LEVER/CHOKE HANDLE (RED)

$12.99

$

In Stock, only 2 left!

0

40

Ariens 20001243

NON-REMOVABLE PLASTIC PLUG

$5.99

$

Usually ships in 4-12 days

0

42

Ariens 20001032

CDI BOX MTG BRACKET

$

$

Not available

43

Ariens 20001251

BREATHER TUBE

$4.99

$

In Stock, only 1 left!

0

47

Ariens 20001242

HIGH OIL-FILL TUBE/DIPSTICK

$6.99

$

In Stock, only 4 left!

0

48

Ariens 20001013

WIRE HARNESS
(Superseded to 20001141)

$

$

Not available

49

Ariens 20001255

OIL DRAIN PLUG (W/WASHER)

$

$

Not available

50

Ariens 20001004

HEATER BOX KIT

$94.99

$

Usually ships in 4-12 days

0

51

Ariens 20001062

SHIELD - CYLINDER
(Superseded to 20003208)

$

$

Not available

52

Ariens 20001023

PRIMER BULB WITH HOSE-SNOW (RED)
(Superseded to 20001472)

$

$

Not available

53

Ariens 20001031

SAFETY KEY SWITCH (W/KEYS) (RED)
(Superseded to 20000026)

$12.99

$

In Stock, Qty 6

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 12

0

55

Ariens 20001068

OIL DRAIN TUBE

$

$

Not available

56

Ariens 20001012

CARBURETOR VAPOR SHIELD

$6.99

$

Usually ships in 4-12 days

0

58

Ariens 20001051

SHIELD - GOVERNOR LINKAGE

$6.99

$

Usually ships in 4-12 days

0

60

Ariens 20001070

CHARGING COIL (6-WATT AC)

$32.99

$

Usually ships in 4-12 days

0

62

Ariens 20001058

STARTER GRIP
(Superseded to 20001064)

$12.99

$

In Stock, only 2 left!

0

65

Ariens 20001220

TAPPET KIT (SET OF 2)

$11.99

$

Usually ships in 4-12 days

0

66

Ariens 20001005

BOLT KIT - HEATER BOX

$

$

Not available

69

Ariens 20001024

CARBURETOR STUDS & COUPLNG KIT

$9.49

$

In Stock, Qty 9

0

70

Ariens 20001184

CARBURETOR REPAIR KIT
(Superseded to 20001441)

$28.99

$

In Stock, Qty 12

0

72

Note: Not used on this Engine

$

$

Not available

77

Ariens 20001186

RECOIL BOLT KIT

Note: 3 Bolts per Kit

$4.99

$

In Stock, Qty 6

0

81

Ariens 20001333

WOODRUFF FLYWHEEL KEY 5-PACK

Note: 5x6x18mm

$5.99

$

In Stock, only 2 left!

0

82

Ariens 20001330

CARBURETOR SPACER

$5.99

$

In Stock, Qty 8

0

85

Ariens 20001342

FUEL TANK STRAINER

$4.99

$

In Stock, Qty 5

0

86

Ariens 20001358

HEAD BLT KIT 136-179-208-254CC

$

$

Not available

87

Ariens 20001354

CC COVER BLT KIT 179-208-254CC

$6.99

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

$7.99

$

In Stock, only 1 left!

0

91

Ariens 20001417

CRANKCASE GASKET KIT 208GEN1&2

$24.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001345

HIGH ALT JET-208CC L10-1 CARB

Note: >6000 Feet

$11.99

$

In Stock, only 1 left!

0

9999

Ariens 20001103

STARTER SWITCH SCREWS

Note: Not shown, Used On Item #35

$9.49

$

In Stock, only 1 left!

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

Note: Not Shown, Used On Item #50, 57, 74

$

$

Not available

9999

Ariens 20001542

M6X30 ELEC STARTER MNTG BOLTS

Note: Not shown, Used On Item #35

$12.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001543

CLIPS, CARB THROTTLE LINKAGE

Note: Not Shown, Used On Item #17

$

$

Not available

9999

Ariens 00067600

OIL, ARIENS 5W30 32 OUNCE, SYNTHETIC BLEND
(Superseded to 70706800)

Note: Engine Oil Approximately 16 oz

$

$

Not available
