080087-00 - Briggs & Stratton 130kW Home Standby Generator Vaporizer Group Parts Diagram

130kW Home Standby Generator

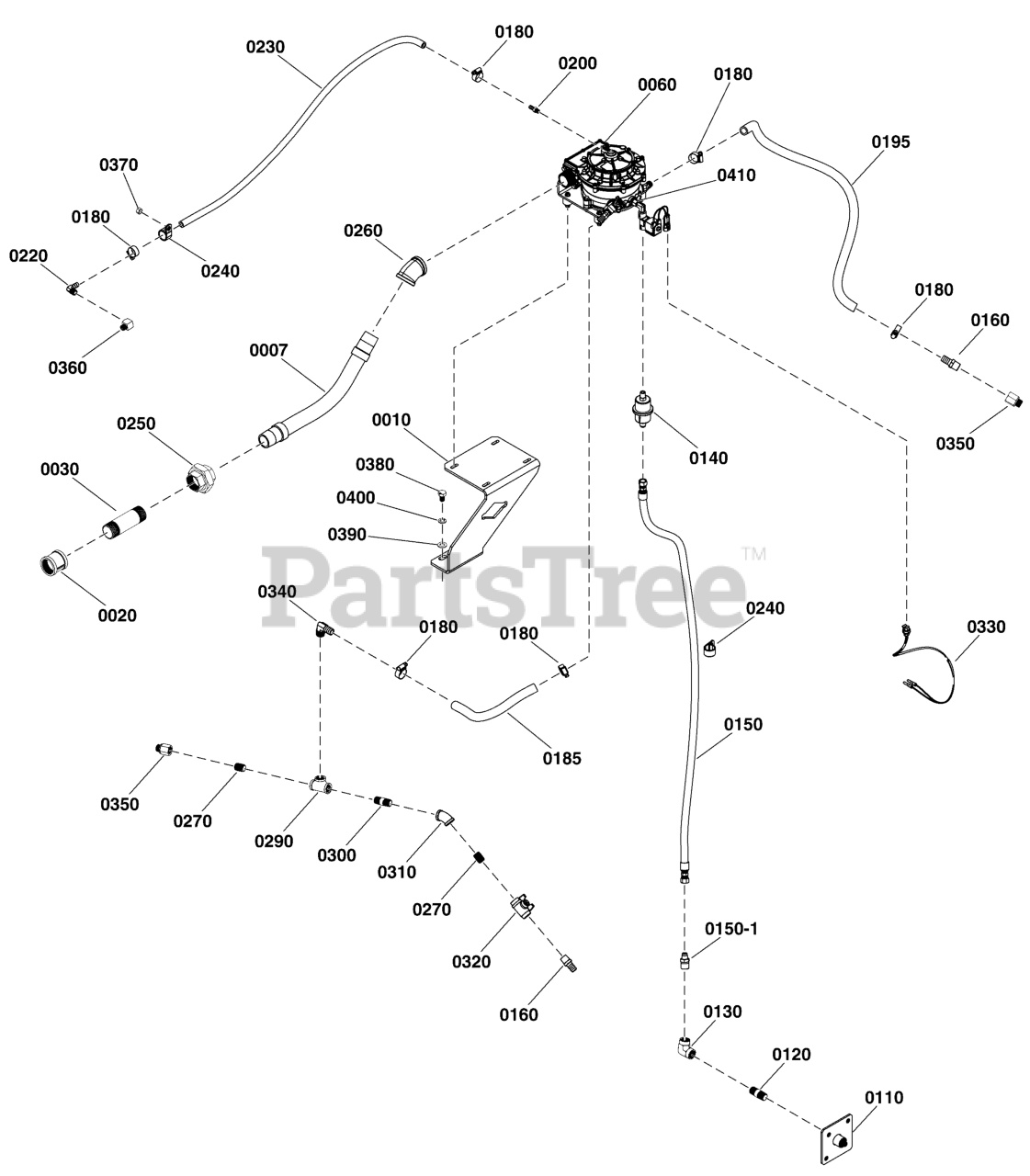

Vaporizer Group Parts Diagram

  • Title

0007

Briggs & Stratton 80027010

HOSE, Fuel, 1-1/4" NPT X 18"

$

$

Currently unavailable

0010

BRACKET, Mounting

$

$

Not available

0020

FITTING, Coupling, 1-1/4 NPT

Note: (*See footnote)

$

$

Not available

0030

FITTING, Nipple, 1-1/4 NPT x 5 Inch

Note: (*See footnote)

$

$

Not available

0060

Briggs & Stratton 771813

VAPORIZER

$3653.99

$

Usually ships in 2-12 days

0

0110

COUPLING, 1/2" NPTF, Fuel, LCG

Note: (*See footnote)

$

$

Not available

0120

FITTING, Nipple, 1/2" NPTF x 2"

Note: (*See footnote)

$

$

Not available

0130

FITTING, Elbow, 1/2" NPTF x 90 Degree

Note: (*See footnote)

$

$

Not available

0140

Briggs & Stratton 771740

FILTER, LP Fuel

$70.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 771975

HOSE, Fuel Assembly, 60", LP

Note: (Incl. Ref. No. 0150-1)

$295.99

$

Usually ships in 2-12 days

0

0150-1

FITTING, Adapter, Straight, 3/8 Flare X 1/2 NPTF

$

$

Not available

0160

HOSE, Barb, 5/8" BARB, 1/2" MNPT

Note: (*See footnote)

$

$

Not available

0180

Briggs & Stratton 771739

CLAMP, Hose

$22.99

$

Usually ships in 2-12 days

0

0185

HOSE, Water, 5/8" ID x 16" (SAE 20R3)

Note: (*See footnote)

$

$

Not available

0195

HOSE, Water 5/8" ID x 38" (SAE 20R3)

Note: (*See footnote)

$

$

Not available

0200

NIPPLE, Hose, 3/8" x 1/8" NPT

Note: (*See footnote)

$

$

Not available

0220

FITTING, Elbow, 1/4" NPT x 3/8" Barb

Note: (*See footnote)

$

$

Not available

0230

HOSE, Breather, 3/8" ID x 26" (SAE J30R7)

Note: (**See footnote)

$

$

Not available

0240

Briggs & Stratton 80026155

P-CLAMP, Hose, 1" Vinyl Coated

$

$

Currently unavailable

0250

FITTING, Union, 1-1/4 NPT

Note: (*See footnote)

$

$

Not available

0260

FITTING, Elbow, 1-1/4 x 45

Note: (*See footnote)

$

$

Not available

0270

FITTING, Nipple, 1/2 NPT X 1-1/8

Note: (*See footnote)

$

$

Not available

0290

FITTING, Tee, Female, 1/2 NPT

Note: (*See footnote)

$

$

Not available

0300

FITTING, Nipple, 1/2 NPT X 2"

Note: (*See footnote)

$

$

Not available

0310

FITTING, Elbow, 1/2 NPT X 45 Degree

Note: (*See footnote)

$

$

Not available

0320

VALVE, Ball, 1/2 NPT, T-Handle, Brass

Note: (*See footnote)

$

$

Not available

0330

Briggs & Stratton 771974

HARNESS, Fuel Pilot Solenoid, LP, LCP

$34.99

$

Usually ships in 2-12 days

0

0340

FITTING, Elbow, 90 Degree, 1/4 NPT X 3/8 Barb, Brass

Note: (*See footnote)

$

$

Not available

0350

Briggs & Stratton 80027006

FITTING, Adapter, 1/2" NPTF Female X M16 X 1.5

Note: (*See footnote)

$

$

Currently unavailable

0360

Briggs & Stratton 80026979

FITTING, Elbow, 90 Degree, 1/4 NPT

Note: (*See footnote)

$

$

Currently unavailable

0370

Briggs & Stratton 22241GP

NUT, 3/8-16

$

$

Currently unavailable

0380

Briggs & Stratton 80080148

SCREW, M12-1.5 X 20

Note: (*See footnote)

$

$

Currently unavailable

0390

Briggs & Stratton 49808GS

WASHER

$3.99

$

In Stock, only 2 left!

0

0400

Briggs & Stratton 197489GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 80027011

FITTING, Adapter, Female to Male, 1/4" NPT

Note: (*See footnote)

$

$

Currently unavailable
