080087-00 - Briggs & Stratton 130kW Home Standby Generator Engine Service Parts - Serpentine Drive Parts Diagram

130kW Home Standby Generator

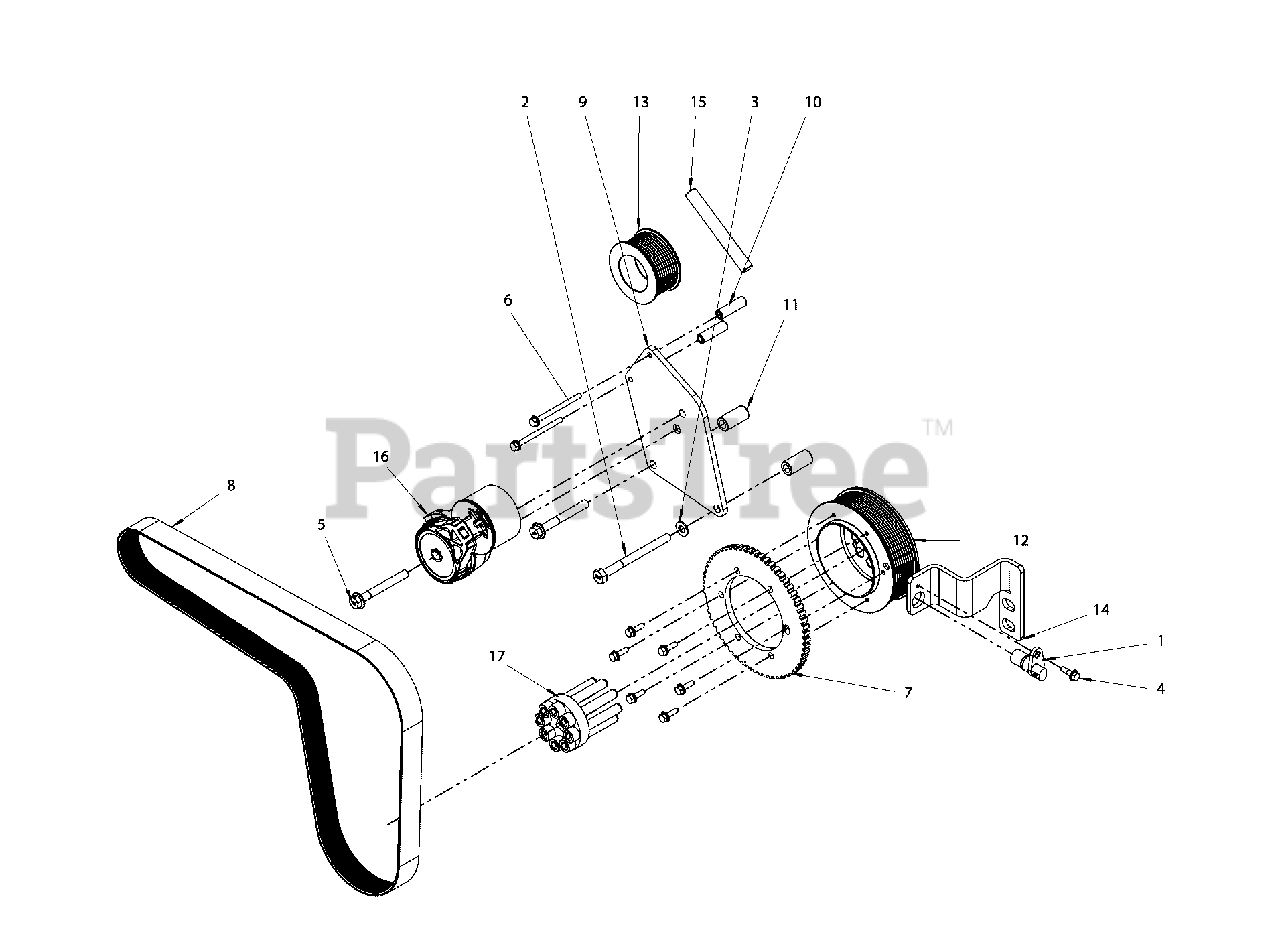

Engine Service Parts - Serpentine Drive Parts Diagram

  • Title

1

Briggs & Stratton 770998

SPEED SENSOR

$144.99

$

Usually ships in 2-12 days

0

2

* BOLT

$

$

Not available

3

* WASHER

$

$

Not available

4

* BOLT

$

$

Not available

5

* BOLT

$

$

Not available

6

* BOLT

$

$

Not available

7

* TIMING WHEEL

$

$

Not available

8

Briggs & Stratton 770999

BELT

$152.99

$

Usually ships in 2-12 days

0

9

* TENSIONER MOUNT

$

$

Not available

10

* SPACER

$

$

Not available

11

* SPACER

$

$

Not available

12

Briggs & Stratton 80024418

CRANK PULLEY

$538.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 80024419

ALTERNATOR PULLEY

$145.99

$

Usually ships in 2-12 days

0

14

* BRACKET

$

$

Not available

15

* SLEEVE

$

$

Not available

16

Briggs & Stratton 80024420

TENSIONER

$381.99

$

Usually ships in 2-12 days

0

17

* SQUARE DRIVE

$

$

Not available

--

* SCREW

Note: (Not Illustrated)

$

$

Not available
