080084-00 - Briggs & Stratton 80kW Home Standby Generator Circuit Protection Group Parts Diagram

80kW Home Standby Generator

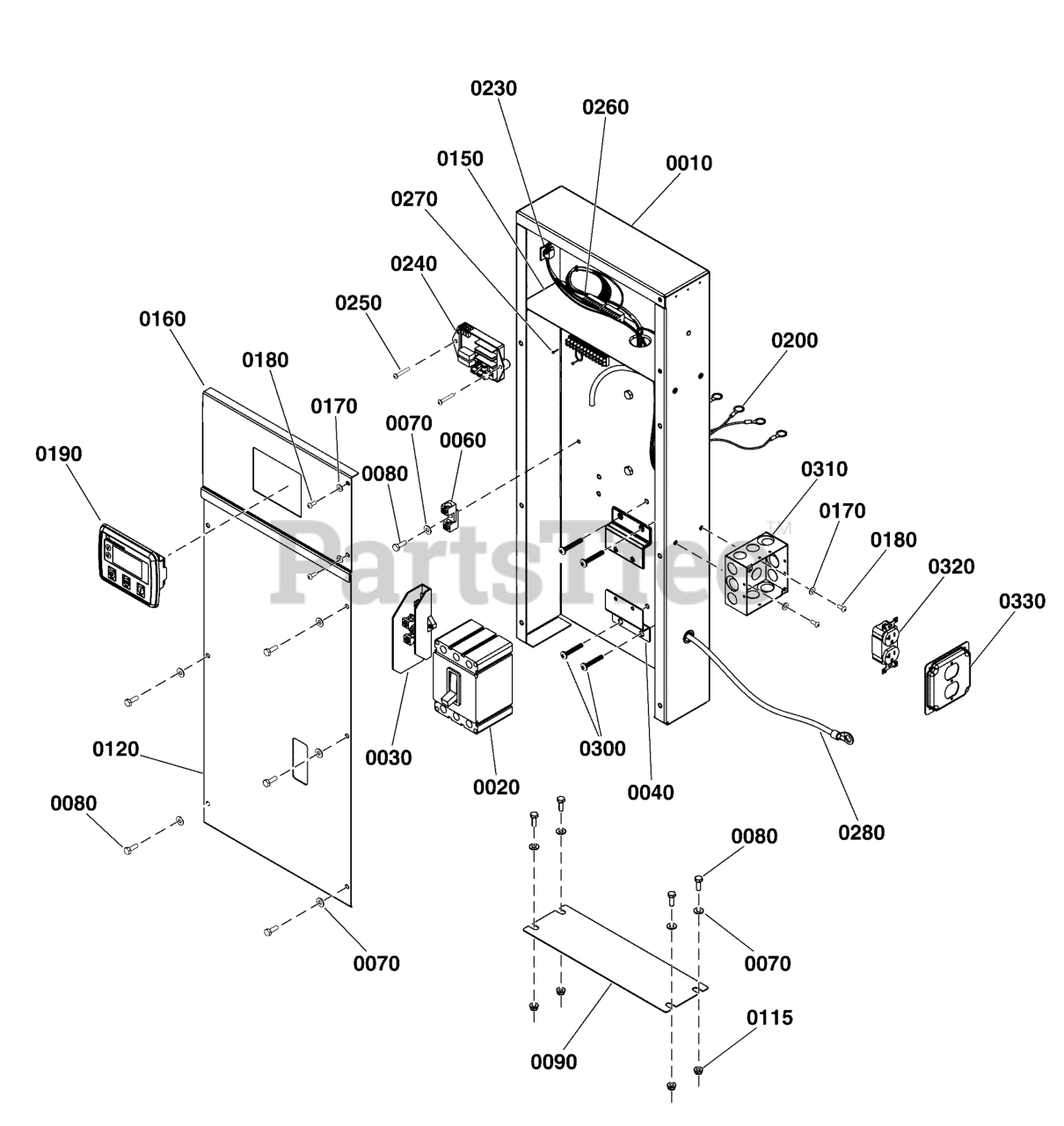

Circuit Protection Group Parts Diagram

  • Title

0010

BOX, Control Panel

Note: (*See footnote)

$

$

Not available

0020

Briggs & Stratton 80022406

CIRCUIT BREAKER, 100 Amp

$461.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 80024335

NEUTRAL ASSEMBLY

$190.99

$

Usually ships in 2-12 days

0

0040

BRACKET, Mounting

Note: (*See footnote)

$

$

Not available

0060

LUG, Ground 2/0-14 AWG

Note: (*See footnote)

$

$

Not available

0070

WASHER, 1/4, SS

Note: (**See footnote)

$

$

Not available

0080

HHCS, 1/4-20 X 3/4 SS

Note: (**See footnote)

$

$

Not available

0090

COVER, Control Box

Note: (*See footnote)

$

$

Not available

0115

Briggs & Stratton 194005GS

Nut, 1/4 - 20, Flange, Nylok

$2.99

$

Usually ships in 2-12 days

0

0120

COVER, Control Box

Note: (*See footnote)

$

$

Not available

0150

PANEL, Divider

Note: (*See footnote)

$

$

Not available

0160

COVER, Controller

Note: (*See footnote)

$

$

Not available

0170

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 36701GS

SCREW, 10-32 X 1/2, PPHMS

$2.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 772310

CONTROLLER

$521.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 772309

HARNESS, Voltage Sensing

$

$

Currently unavailable

0210

Briggs & Stratton 772311

HARNESS, PSI NG

Note: (Not Illustrated)

$

$

Currently unavailable

0230

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 772312

REGULATOR, Voltage

$

$

Currently unavailable

0250

Briggs & Stratton 36939GS

PPHMS, 10-32 X 1-1/4

$2.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 772314

HARNESS, Customer Connection

$

$

Currently unavailable

0270

Briggs & Stratton 314691GS

SCREW, Taptite, M2.5-.45 X 12

$3.99

$

In Stock, only 3 left!

0

0280

Briggs & Stratton 772313

CABLE, Ground

$

$

Currently unavailable

0300

SCREW, 1/4-20 X 1.5

Note: (**See footnote)

$

$

Not available

0310

BOX, Electrical, 4 X 4 X 2-1/8

Note: (*See footnote)

$

$

Not available

0320

RECEPTACLE

Note: (*See footnote)

$

$

Not available

0330

COVER, Electrical Box

Note: (*See footnote)

$

$

Not available
