080029-00 - Briggs & Stratton 200kW Home Standby Generator Engine Service Parts - Serpentine Drive Retro Fit Parts Diagram

200kW Home Standby Generator

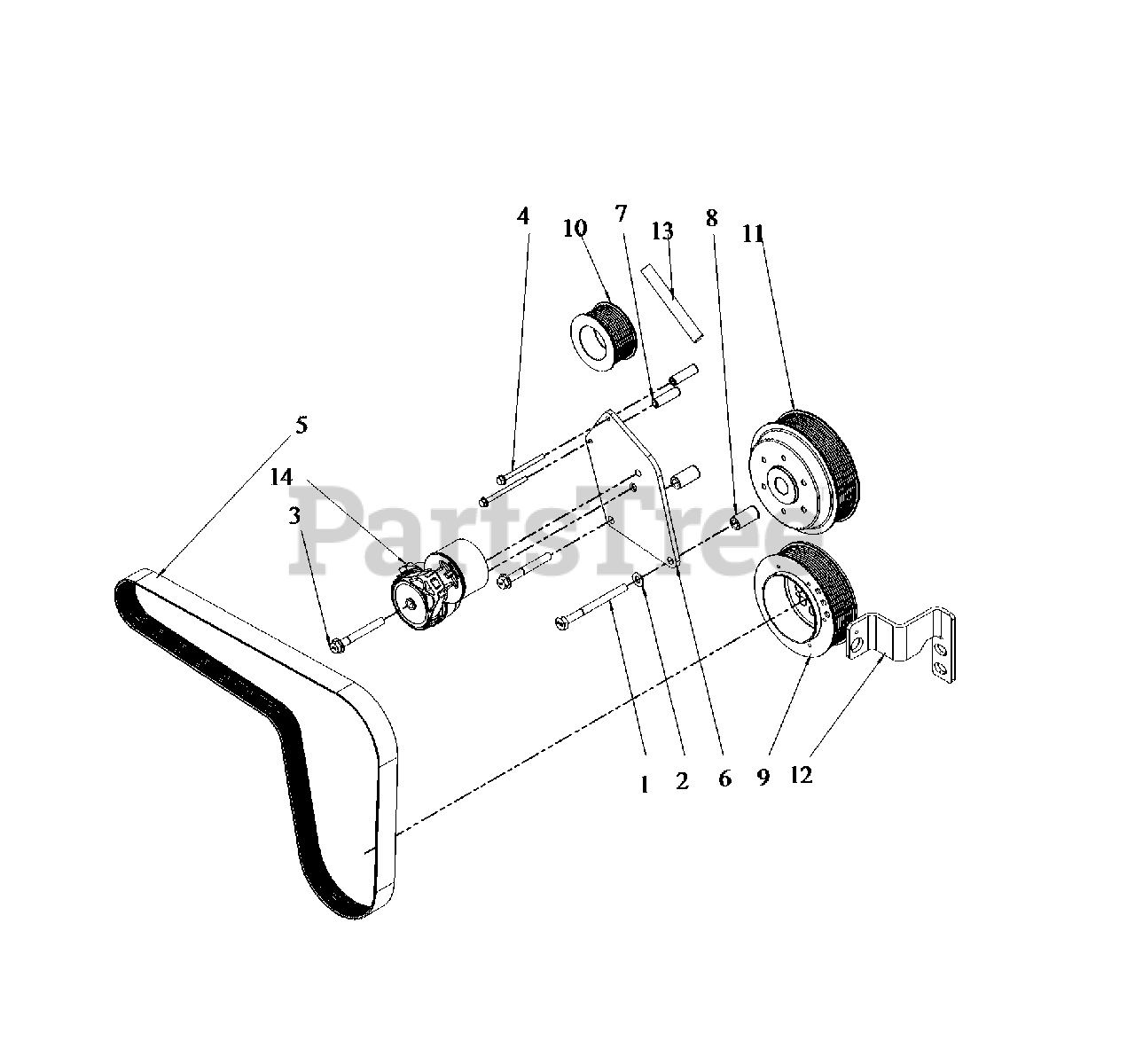

Engine Service Parts - Serpentine Drive Retro Fit Parts Diagram

  • Title

--

* COMPLETE KIT

Note: (Includes items 1-14)

$

$

Not available

1

* BOLT

$

$

Not available

2

* WASHER, FLAT

$

$

Not available

3

* BOLT, FLANGE

$

$

Not available

4

* BOLT, FLANGE

$

$

Not available

5

Briggs & Stratton 770999

BELT, DRIVE

$152.99

$

Usually ships in 2-12 days

0

6

* MOUNT, TENSIONER

$

$

Not available

7

* SPACER, TENSIONER MOUNT

$

$

Not available

8

* SPACER, TENSIONER MOUNT

$

$

Not available

9

Briggs & Stratton 80024418

PULLEY, CRANK

$538.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 80024419

PULLEY, ALTERNATOR

$145.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 80024421

PULLEY, FAN

$429.99

$

Usually ships in 2-12 days

0

12

* BRACKET, CRANK SENSOR

$

$

Not available

13

* SLEEVE, ALTERNATOR SPACER

$

$

Not available

14

* TENSIONER, PULLEY

$

$

Not available
