080029-00 - Briggs & Stratton 200kW Home Standby Generator Enclosure Group Parts Diagram

200kW Home Standby Generator

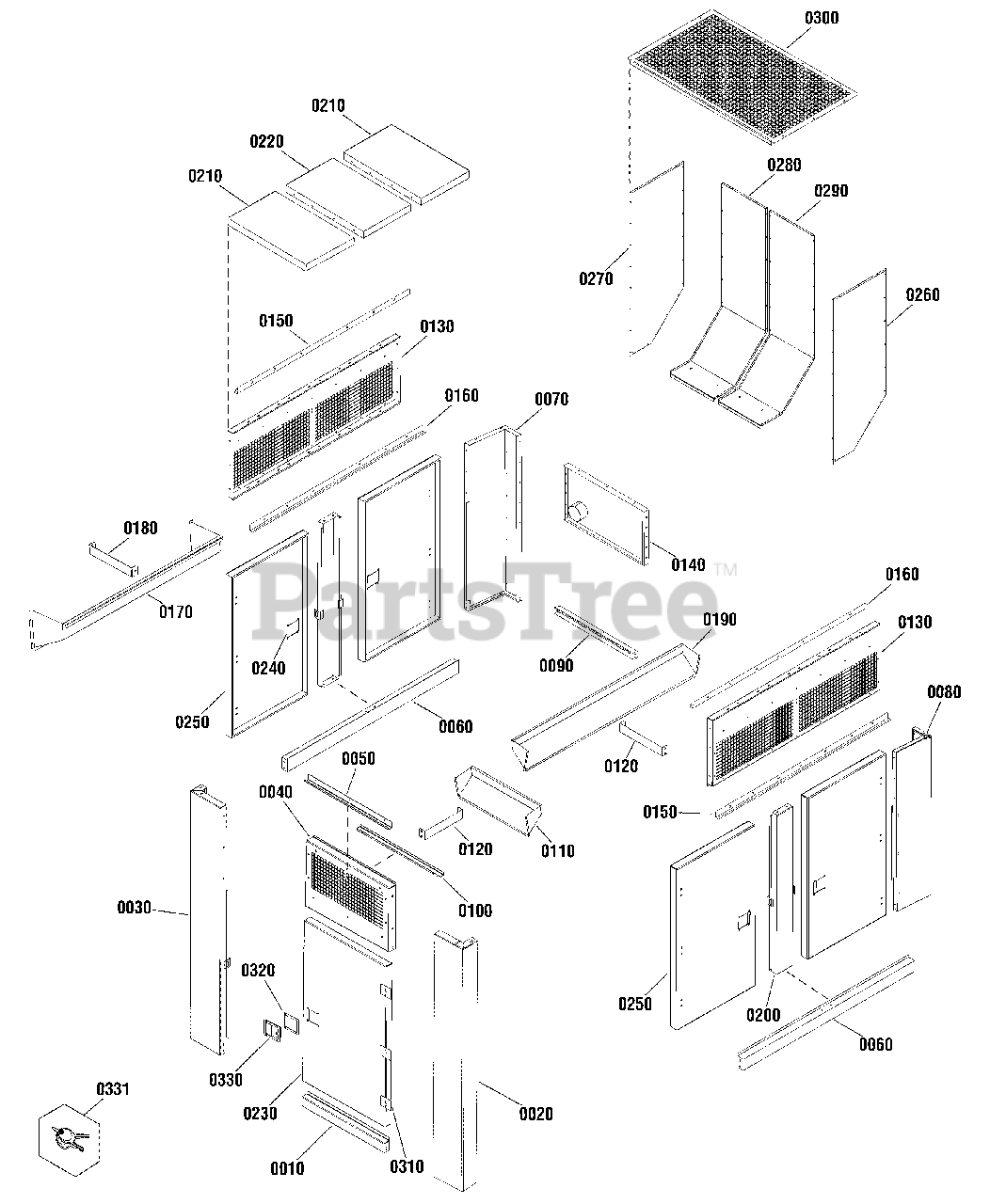

Enclosure Group Parts Diagram

  • Title
0010

Briggs & Stratton 80028498

SILL, Door, w/Insulation

$715.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 80028492

CORNER, Enclosure, Right, w/Insulation

$1895.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 80028493

CORNER, Enclosure, Left, w/Insulation

$2001.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 80028497

PANEL, Enclosure, w/Insulation

$1108.99

$

Usually ships in 2-12 days

0

0050

$405.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 80028499

SILL, Door, w/Insulation

$745.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 80028494

CORNER, Enclosure, Left, w/Insulation

$1859.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 80028495

CORNER, Enclosure, Right, w/Insulation

$1859.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 80024236

SILL, Radiator End

$405.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 80024225

SILL, Alternator End

$405.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 80024226

BAFFLE, Enclosure

$618.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 80024184

SUPPORT, BAFFLE

$189.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 80028503

PANEL, Intake Side, w/Insulation

$2460.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 80028496

PANEL, Enclosure, w/Insulation

$1410.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 80024241

SILL, Enclosure

$405.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 80024242

SILL, Enclosure

$559.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 80024198

DEFLECTOR, Enclosure

$769.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 80024249

SUPPORT, Enclosure

$405.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 80024243

BAFFLE, Enclosure

$769.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 80028502

PILLAR, Enclosure, w/Insulation

$1864.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 80028504

PANEL, Roof, w/Insulation

$2194.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 80028584

PANEL, Roof, w/Insulation

$2194.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 80028501

PANEL, Door, w/Insulation

$2479.99

$

Usually ships in 2-12 days

0

0240

$189.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 80028500

PANEL, Door, w/Insulation

$2579.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 80024532

PANEL, Exhaust, Right

$894.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 80024533

PANEL, Exhaust, Left

$1994.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 80024811

PANEL, Exhaust, Front, Left

$1994.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 80024812

PANEL, Exhaust, Front, Right

$1994.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 80024531

PANEL, Exhaust, Roof

$678.99

$

Usually ships in 2-12 days

0

0310

$19.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 80024810

GASKET, Door Latch

$6.49

$

Usually ships in 2-12 days

0

0330

$76.99

$

Usually ships in 2-12 days

0

0331

Briggs & Stratton 772073

SET, Latch Key

$17.99

$

Usually ships in 2-12 days

0

--

*SCREW, HEX SOCKET, 1/4-20 X 3/4 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*WASHER, FLAT, 1/4-20 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*NUT, NYLOCK, 1/4-20 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

SCREW, 1/4-20 X 3/4 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*SCREW, 1/4-20 X 3/4, ZINC CLEAR

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*SCREW, 3/8-16 X 3/4 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*WASHER, FLAT, 3/8

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*NUT, NYLOCK, 3/8-16 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*SCREW, HEX SOCKET, 3/8-16 X 3/4 SS

Note: (*See footnote, Not Illustrated)

$

$

Not available
