080027-00 - Briggs & Stratton 200kW Home Standby Generator Base_Battery Group (80022428) Parts Diagram

200kW Home Standby Generator

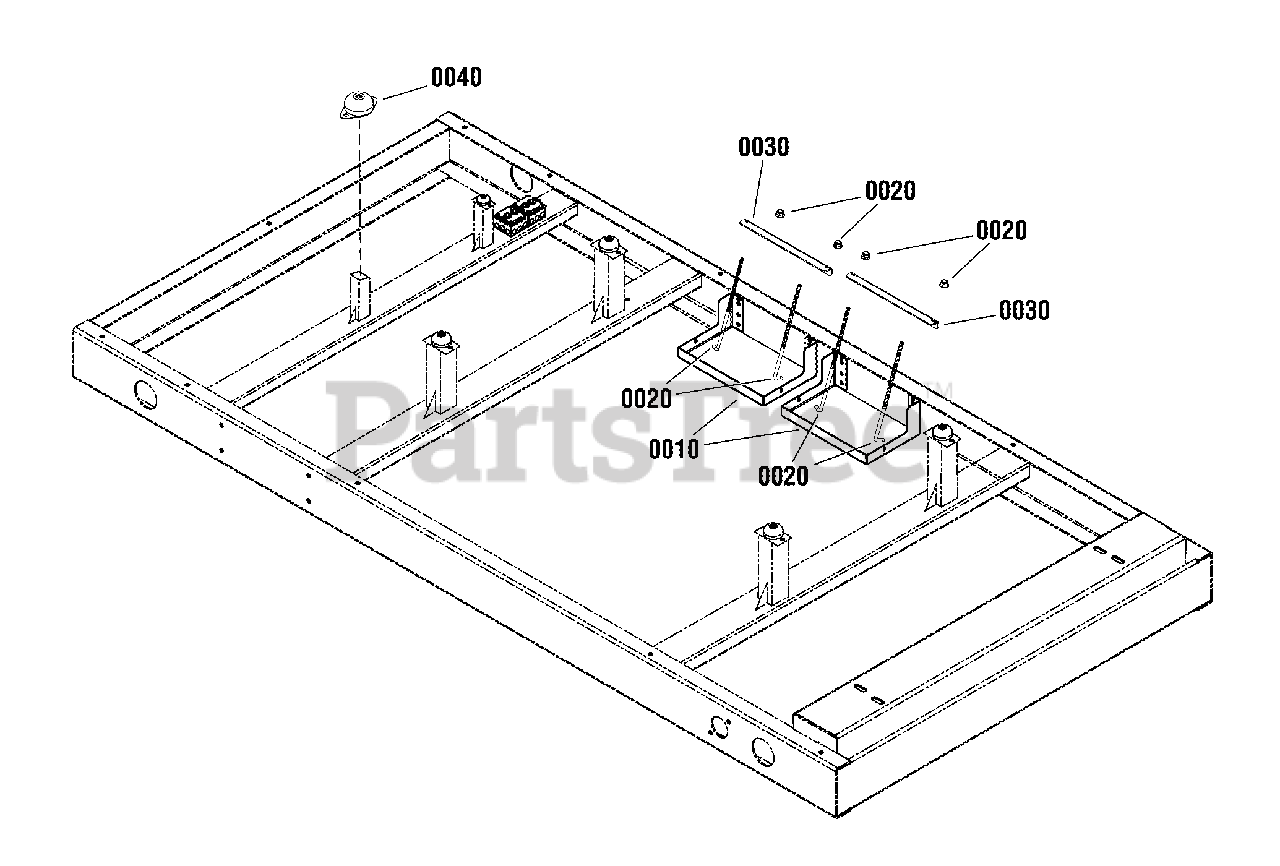

Base_Battery Group (80022428) Parts Diagram

  • Title

0010

Briggs & Stratton 80021458

TRAY, Battery

$

$

Currently unavailable

0020

Briggs & Stratton 80022757

HARDWARE, Battery Hold Down

Note: (Set of two)

$

$

Currently unavailable

0030

Briggs & Stratton 80021457

TIE DOWN, Battery

$

$

Currently unavailable

0040

Briggs & Stratton 770765

ISOLATOR

$66.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 770638

HEATER, 240V

$337.99

$

Usually ships in 2-12 days

0

--

-----

*WASHER, Flat, 3/8

Note: (Not Illustrated)

$

$

Not available

--

-----

*CAPSCREW, Hex Head, 3/8-16 x 1, GR5

Note: (Not Illustrated)

$

$

Not available

--

-----

*WASHER, Lock, 3/8

Note: (Not Illustrated)

$

$

Not available

--

-----

*NUT, Hex, 3/8

Note: (Not Illustrated)

$

$

Not available

--

-----

*CAPSCREW, Hex Head, 1/2-13 x 1 1/4, GR5

Note: (Not Illustrated)

$

$

Not available

--

-----

*WASHER, Flat, 1/2

Note: (Not Illustrated)

$

$

Not available

--

-----

*WASHER, Lock, 1/2

Note: (Not Illustrated)

$

$

Not available

--

-----

*NUT, Hex, 1/2

Note: (Not Illustrated)

$

$

Not available

--

-----

*CAPSCREW, Hex Head, 1/2-13 x 2, GR5

Note: (Not Illustrated)

$

$

Not available
