080019-00 - Briggs & Stratton 125kW Home Standby Generator Fuel Solenoid Group Parts Diagram

125kW Home Standby Generator

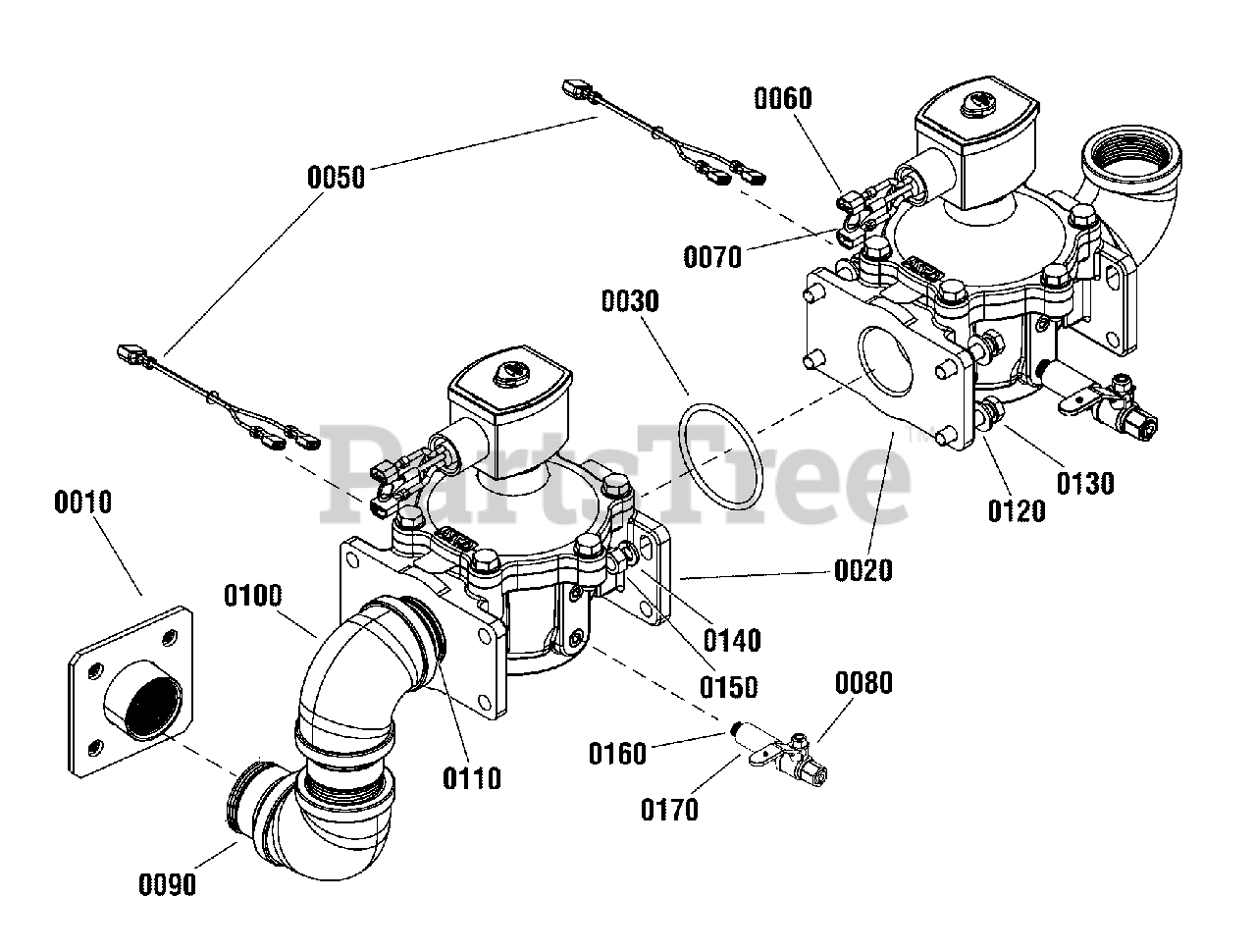

Fuel Solenoid Group Parts Diagram

  • Title

0010

Briggs & Stratton 80021462

COUPLING, Fuel, 1 1/2

$136.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 770764

VALVE , Fuel, 1 1/2, 12V

$762.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 770643

O-RING

$18.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 706898

HARNESS, Solenoid

$6.49

$

Usually ships in 2-12 days

0

0060

* LUG, 1/4 18-22

$

$

Not available

0070

* LUG, Ring, 3/8, 22/18

$

$

Not available

0080

Briggs & Stratton 312788GS

BALL, Valve, 1/8

$16.99

$

Usually ships in 2-12 days

0

0090

* FITTING, Nipple, 1 1/2 x 2 1/2

$

$

Not available

0100

* FITTING, Elbow, 1 1/2 x 90 degree

$

$

Not available

0110

* FITTING, Nipple, 1 1/2 Close

$

$

Not available

0120

* WASHER, Flat, 5/16

$

$

Not available

0130

* CAPSCREW, Hex Head, 5/16-18 x 1 1/2

$

$

Not available

0140

* WASHER, Lock, 5/16

$

$

Not available

0150

* NUT, Hex, 5/16-18

$

$

Not available

0160

* FITTING, Nipple, 1 1/8 NPT

$

$

Not available

0170

* FITTING, Coupling, 1 1/8 NPT

$

$

Not available
