080007-00 - Briggs & Stratton 80kW Home Standby Generator Engine Group - 5.7L TCAC Parts Diagram

80kW Home Standby Generator

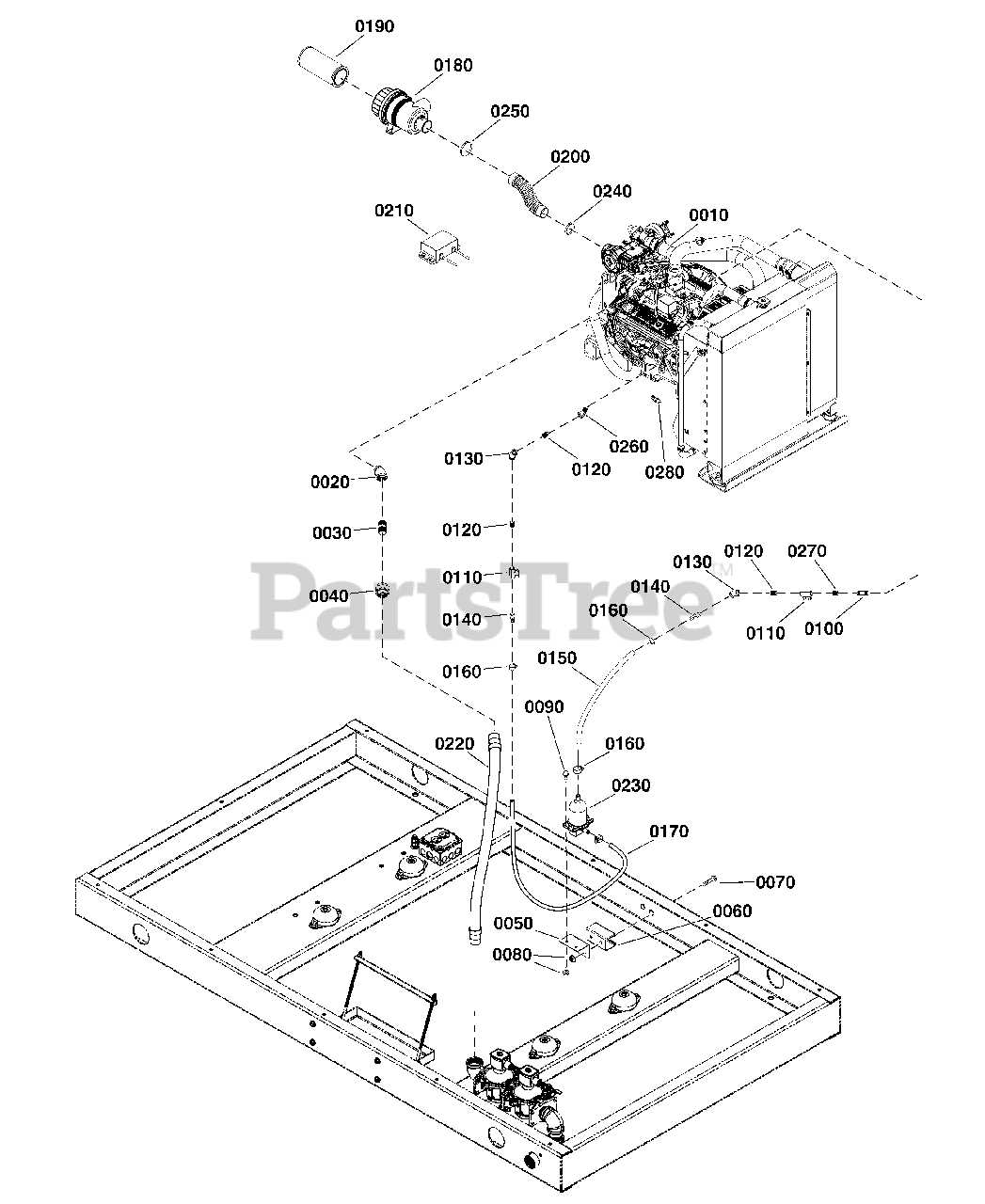

Engine Group - 5.7L TCAC Parts Diagram

  • Title

0010

Briggs & Stratton 80022398

ENGINE, 5.7L TCAC

$40253.99

$

Usually ships in 2-12 days

0

0020

*FITTNG, ELBOW, 1-1/4 NPT X 45°

Note: (*See footnote)

$

$

Not available

0030

FITTNG, NIPPLE, 1-1/4 NPT x 2-1/2

Note: (*See footnote)

$

$

Not available

0040

*FITTNG, UNION, 1-1/4 NPT

Note: (*See footnote)

$

$

Not available

0050

BRACKET, Mounting, Heat Pump

Note: (**See footnote)

$

$

Not available

0060

STRUT CHANNEL, 1-5/8 X 1-5/8 X 3

Note: (*See footnote)

$

$

Not available

0070

SCREW, FLANGED, 1/4-20 x 2.5

Note: (*See footnote)

$

$

Not available

0080

NUT, FLANGED, 1/4-20

Note: (*See footnote)

$

$

Not available

0090

SCREW, FLANGED, 1/4-20 x 1

Note: (*See footnote)

$

$

Not available

0100

FITTNG, NIPPLE, 3/8 NPT x 2

Note: (*See footnote)

$

$

Not available

0110

*VALVE, BALL, 1/2 NPT

Note: (*See footnote)

$

$

Not available

0120

*FITTNG, NIPPLE, 1/2 NPT x 1-1/8

Note: (*See footnote)

$

$

Not available

0130

*FITTNG, ELBOW, 1/2 NPT X 45°

Note: (*See footnote)

$

$

Not available

0140

HOSE, Barb, 5/8" BARB, 1/2" MNPT

Note: (*See footnote)

$

$

Not available

0150

HOSE, 5/8 ID X 24"

Note: (**See footnote)

$

$

Not available

0160

Briggs & Stratton 771739

CLAMP, Hose

$22.99

$

Usually ships in 2-12 days

0

0170

HOSE, 5/8 ID X 36"

Note: (**See footnote)

$

$

Not available

0180

Briggs & Stratton 80021511

AIR CLEANER ASSEMBLY

$253.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 770029

FILTER-CARTRIDGE

$92.99

$

In Stock, only 1 left!

0

0200

Briggs & Stratton 318640GS

HOSE, INTAKE

$85.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 771737

CHARGER, Battery

$439.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 770844

HOSE, FLEX, 1-1/4 NPT X 36"

$394.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 708798

HEATER, 120V

$207.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 205016GS

CLAMP, 3.5"

$15.99

$

Usually ships in 2-12 days

0

0250

CLAMP, Hose, 4.5"

Note: (*See footnote)

$

$

Not available

0260

FITTING, Elbow, 1/2 X 45°

Note: (*See footnote)

$

$

Not available

0270

FITTING, Bushing, Reducing, 1/2 - 3/8 NPT

Note: (*See footnote)

$

$

Not available

0280

Briggs & Stratton 80029983

SWITCH, Low Coolant

$167.99

$

Usually ships in 2-12 days

0
