0778-1 - Generac 1,500 PSI Pressure Washer High Pressure Washer Drawing No. B1101 Parts Diagram

1,500 PSI Pressure Washer

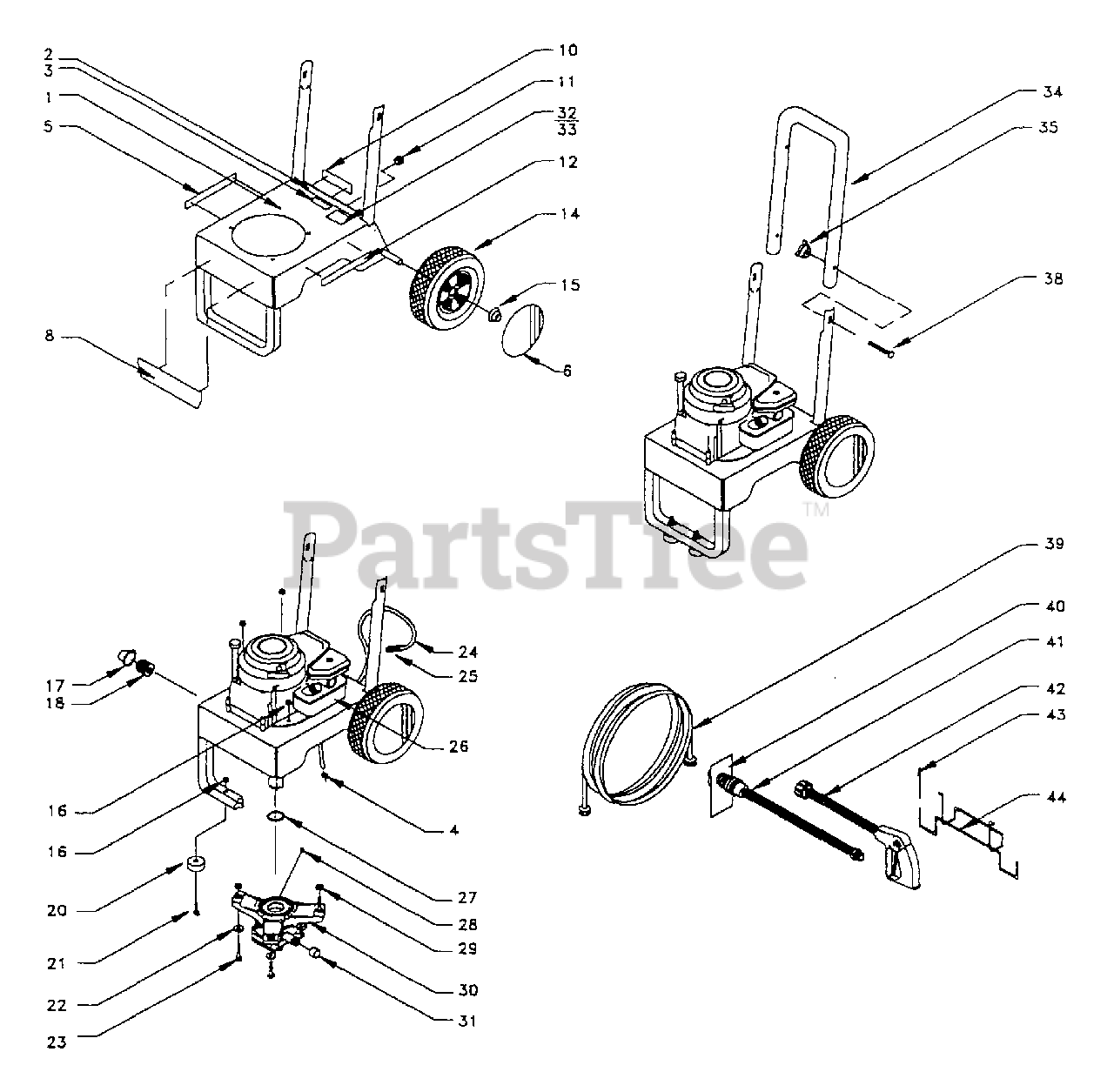

High Pressure Washer Drawing No. B1101 Parts Diagram

  • Title
1

Briggs & Stratton B1020

BASE VSPW
(Superseded to B1020GS)

$109.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 20089A

STARTING INSTRUCTION DECAL
(Superseded to 20089AGS)

$2.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 20566

1-800 NUMBER DECAL
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 48031G

HOSE CLAMP 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 21449

DANGER/EXHAUST DECAL

$

$

Not available

6

Briggs & Stratton 21289

WHEEL CAP
(Superseded to 21289GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 21388

LOGO DECAL 3000CP
(Superseded to 5021388)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20042

IMPORTANT/CAUTION DECAL
(Superseded to 20042GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

CHEM HOSE GROMMET
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

$

$

Not available

14

Briggs & Stratton 21206

2" x 8" BLACK MAG TIRE
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

1/2" PUSHNUT
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 52858

M8 LOCKING FLANGE NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton A1408

CAP, GARDEN HOSE INLET
(Superseded to A1408GS)

$

$

Not available

18

Briggs & Stratton 21424

GARDEN HOSE CONNECTOR
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 87841

RUBBER MOUNT FOOT
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 39414

M8 X 1.25 x 35 LONG HHCS
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 96796

GROMMET SUPPORT WASHER
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 39288

M8 X 1.25 x 55 LONG HHCS
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040B

CHEMICAL HOSE
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton A1041

CHEMICAL HOSE FILTER
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton ~NSP

B & S 4HP SPRINT

$

$

Currently unavailable

27

Briggs & Stratton 98300

ENGINE SEAL DONUT
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 96137

1/8" NPT PLUG W/SEALANT
(Superseded to 96137GS)

$

$

Not available

29

Briggs & Stratton 20874

ENGINE MOUNT SPACER
(Superseded to 5020874)

$9.49

$

Usually ships in 2-12 days

0

30

-----

PUMP, GPW-EG ASSEMBLY

Note: (For replacement, order 209940GS)

$

$

Not available

30

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

31

Briggs & Stratton 97100

HIGH PRESSURE CAP
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

32

$

$

Currently unavailable

33

$

$

Not available

34

$

$

Not available

35

Briggs & Stratton 97178

PW HANDLE KNOB
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 31669

1/4"-20 x 1.75" CARRIAGE BOLT
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton 97810

1/4" x 25' HOSE

$

$

Currently unavailable

40

Briggs & Stratton 97566

NOZZLE HANG TAG
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 98317A

ADJUSTABLE NOZZLE WAND
(Superseded to 188792AGS)

$67.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 98541

HIGH PRESSURE GUN

$

$

Currently unavailable

43

Briggs & Stratton 92528

0.25" DIA. BLACK VINYL CAP

$

$

Currently unavailable

44

Briggs & Stratton 20118

WIREFORM
(Superseded to 20118GS)

$26.99

$

Usually ships in 2-12 days

0
