0777-0 - Generac 1,300 PSI Pressure Washer Main Unit Parts Diagram

1,300 PSI Pressure Washer

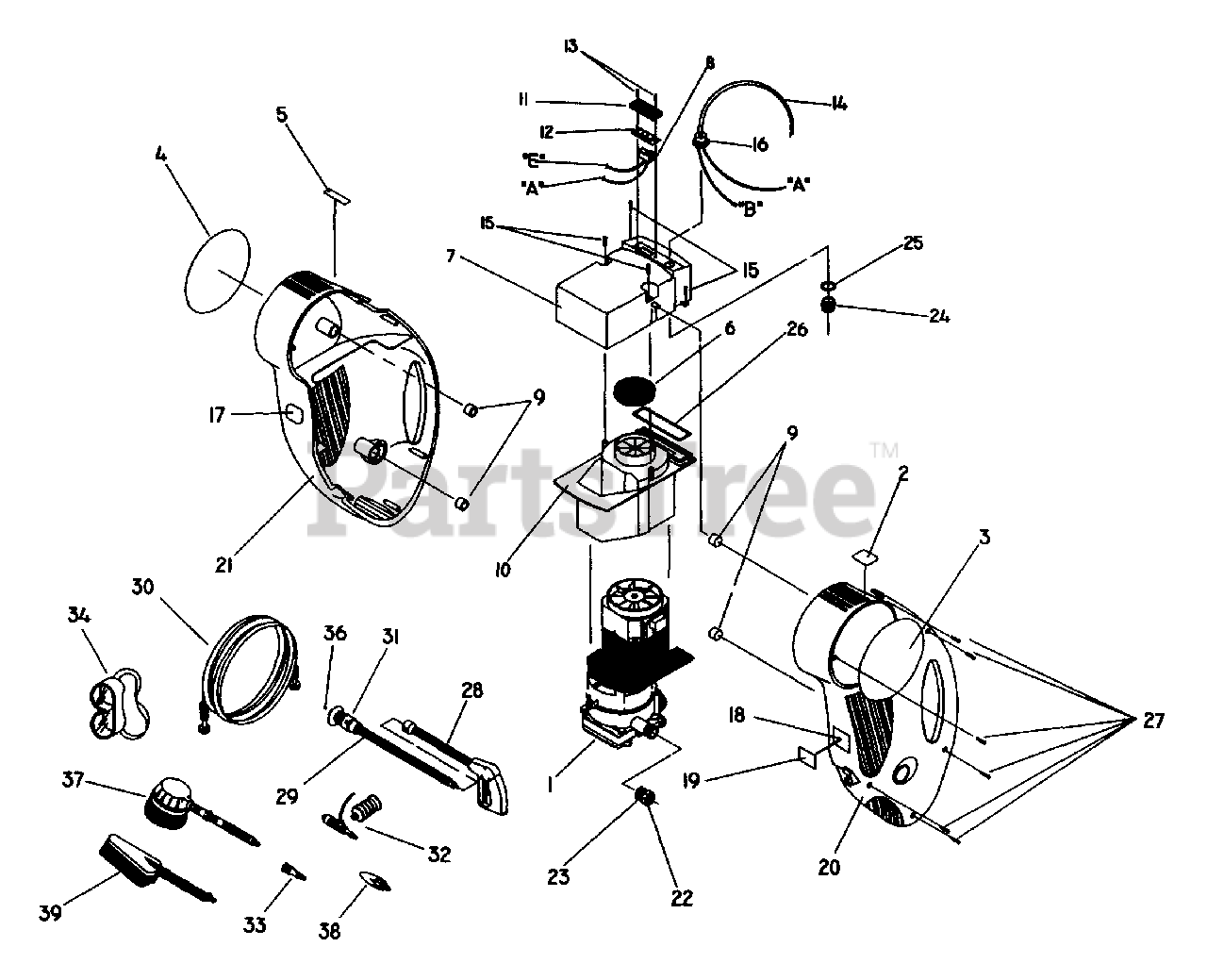

Main Unit Parts Diagram

  • Title

1

~N/A

ASSY., Motor and Pump

Note: (see exp. view B1744)

$

$

Not available

2

Briggs & Stratton B1415

DECAL, Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A1252

DECAL, Unit

$

$

Currently unavailable

4

Briggs & Stratton A1313

DECAL, Instructions
(Superseded to A1313GS)

$2.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 20566

DECAL, 1-800 #
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 20984

SWITCH, Rocker 16A

$

$

Not available

9

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 97892

COVER, Motor

$

$

Currently unavailable

11

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch Boot
(Superseded to 5020985)

$

$

Not available

12

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84543B

SCREW,35mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 98805

CORD, Power

$

$

Not available

15

Briggs & Stratton 84358

SCREW, 46-19 x.75mm Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 99349

STRAIN RELIEF, Cord
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2352

DECAL, Data

$

$

Currently unavailable

19

Briggs & Stratton 99736

OVERLAMINATE

$

$

Not available

20

Briggs & Stratton 21334

HOUSING, Inlet
(Superseded to 21334GS)

$41.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 21335

HOUSING, Outlet
(Superseded to 5021335)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 21265

QUICK DISCONNECT, Male
(Superseded to 21265GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 96016

QUICK DISCONNECT, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton A1484

NUT, Strain Relief Lock
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

26

Briggs & Stratton 97835

"O" RING, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 99350

SCREW, #6 Plastite
(Superseded to 99350GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 21336

GUN, Spray

$

$

Currently unavailable

29

Briggs & Stratton 21337

WAND, Extension
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 97810

HOSE, High Pressure

$

$

Currently unavailable

31

Briggs & Stratton 21338D

NOZZLE, Fixed Position
(Superseded to B3333DGS)

$53.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton A1069

FOAMER

$

$

Not available

33

Briggs & Stratton B1051

ADAPTER, Accessories
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 87815

GOGGLES
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B1236D

NOZZLE, 1.15mm dia.
(Superseded to B1236DGS)

Note: (Lilac)

$19.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 88176A

BRUSH, Rotary
(Superseded to 6057)

$48.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B1300D

NOZZLE, Turbo
(Superseded to B1300DGS)

$24.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B2391

BRUSH, Utility
(Superseded to B2391GS)

$41.99

$

Usually ships in 2-12 days

0
