0775-0 - Generac 3,000 PSI Pressure Washer Pump Drawing No. B1217B Parts Diagram

3,000 PSI Pressure Washer

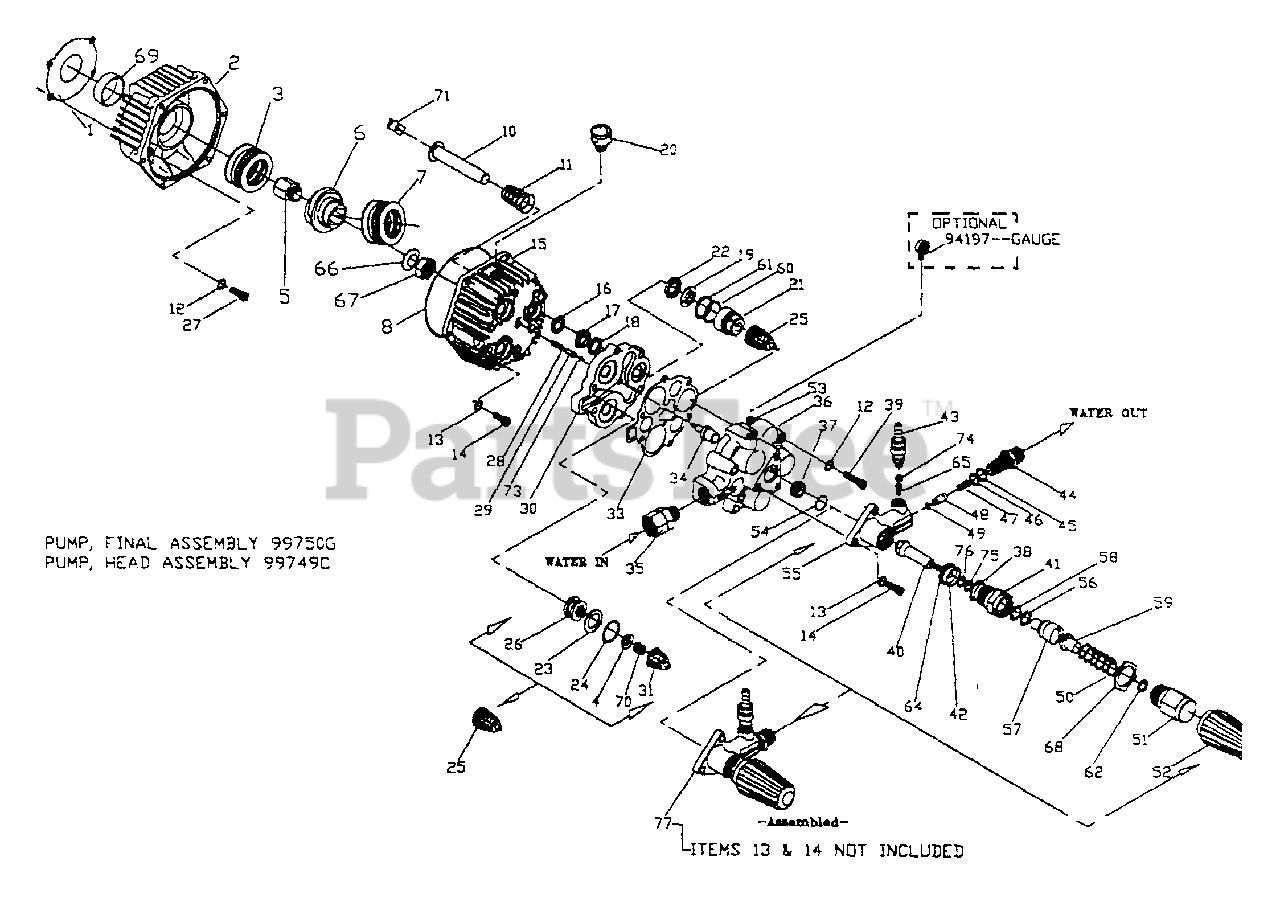

Pump Drawing No. B1217B Parts Diagram

  • Title

1

Briggs & Stratton 93871

GASKET, ENGINE ADAPTOR
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96430Z

ADAPTOR, ENGINE
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96542

BEARING, ROLLER THRUST
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 97215

POPPET, CHECK VALVE
(Superseded to 97215GS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 95165

ADAPT., ENG. SHAFT
(Superseded to 95165GS)

$30.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 21277V

AXIAL CAM
(Superseded to 21277VGS)

$44.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 97606

BEARING, ROLLER THRUST ASSY.
(Superseded to 97606GS)

$88.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93790

"O" RING
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99427

PISTON ASSEMBLY
(Superseded to 99427GS)

$39.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 96400

SPRING, PISTON RETURN
(Superseded to 96400GS)

$

$

Not available

12

Briggs & Stratton 92479

LOCKWASHER, M8-RIBBED
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93873

LOCKWASHER, M6-RIBBED

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40945

M6 x 1 x 20 LONG SHCS
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 97568Y

CRANKCASE, ALUMINUM
(Superseded to 97568YGS)

$94.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93680

SEAL, OIL-PISTON
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 93668

SPACER, PILOT
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93667

SEAL, LO-PRES "U" PAK
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 7

0

19

Briggs & Stratton 96015

RING, BEARING SEAL
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 99735

CAP, BREATHER
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97027

TOWER, HIGH PRESS. PORT
(Superseded to 97027GS)

$20.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 96053

SEAL, HIGH PRESS.-BLACK
(Superseded to 96053GS)

$

$

Not available

23

Briggs & Stratton 95504

RING, BACK-UP
(Superseded to 95504GS)

$

$

Not available

24

Briggs & Stratton 95503

"O" RING
(Superseded to 95503GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 97128

KIT, CHECK VALVE
(Superseded to 97128GS)

$16.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97028

SUPPORT, CHECK VALVE, PLASTIC
(Superseded to 97028GS)

$7.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 23707

BOLT, 5/16-24 x 1" SHC
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 93652

SPRING, THERMAL BY-PASS
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 95416

PISTON, BY-PASS
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 97122Z

PLATE, SPACER

$

$

Currently unavailable

31

Briggs & Stratton 89137

GUIDE, CHECK VALVE PLASTIC
(Superseded to 89137GS)

$7.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93645

GASKET, HEAD

$

$

Currently unavailable

34

Briggs & Stratton 93644

ACTUATOR, THERMAL BY-PASS
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 95320

CONNECTOR, GARDEN HOSE
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 95138

HEAD, CYLINDER-BRASS

$

$

Not available

37

Briggs & Stratton 95382

SPINDLE SEAT ASSY
(Superseded to 95382GS)

$6.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton 93722

"O" RING
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 93874

SHCS, M8-1.25 x 75
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 95373

SPINDLE, UNLOADER ASSEM.
(Superseded to 95373GS)

$5.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95367

GUIDE, UNLOADER PISTON
(Superseded to 95367GS)

$30.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 95372

"O" RING
(Superseded to 95372GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 95378

FITTING, CHEM. INJECTOR
(Superseded to 95378GS)

$22.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 95377

ADAPT., HIGH PRESS OUTLET
(Superseded to 95377GS)

$18.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93788

"O" RING
(Superseded to 93788GS)

$30.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93787

"O" RING
(Superseded to 93787GS)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 95376

SPRING
(Superseded to 95376GS)

$2.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 95374

PISTON, HIGH PRESS OUTLET

$

$

Not available

49

Briggs & Stratton 95375

"O" RING
(Superseded to 95375GS)

$4.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 95384

SPRING, PRESS ADJUST

$

$

Not available

51

Briggs & Stratton 95364B

ADAPTOR, PRESS ADJUST
(Superseded to 95364BGS)

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 95381B

HANDLE, PRESS ADJUST
(Superseded to 95381BGS)

$6.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 96137

PLUG, PIPE 1/8 NPT
(Superseded to 96137GS)

$

$

Not available

54

Briggs & Stratton 93723

"O" RING
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

55

Briggs & Stratton 95216

BODY, PRESS RELIEF VALVE

$

$

Currently unavailable

56

Briggs & Stratton 95369

RING BACK-UP
(Superseded to 95369GS)

$3.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95368

PISTON, UNLOADER

$

$

Currently unavailable

58

Briggs & Stratton 95370

"O" RING
(Superseded to 95370GS)

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 95363

SUPPORT, SPRING
(Superseded to 95363GS)

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 96069

"O" RING
(Superseded to 96069GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95506

RING, BACK-UP
(Superseded to 95506GS)

$2.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 90427

WASHER #10 S.S.

$

$

Not available

64

Briggs & Stratton 95371

SUPPORT, PISTON
(Superseded to 95371GS)

$6.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 95380

SPRING, CHEMICAL INJ
(Superseded to 95380GS)

$

$

Not available

66

Briggs & Stratton 94738

WASHER, BELLEVILLE
(Superseded to 94738GS)

$12.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 93887

NUT, JAM M6-1.5

$

$

Not available

68

Briggs & Stratton 95366

RING, LOCKING M18 x 1
(Superseded to 95366GS)

$17.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 95441

SLEEVE, ENG. ADAPTOR
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 89138

SPRING, CHECK VALVE
(Superseded to 89138GS)

$5.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 94944

SHOE, PISTON PIVOT
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 93876

"O"-RING
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 95379

BALL

$

$

Not available

75

Briggs & Stratton 93656

"O"-RING
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 93657

RING, BACK-UP
(Superseded to 93657GS)

$2.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 95212C

ASSEMBLY, UNLOADER

$

$

Currently unavailable
