077 (190-077-100) - Cub Cadet Grass Catcher (1989) att Grass Catcher Parts Diagram

Grass Catcher

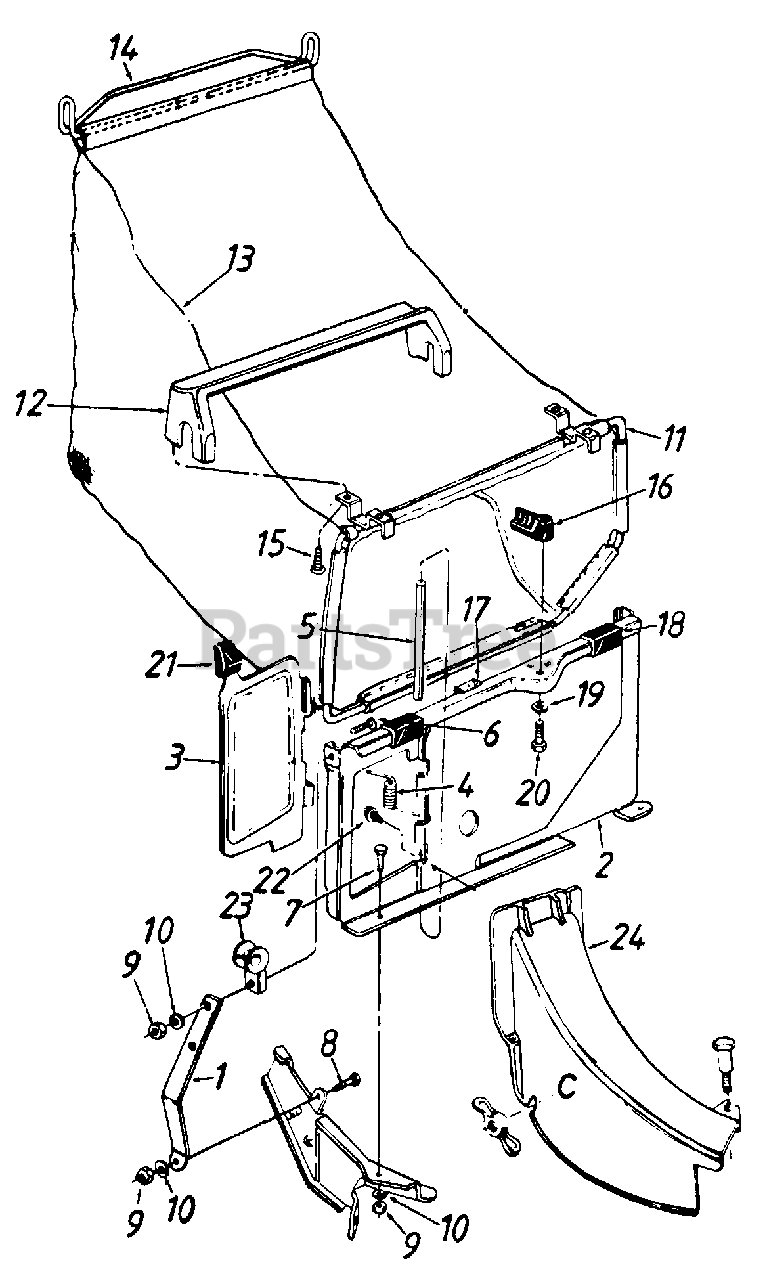

Grass Catcher Parts Diagram

  • Title
1

Cub Cadet 16129

BRACKET-PANEL SUP
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 17196

PANEL ASSY-CATCHER

$

$

Not available

3

Cub Cadet 17095

DOOR-TOP DISCHARGE

$

$

Not available

4

Cub Cadet 17095

DOOR-TOP DISCHARGE

$

$

Not available

$

$

Not available

6

Cub Cadet 710-0255

SCREW-TRUSS MACH
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0289

SCREW-HEX 1/4-20 x .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 16702

FRAME-GRASSCATCHER

$

$

Not available

12

Cub Cadet 731-0801

HANDLE-BAG-BLACK

$

$

Not available

13

Cub Cadet 764-0212

BAG-GRASS-CONV

$

$

Currently unavailable

13

Cub Cadet 764-0212

BAG-GRASS-CONV

$

$

Currently unavailable

14

Cub Cadet 747-0495

HANDLE-GRASSCATCHER

$

$

Not available

15

Cub Cadet 710-0969

SCREW-TAP .215 x 1

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 720-0224

KNOB-LOCKING
(Superseded to 920-0224)

$

$

Not available

17

Cub Cadet 722-0134

STRIP-FOAM 1/4X1.0

$

$

Currently unavailable

18

Cub Cadet 731-0883

CLIP-PANEL BAG

$

$

Not available

19

Cub Cadet 736-0271

WASHER-SHAKE PROOF
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

20

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 x .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 719-0279

GUIDE-ROPE

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-0733

CHUTE ASSY-TOP DISCH

$

$

Not available
