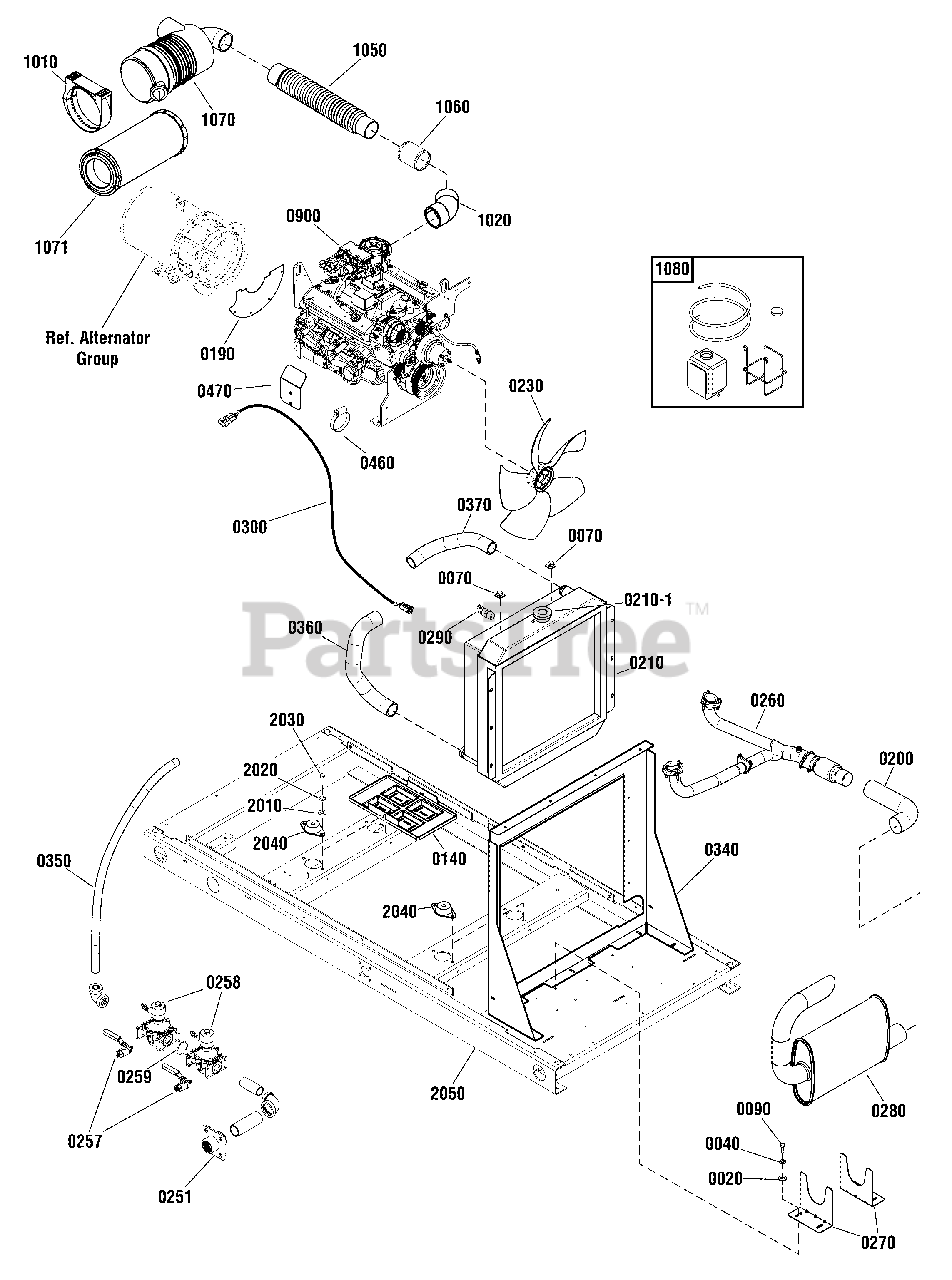

076761-01 - Briggs & Stratton 60kW Liquid Cooled Home Standby Generator Engine Group - 5.7L Parts Diagram

60kW Liquid Cooled Home Standby Generator

Engine Group - 5.7L Parts Diagram

  • Title

0020

* WASHER, Flat, 1/4

$

$

Not available

0040

* LOCKWASHER, 1/4

$

$

Not available

0070

Briggs & Stratton 197355GS

CLIP

$2.49

$

Usually ships in 2-12 days

0

0090

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

0140

Briggs & Stratton 205623GS

TRAY-BATTERY

$22.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton B310532GS

COVER-DUST

$22.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 311971GS

TUBE

$64.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 312322GS

RADIATOR

$1433.99

$

Usually ships in 2-12 days

0

0210-1

Briggs & Stratton 314566GS

CAP-RADIATOR

$41.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314551GS

VALVE-DRAIN

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 312710GS

FAN

$225.99

$

Usually ships in 2-12 days

0

0251

Briggs & Stratton BC310518GS

COUPLER

$49.99

$

Usually ships in 2-12 days

0

0257

Briggs & Stratton 312788GS

VALVE-BALL

$16.99

$

Usually ships in 2-12 days

0

0258

Briggs & Stratton 316258GS

VALVE-FUEL

$335.99

$

Usually ships in 2-12 days

0

0259

Briggs & Stratton 316259GS

O-RING

$12.99

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 706616

EXHAUST

$323.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 707174

BRACKET

$12.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 707173

MUFFLER

$207.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 708761

SENSOR

$161.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 708762

HARNESS-WIRE, LOW COOLANT SESNOR

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 708763

HARNESS-WIRE

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

0340

** SUPPORT

$

$

Not available

0350

Briggs & Stratton 310809GS

HOSE-FUEL

$89.99

$

Usually ships in 2-12 days

0

0360

Briggs & Stratton 313210GS

HOSE

$57.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 313212GS

HOSE

$40.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192669GS

CLAMP

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310811GS

CABLE-BTTRY, BLACK

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310812GS

CABLE-BTTRY, RED

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 770965

BOOT-BATTERY, RED

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-12 days

0

1010

Briggs & Stratton 204868GS

CLAMP

$54.99

$

Usually ships in 2-12 days

0

0460

Briggs & Stratton 205016GS

CLAMP, 3.5"

$15.99

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 206727GS

ELBOW

$37.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 770119

SHIELD-HEAT

$

$

Currently unavailable

1050

Briggs & Stratton 318640GS

HOSE

$85.99

$

Usually ships in 2-12 days

0

0900

** ENGINE-5.7L

$

$

Not available

1060

Briggs & Stratton 706401

COUPLER

$29.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 706400

AIR FILTER HOUSING

$435.99

$

Usually ships in 2-12 days

0

1071

Briggs & Stratton 770029

FILTER-CARTRIDGE

$92.99

$

In Stock, only 1 left!

0

1080

Briggs & Stratton 205226GS

BOTTLE-OVERFLOW

$42.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316869GS

STRAP-BATTERY TIEDOWN

Note: (Not Illustrated)

$7.99

$

Usually ships in 2-12 days

0

2010

* WASHER, Flat, 3/8

$

$

Not available

2020

* WASHER, Lock, 3/8

$

$

Not available

2030

* CAPSCREW, Hex Head, 3/8-16 x 3/4

$

$

Not available

2040

Briggs & Stratton 204653GS

MOUNT-VIBRATION

$25.99

$

Usually ships in 2-12 days

0

2050

** BASE

$

$

Not available
