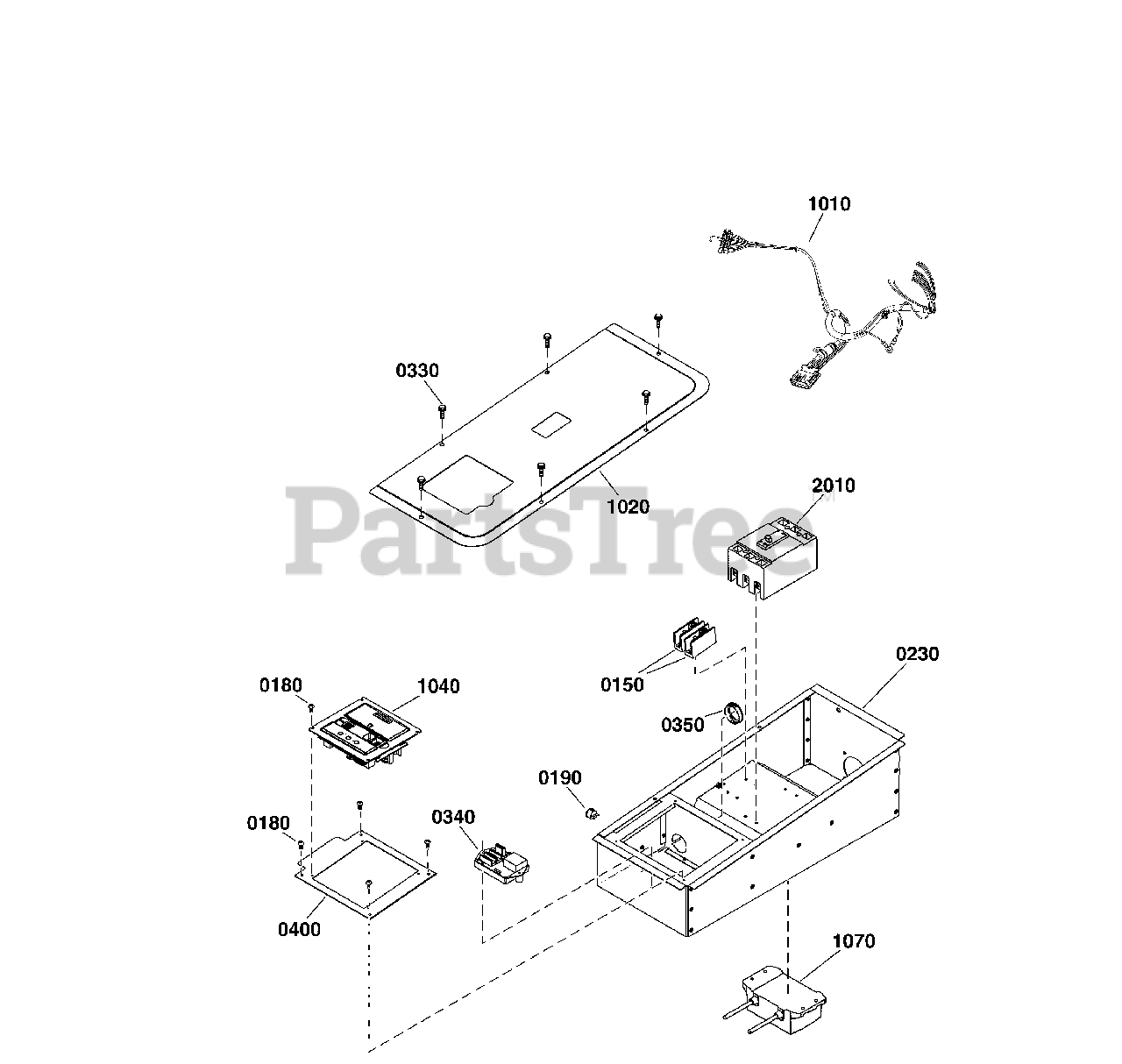

076195-01 - Briggs & Stratton 30kW Liquid Cooled Home Standby Generator Control Panel Parts Diagram

30kW Liquid Cooled Home Standby Generator

Control Panel Parts Diagram

  • Title

0150

Briggs & Stratton 208365GS

BLOCK, Terminal

$14.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 315436GS

SCREW, #10-16 X 3/8"

$5.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 315551GS

SWITCH, Rocker

$5.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 707900

BOX-CONTROL PANEL

$348.99

$

Usually ships in 2-12 days

0

0330

BOLT, Flange, M6 X 1 X 20

Note: (*See footnote)

$

$

Not available

0340

Briggs & Stratton 209856GS

REGULATOR, Voltage

$177.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 707901

BUSHING

$3.49

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 772325

BRACKET-CONTROL PANEL

$

$

Not available

1010

Briggs & Stratton 772274

HARNESS, Wire

$

$

Not available

1020

Briggs & Stratton 772268

COVER, Door

$

$

Not available

1040

Briggs & Stratton 708778

CONTROL PANEL

Note: (**See footnote)

$418.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 771737

CHARGER, Battery

$439.99

$

Usually ships in 2-12 days

0

2010

Briggs & Stratton 772327

BREAKER-CIRCUIT, 40A, 3 Pole

Note: (Used on model 076175-00)

$527.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 318130GS

BREAKER-CIRCUIT, 45A, 3 Pole

Note: (Used on model 076195-00)

$

$

Currently unavailable

2020

Briggs & Stratton 6479

KIT, Off Board Radio

Note: (Not Illustrated)

$418.99

$

Usually ships in 2-12 days

0
