076191-02 - Briggs & Stratton 30kW Liquid Cooled Home Standby Generator Enclosure Parts Diagram

30kW Liquid Cooled Home Standby Generator

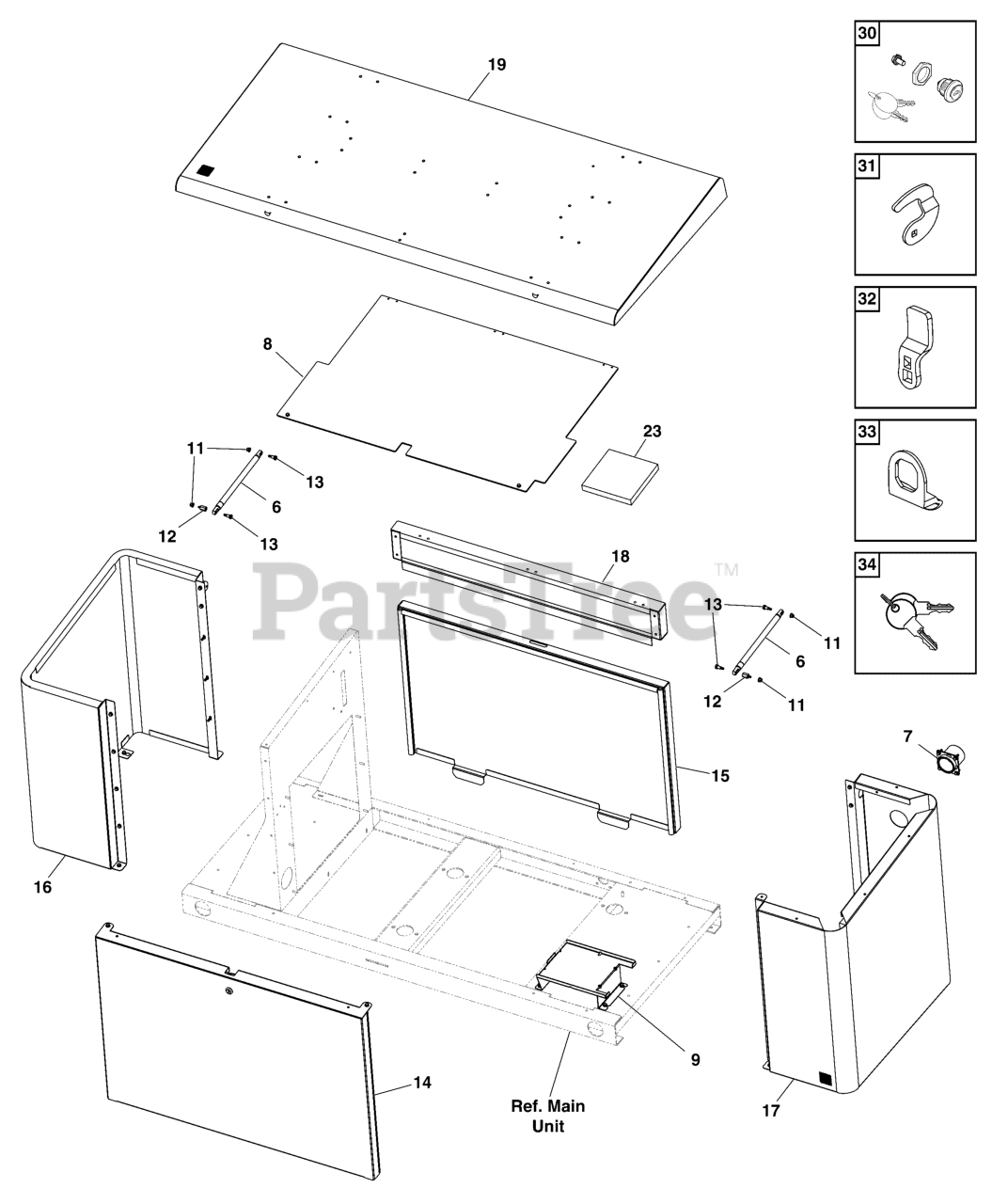

Enclosure Parts Diagram

  • Title

6

Briggs & Stratton 314649GS

SHOCK, Roof

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton BG318007GS

FITTING

$118.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 318597GS

GUARD

$104.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton BA319333GS

TRAY-BATTERY
(Superseded to 84003230)

$147.99

$

Usually ships in 2-12 days

0

11

* NUT, M6, Flange Head, Lock

Note: (*See footnote)

$

$

Not available

12

Briggs & Stratton 704297

ADAPTER

$8.99

$

Usually ships in 2-12 days

0

13

* BOLT, Shoulder, M6, 8 x 12

Note: (*See footnote)

$

$

Not available

14

Briggs & Stratton 704254

DOOR-FRONT

Note: (Includes Ref. Nos. 20, 21)

$877.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 704255

DOOR-BACK

Note: (Includes Ref. Nos. 20, 22, 23)

$747.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 704256

BULKHEAD-EXHAUST

$1212.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 704258

BULKHEAD-ALTERNATOR

$1385.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 704260

RAIL-DOOR

$190.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 704262

ROOF

$2324.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84004648

SHIELD, Water

$

$

Currently unavailable

30

Briggs & Stratton 314619GS

LATCH

$21.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 315443GS

LATCH, Arm

Note: (Front Door)

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196001GS

LATCH-ARM

Note: (Rear Door)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 704295

TAB-PULL

$5.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 314290GS

KEY, Latch

$16.99

$

Usually ships in 2-12 days

0
