076191-00 - Briggs & Stratton 30kW Liquid Cooled Home Standby Generator Main Unit Parts Diagram

30kW Liquid Cooled Home Standby Generator

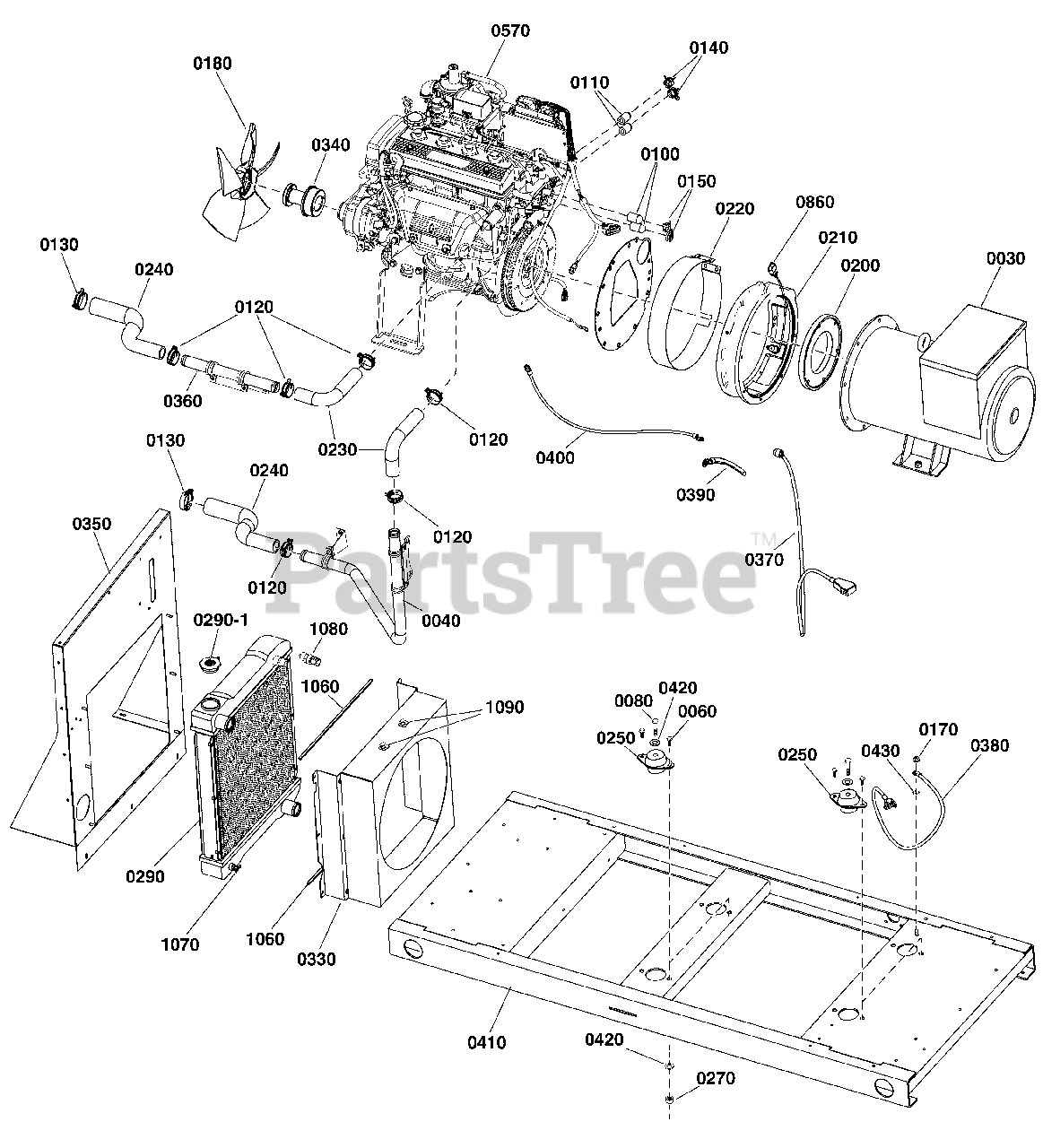

Main Unit Parts Diagram

  • Title

0030

Briggs & Stratton 772179

ALTERNATOR ASSEMBLY

$

$

Currently unavailable

0040

Briggs & Stratton 318521GS

TUBE
(Superseded to 707454)

$205.99

$

Usually ships in 2-12 days

0

0060

BOLT, Flange, M10 X 1-1/2 X 20

Note: (*See footnote)

$

$

Not available

0080

BOLT, M12 X 1-3/4 X 3/4

Note: (*See footnote)

$

$

Not available

0100

Briggs & Stratton 319775GS

CAP, Port, Rubber, 11/16"

$3.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 319776GS

CAP, Port, Rubber, 5/16"

$3.49

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 318541GS

CLAMP

$35.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 318542GS

CLAMP

$14.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 704218

CLAMP

$5.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 704219

CLAMP

$5.49

$

Usually ships in 2-12 days

0

0170

NUT, Flange, M8

Note: (*See footnote)

$

$

Not available

0180

Briggs & Stratton 704220

FAN

$134.99

$

Usually ships in 2-12 days

0

0200

FLANGE, Alternator

$

$

Not available

0210

ADAPTER, Flange, Engine/Alternator

$

$

Not available

0220

GUARD, Flywheel

$

$

Not available

0230

Briggs & Stratton 318520GS

HOSE

$15.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 318519GS

HOSE

$25.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 204653GS

MOUNT, Vibration

$25.99

$

Usually ships in 2-12 days

0

0270

NUT, Nylock, M12 X 1-3/4

$

$

Not available

0290

Briggs & Stratton 318373GS

RADIATOR

$680.99

$

Usually ships in 2-12 days

0

0290-1

Briggs & Stratton 704673

CAP, Radiator

$58.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 319018GS

COVER-FAN

$237.99

$

Usually ships in 2-12 days

0

0340

SPACER, Fan, Radiator

$

$

Not available

0350

Briggs & Stratton 317569GS

SUPPORT

$316.99

$

Usually ships in 2-12 days

0

0360

Briggs & Stratton 318522GS

TUBE
(Superseded to 707453)

$159.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 318369GS

WIRE

$43.99

$

Usually ships in 2-12 days

0

0380

Briggs & Stratton 318370GS

WIRE

$37.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 318371GS

WIRE

$12.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 318372GS

WIRE

$29.99

$

Usually ships in 2-12 days

0

0410

BASE

$

$

Not available

0420

Briggs & Stratton 49808GS

WASHER

$3.99

$

In Stock, only 2 left!

0

0430

Briggs & Stratton 193686GS

WSHR, M10, SHKPRF, EXT

$4.49

$

Usually ships in 2-12 days

0

0570

Briggs & Stratton 317591GS

** ENGINE

Note: (**See footnote)

$6038.99

$

Usually ships in 2-12 days

0

0860

Briggs & Stratton 318724GS

SENSOR-CRANK POSITION

$37.99

$

Usually ships in 2-12 days

0

1060

Briggs & Stratton 707455

SEAL

$3.49

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 772144

VALVE, Drain

$15.99

$

Usually ships in 2-12 days

0

1080

Briggs & Stratton 708761

SENSOR-LOW COOLANT

$161.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0
