076141-06 - Briggs & Stratton 35kW Liquid Cooled Home Standby Generator Engine Service Parts - Cylinder Block Parts Diagram

35kW Liquid Cooled Home Standby Generator

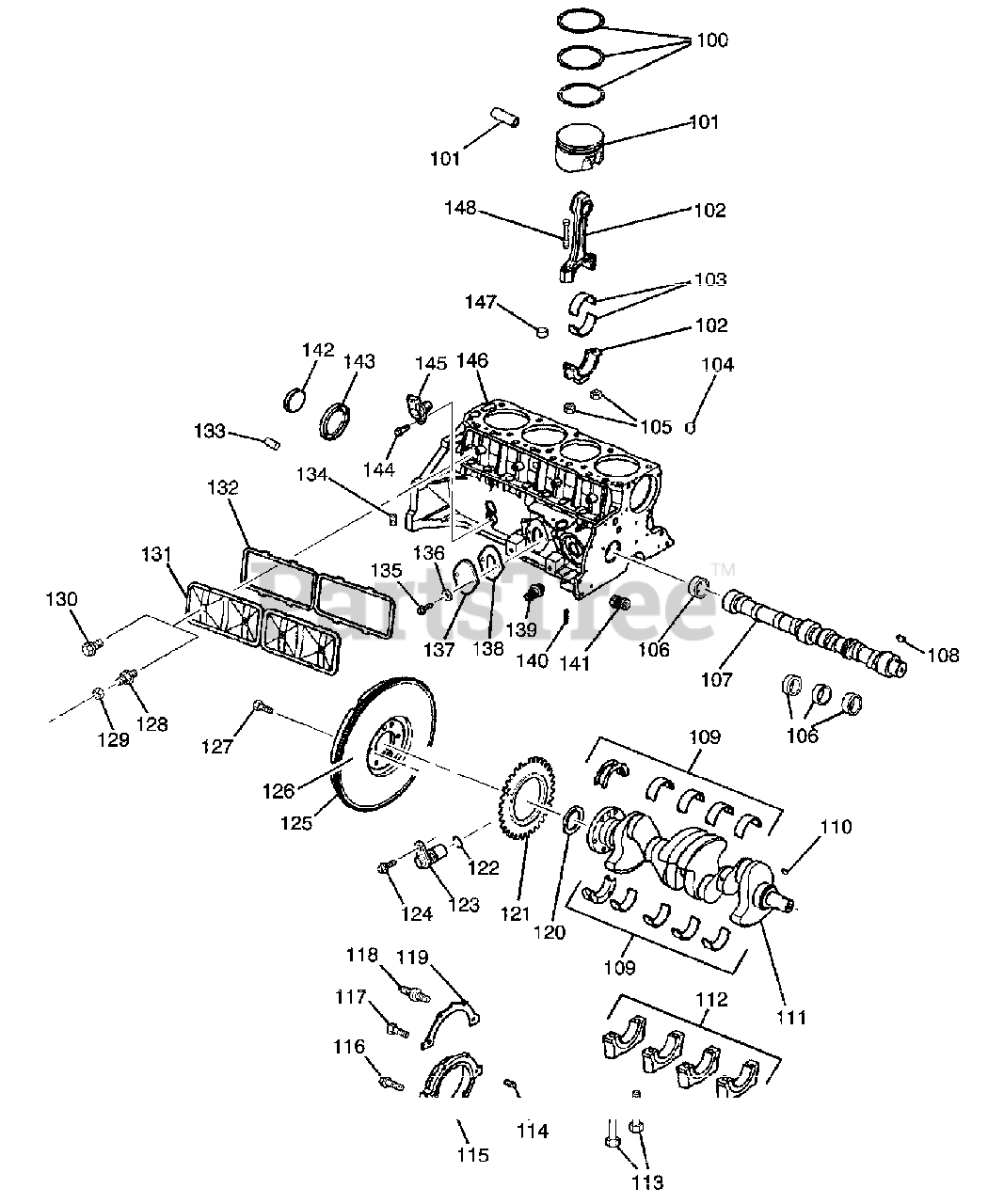

Engine Service Parts - Cylinder Block Parts Diagram

  • Title

100

* RING KIT .030 OS

$

$

Not available

100

* RING KIT

$

$

Not available

101

* PISTON

$

$

Not available

102

* ROD

$

$

Not available

103

* BEARING KIT STD

$

$

Not available

103

* BEARING KIT .001 OS

$

$

Not available

104

* BEARING

$

$

Not available

105

* NUT

$

$

Not available

106

* BEARING

$

$

Not available

107

* CAMSHAFT ENG MOBILE

$

$

Not available

108

* KEY

$

$

Not available

109

* BEARING KIT #5 .001 OS

$

$

Not available

109

* BEARING KIT #5 STD

$

$

Not available

109

* BEARING KIT STD

$

$

Not available

109

* BEARING KIT .001 OS

$

$

Not available

110

* KEY

$

$

Not available

111

* CRANKSHAFT

$

$

Not available

112

* CAP

$

$

Not available

113

* BOLT

$

$

Not available

114

* PIN

$

$

Not available

115

* HOUSING

$

$

Not available

116

* BOLT

$

$

Not available

117

* BOLT

$

$

Not available

118

* STUD

$

$

Not available

119

* GASKET

$

$

Not available

120

Briggs & Stratton 708811

SEAL

$133.99

$

Usually ships in 2-12 days

0

121

* RING

$

$

Not available

122

* SEAL

$

$

Not available

123

Briggs & Stratton 708812

SENSOR

$131.99

$

Usually ships in 2-12 days

0

124

* BOLT

$

$

Not available

125

* GEAR

$

$

Not available

126

* FLYWEEL

$

$

Not available

127

* BOLT

$

$

Not available

128

* STUD

$

$

Not available

129

* NUT

$

$

Not available

130

* BOLT

$

$

Not available

131

* COVER

$

$

Not available

132

Briggs & Stratton 708813

SEAL

$54.99

$

Usually ships in 2-12 days

0

133

* PIN

$

$

Not available

134

* PLUG

$

$

Not available

135

* BOLT

$

$

Not available

136

* WASHER

$

$

Not available

137

* COVER

$

$

Not available

138

* GASKET

$

$

Not available

139

* FITTING

$

$

Not available

140

* PIN

$

$

Not available

141

* VALVE

$

$

Not available

142

*PLUG

$

$

Not available

143

* PLUG

$

$

Not available

144

* BOLT

$

$

Not available

145

Briggs & Stratton 708814

SENSOR

$365.99

$

Usually ships in 2-12 days

0

146

* CYLINDER BLOCK

$

$

Not available

147

* PLUG

$

$

Not available

148

* BOLT

$

$

Not available

K01

* CAMSHAFT

$

$

Not available

--

Briggs & Stratton 708815

OIL FILTER

$25.99

$

In Stock, only 1 left!

0
