29kW Liquid Cooled Home Standby Generator

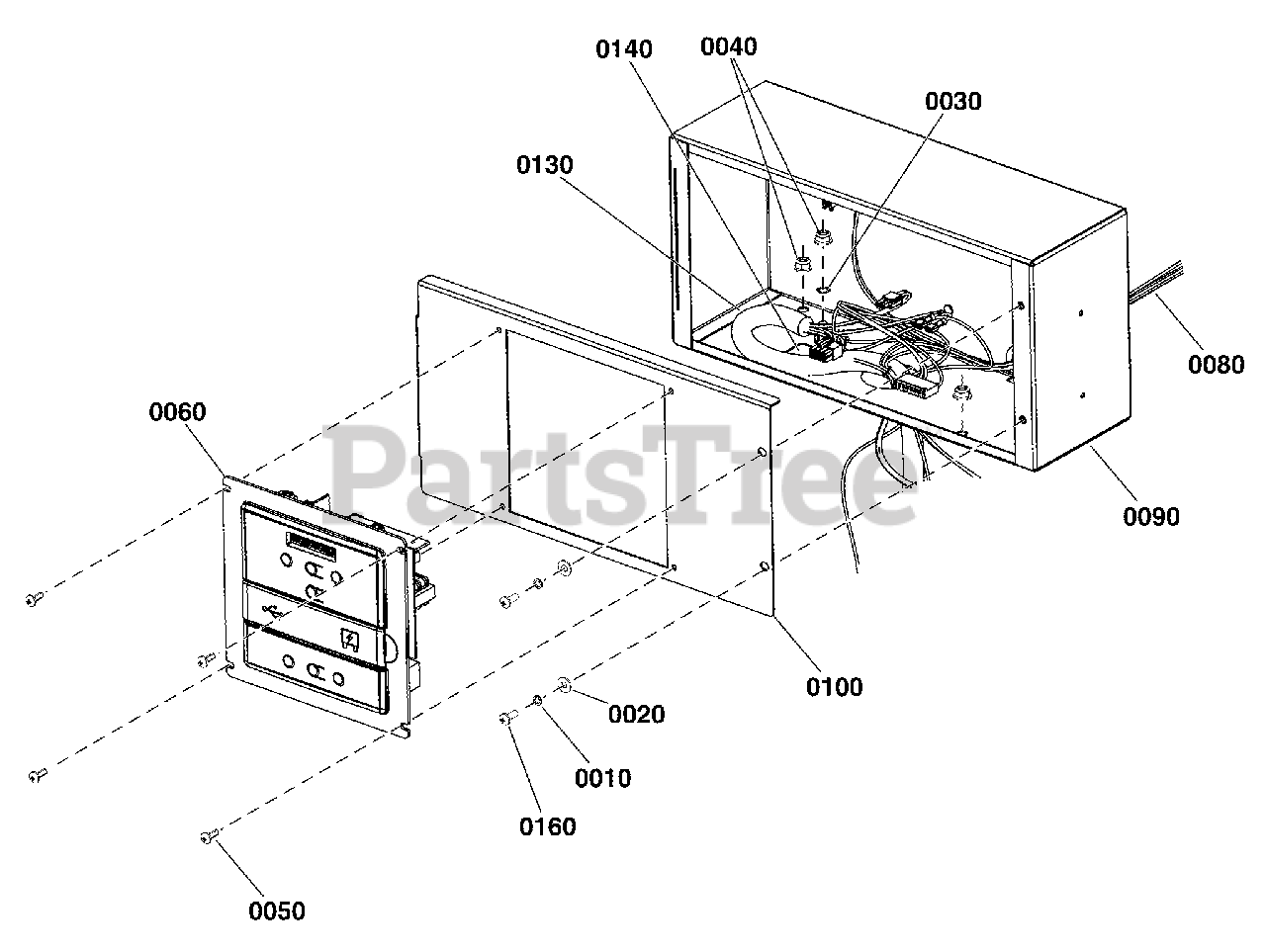

Control Panel Group Parts Diagram

  • Title

0010

Briggs & Stratton 22152GS

WASHER, Lock, #10

$2.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

Usually ships in 2-12 days

0

0040

NUT, 1/4-20, FLNG, LOCK

$

$

Not available

0050

Briggs & Stratton 205947GS

SCREW, Trilobular, #10-32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 319891GS

CONTROL PANEL
(Superseded to 315423GS)

$414.99

$

In Stock, Qty 8

0

0080

Briggs & Stratton 84001694

HARNESS, Wire

$210.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 770303

BOX-CONTROL

$110.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 770304

COVER-CONTROL BOX

$43.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 319289GS

HARNESS-WIRE

Note: (50 Hz Models: Order with Ref. # 0131)

$35.99

$

Usually ships in 2-12 days

0

0131

Briggs & Stratton 48526

LUG RING 3/8 22/18 I-T
(Superseded to 5048526)

Note: (Not Illustrated) (50 Hz Models Only)

$34.99

$

Usually ships in 2-12 days

0

0140

DECAL-GROUND

$

$

Not available

0160

Briggs & Stratton 36701GS

SCREW, 10-32 X 1/2, PPHMS

$2.99

$

Usually ships in 2-12 days

0
