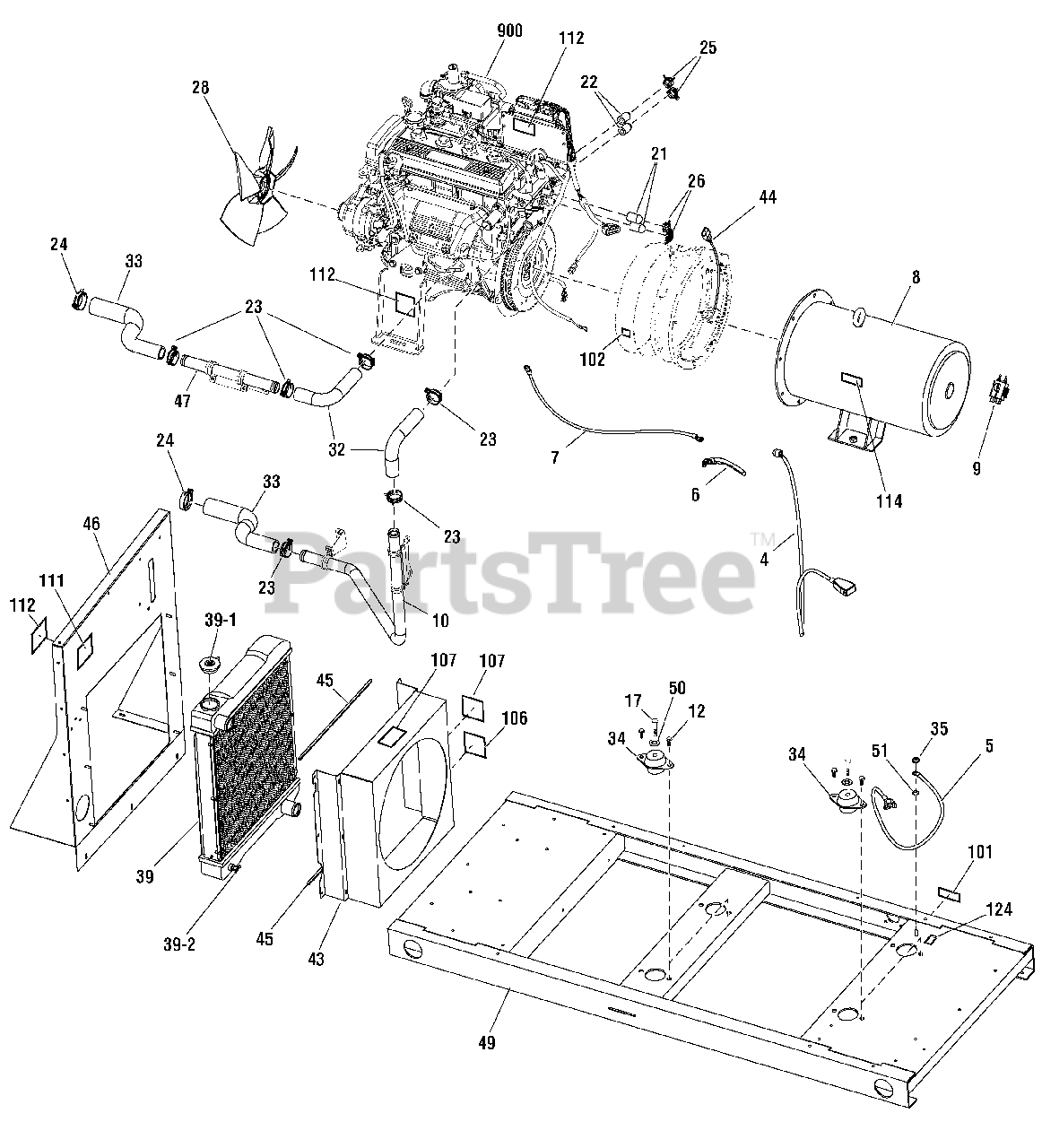

076107-00 - Briggs & Stratton 25kW Liquid Cooled Home Standby Generator with 200 Amp Transfer Switch Main Unit (317580) Parts Diagram

25kW Liquid Cooled Home Standby Generator with 200 Amp Transfer Switch

Main Unit (317580) Parts Diagram

  • Title

4

Briggs & Stratton 318369GS

WIRE

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 318370GS

WIRE

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 318371GS

WIRE

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 318372GS

WIRE

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 317592GS

ALTERNATOR

$5313.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66386GS

ASSY-BRUSH

$23.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 318521GS

TUBE
(Superseded to 707454)

$205.99

$

Usually ships in 2-12 days

0

12

* CAPSCREW, Hex Head Flange, M10 x 1.5 x 20

$

$

Not available

17

* CAPSCREW, Hex Head, M12 x 1.75 x 75

$

$

Not available

21

Briggs & Stratton 319775GS

CAP, Port, Rubber, 11/16"

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 319776GS

CAP, Port, Rubber, 5/16"

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 318541GS

CLAMP

$35.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 318542GS

CLAMP

$14.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 704218

CLAMP

$5.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704219

CLAMP

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 704220

FAN

$134.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 318520GS

HOSE

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 318519GS

HOSE

$25.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 204653GS

MOUNT-VIBRATION

$25.99

$

Usually ships in 2-12 days

0

35

* NUT, Flange, M8

$

$

Not available

39

Briggs & Stratton 318373GS

RADIATOR

Note: (Includes Ref. Nos. 39-1 & 39-2)

$680.99

$

Usually ships in 2-12 days

0

39-1

Briggs & Stratton 704673

CAP, Radiator

$58.99

$

Usually ships in 2-12 days

0

39-2

Briggs & Stratton 707487

VALVE-DRAIN

$11.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 319018GS

COVER-FAN

$237.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 318724GS

SENSOR

$37.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 707455

SEAL

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 317569GS

SUPPORT

$316.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 318522GS

TUBE
(Superseded to 707453)

$159.99

$

Usually ships in 2-12 days

0

49

BASE

$

$

Not available

50

* WASHER, Flat, M12

$

$

Not available

51

* WASHER, Ext Lock, M10

$

$

Not available

101

Briggs & Stratton 186643GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 704323

DECAL

$18.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 205396GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 205401GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 317591GS

** ENGINE

$6038.99

$

Usually ships in 2-12 days

0
