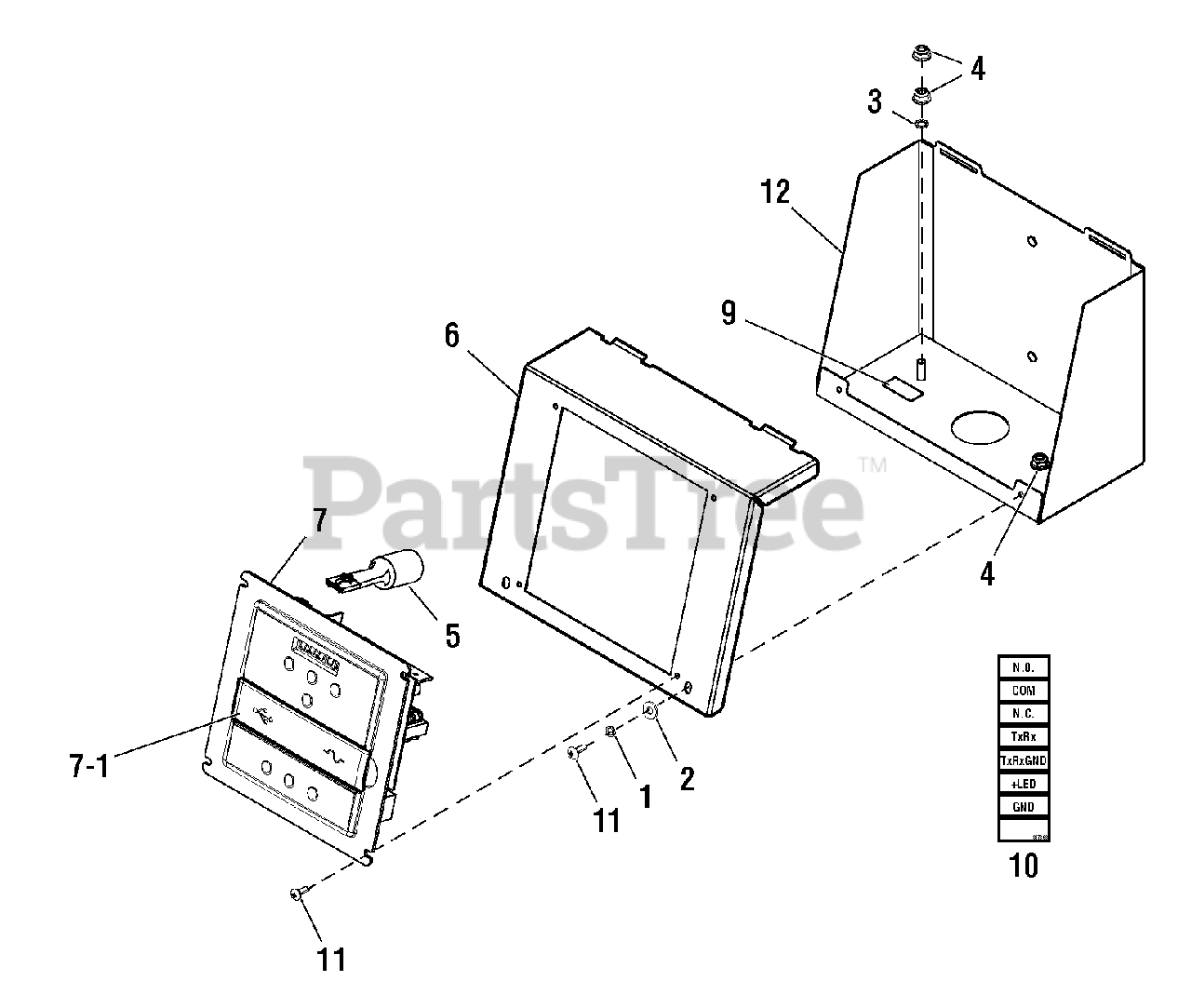

076060-02 - GE 60kW Liquid Cooled Home Standby Generator Control Panel (317986) Parts Diagram

GE 60kW Liquid Cooled Home Standby Generator

Control Panel (317986) Parts Diagram

  • Title

1

-----

* WASHER, Splitlock, #10

$

$

Not available

2

-----

* WASHER, Flat, #10

$

$

Not available

3

-----

* WASHER, Lock, Ext, M6

$

$

Not available

4

-----

* NUT, Flange, Nylock, 1/4-20

$

$

Not available

5

Briggs & Stratton 704281

CAPACITOR

$10.99

$

Usually ships in 2-12 days

0

6

-----

COVER

$

$

Not available

7

Briggs & Stratton 315423GS

CONTROL PANEL

$414.99

$

In Stock, Qty 9

0

7-1

Briggs & Stratton 319009GS

DOOR

Note: (Included with Ref. 7)

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 317368GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

11

-----

* SCREW, Trilobular, 10-32 x 3/4

$

$

Not available

12

-----

BOX-CONTROL PANEL

$

$

Not available

--

Briggs & Stratton 319289GS

HARNESS-WIRE

Note: (Not Illustrated)

$35.99

$

Usually ships in 2-12 days

0
