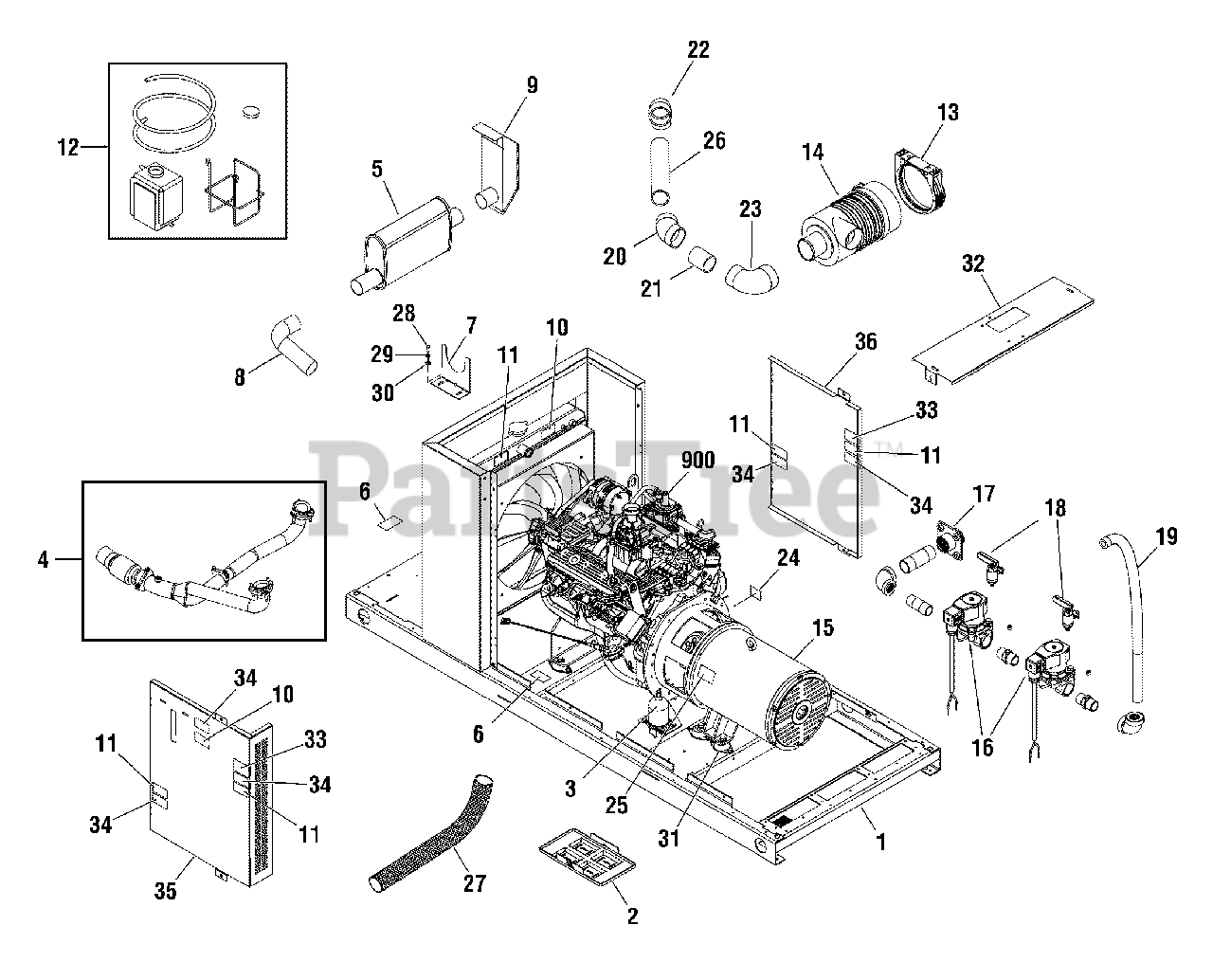

076052-00 - GE 48kW Liquid Cooled Home Standby Generator Main Unit (314936) Parts Diagram

GE 48kW Liquid Cooled Home Standby Generator

Main Unit (314936) Parts Diagram

  • Title

1

Briggs & Stratton 313453GS

BASE

$2796.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

HEATER

$

$

Not available

4

Briggs & Stratton 312096GS

KIT, Exhaust
(Superseded to 706616)

$323.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 310600GS

BRACKET, Muffler

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 311971GS

TUBE, Exhaust

$64.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205396GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

BOTTLE, Overflow

$42.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP

$54.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204275GS

FILTER, Air

$415.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207576GS

FILTER, Cartridge
(Superseded to 770029)

$92.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 314451GS

ALTERNATOR

$7787.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 314281GS

VALVE, Fuel

$602.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AF310518GS

COUPLER

$93.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 312788GS

VALVE, Ball

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 310810GS

HOSE, Fuel

$79.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 313106GS

ELBOW

$55.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 312696GS

TUBE

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206598GS

ADAPTER

$93.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 206539GS

ELBOW

$91.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312890GS

TUBE

$

$

Currently unavailable

27

Briggs & Stratton 206985GS

INSULATION

$80.99

$

Usually ships in 2-12 days

0

28

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

29

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

30

-----

* WASHER, Flat, 1/4

$

$

Not available

31

Briggs & Stratton 204653GS

MOUNT, Vibration

$25.99

$

Usually ships in 2-12 days

0

--

-----

* CAPSCREW, Hex Head, 1/2-13 x 3

$

$

Not available

--

-----

* WASHER, 1/2

$

$

Not available

--

-----

* NUT, 1/2-13

$

$

Not available

32

Briggs & Stratton B209900GS

BRACKET

$73.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 314302GS

PANEL

$289.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 314301GS

PANEL

$109.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 314737GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314738GS

MANUAL, Install

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL, Warning Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315324GS

KIT, LED Remote

Note: (Not Illustrated)

$38.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE, Flex

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206944GS

HOSE, Drain

Note: (Not Illustrated)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT, Touch Up, GE Silver

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314740GS

KIT, Manual ACC

Note: (Not Illustrated)

$159.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hardware, Battery

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208350GS

PAINT, Spray, GE Silver
(Superseded to 199475GS)

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187315GS

DECAL, Do Not Lift

Note: (Optional Accessory)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6168

KIT, Maintenance

Note: (Optional Accessory)

$411.99

$

Usually ships in 2-12 days

0
