076042-02 - GE 35kW Liquid Cooled Home Standby Generator Engine - 3.0L (319095) Parts Diagram

GE 35kW Liquid Cooled Home Standby Generator

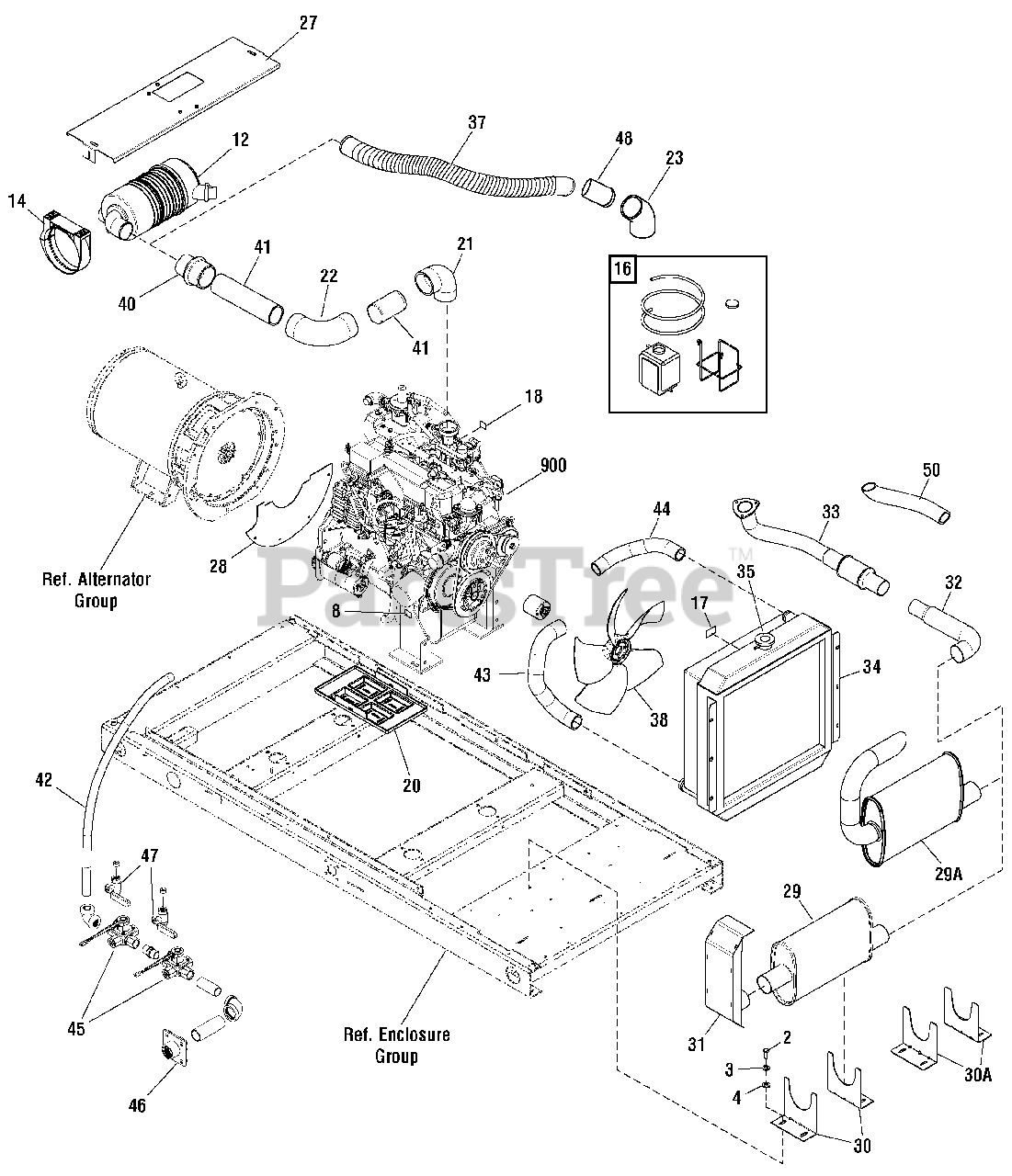

Engine - 3.0L (319095) Parts Diagram

  • Title

2

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

3

-----

* WASHER, Flat, 1/4

$

$

Not available

4

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

8

Briggs & Stratton 186649GS

DECAL-OIL DRAIN
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 204274GS

FILTER-AIR

$390.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205103GS

CLAMP

$46.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205226GS

BOTTLE-OVERFLOW

$42.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205396GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205623GS

TRAY-BATTERY

$22.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 206598GS

ELBOW

Note: (Used on models before Serial No. 1021772532)

$93.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206727GS

ELBOW

Note: (Used on models before Serial No. 1021772532)

$37.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 204869GS

ELBOW

Note: (Used on models with Serial No. 1021772532 and later)

$61.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B209900GS

BRACKET

$73.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B310532GS

COVER-DUST

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

Note: (Used on models before Serial No. 1022198500)

$531.99

$

Usually ships in 2-12 days

0

29A

Briggs & Stratton 707173

MUFFLER

Note: (Used on models with Serial No. 1022198500 and later)

$207.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 310600GS

BRACKET

Note: (Used on models before Serial No. 1022198500)

$29.99

$

Usually ships in 2-12 days

0

30A

Briggs & Stratton 707174

BRACKET

Note: (Used on models with Serial No. 1022198500 and later)

$12.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

Note: (Use with Ref. No 29 Only)

$531.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 311972GS

TUBE

$124.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312101GS

EXHAUST

$

$

Not available

34

Briggs & Stratton 312321GS

RADIATOR

$1012.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 314566GS

CAP-RADIATOR

$41.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314551GS

VALVE-DRAIN

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 318638GS

HOSE-INTAKE

Note: (Used on models with Serial No. 1021772532 and later)

$110.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 312708GS

FAN

$155.99

$

Usually ships in 2-12 days

0

40

-----

REDUCER

Note: (Not a serviceable part.) (Used on models before Serial No. 1021772532)

$

$

Not available

41

Briggs & Stratton 312906GS

TUBE

Note: (Used on models before Serial No. 1021772532)

$29.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 312923GS

HOSE

$94.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 313210GS

HOSE

$57.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 313211GS

HOSE

$34.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 314110GS

VALVE-FUEL
(Superseded to 706432)

$353.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton BC310518GS

COUPLING

$49.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 312788GS

VALVE-BALL

$16.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706399

COUPLER

Note: (Used on models with Serial No. 1021772532 and later)

$26.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 206985GS

INSULATION

$80.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE-3.0L

$

$

Not available

--

Briggs & Stratton 310811GS

CABLE-BATTERY, NEG

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310812GS

CABLE-BATTERY, POS

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0
