076031-01 - Briggs & Stratton 45kW Home Standby Generator Main Unit (312954a) Parts Diagram

45kW Home Standby Generator

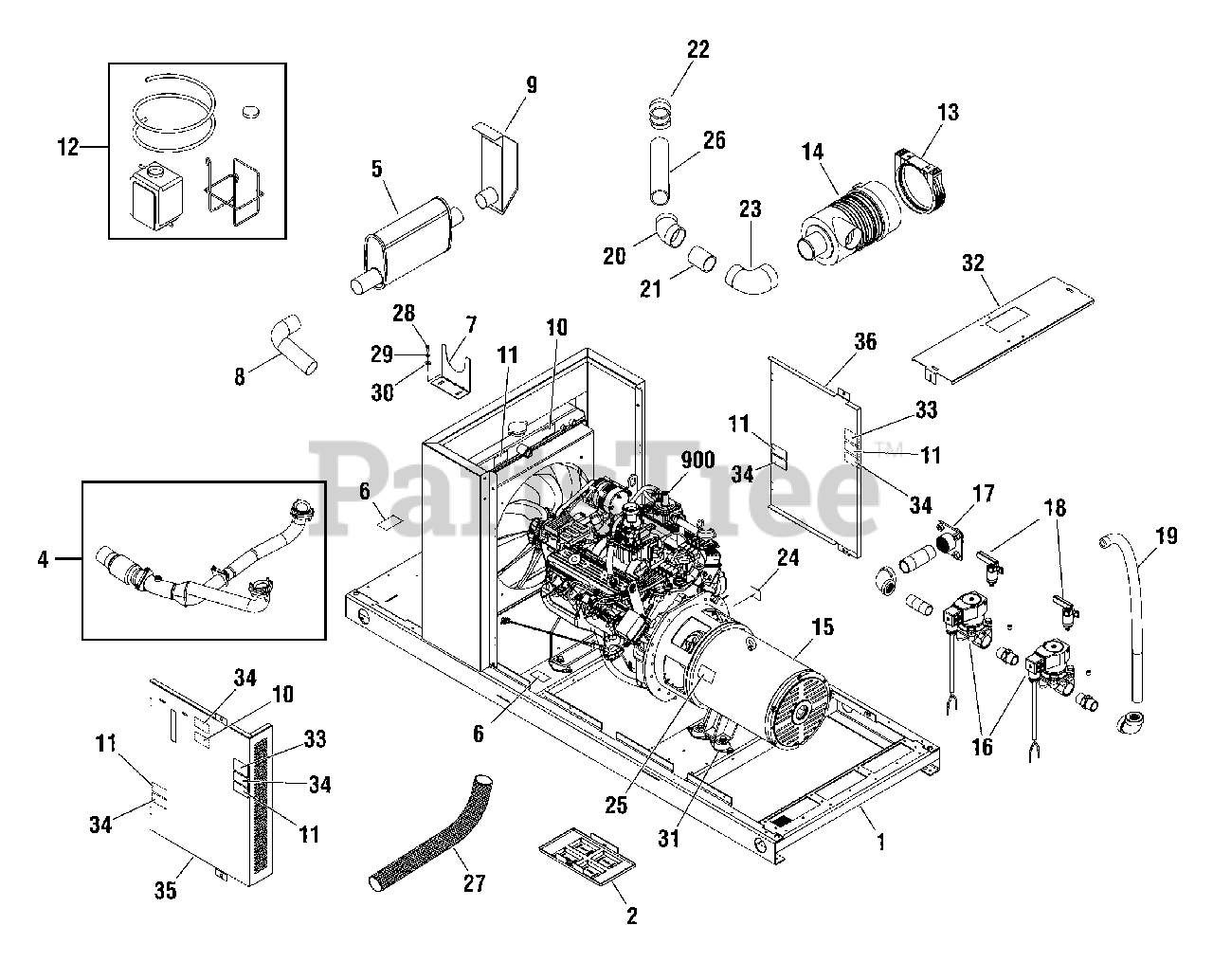

Main Unit (312954a) Parts Diagram

  • Title

1

-----

BASE

$

$

Not available

2

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 312096GS

KIT-EXHAUST
(Superseded to 706616)

$323.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 310600GS

BRACKET-MUFFLER

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 311971GS

TUBE, Exhaust

$64.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205396GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

BOTTLE-OVERFLOW

$42.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP

$54.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204275GS

FILTER-AIR

$415.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207576GS

FILTER-CARTRIDGE
(Superseded to 770029)

$92.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 312591GS

ALTERNATOR

$10040.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 314281GS

VALVE, Fuel

$602.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AA310518GS

COUPLER

$139.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 312788GS

VALVE, Ball

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 310810GS

HOSE-FUEL

$79.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 313106GS

ELBOW

$55.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 312696GS

TUBE

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206598GS

ADAPTER

$93.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 206539GS

ELBOW

$91.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312890GS

TUBE

$

$

Currently unavailable

27

Briggs & Stratton 206985GS

INSULATION

$80.99

$

Usually ships in 2-12 days

0

28

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

29

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

30

-----

* WASHER, Flat, 1/4

$

$

Not available

31

Briggs & Stratton 204653GS

MOUNT-VIBRATION

$25.99

$

Usually ships in 2-12 days

0

--

-----

* CAPSCREW, Hex Head, 1/2-13 x 3

$

$

Not available

--

-----

* WASHER, 1/2

$

$

Not available

--

-----

* NUT, 1/2-13

$

$

Not available

32

Briggs & Stratton B209900GS

BRACKET

$73.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 314302GS

PANEL

$289.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 314301GS

PANEL

$109.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 314984GS

KIT-MANUAL ACC

Note: (Not Illustrated)

$263.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312898GS

MANUAL-OPERATOR

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312050GS

MANUAL-INSTALL

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL-WARNING SPARK
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

KIT-LED REMOTE
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE-FLEX

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206944GS

HOSE-DRAIN

Note: (Not Illustrated)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT-HARDWARE, BATTERY

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT-TOUCH UP GE SILVER

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203374GS

PAINT-TOUCH UP CHARCOAL

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208350GS

PAINT-SPRAY GE SILVER
(Superseded to 199475GS)

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT-SPRAY CHARCOAL

Note: (Optional Accessory)

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187315GS

DECAL-Do Not Lift

Note: (Optional Accessory)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6168

KIT-MAINTENANCE

Note: (Optional Accessory)

$411.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6242

KIT-BLOCK HEATER

Note: (Optional Accessory)

$517.99

$

Usually ships in 2-12 days

0
