076021-0 - Briggs & Stratton 45kW Home Standby Generator Main Unit (311325) Parts Diagram

45kW Home Standby Generator

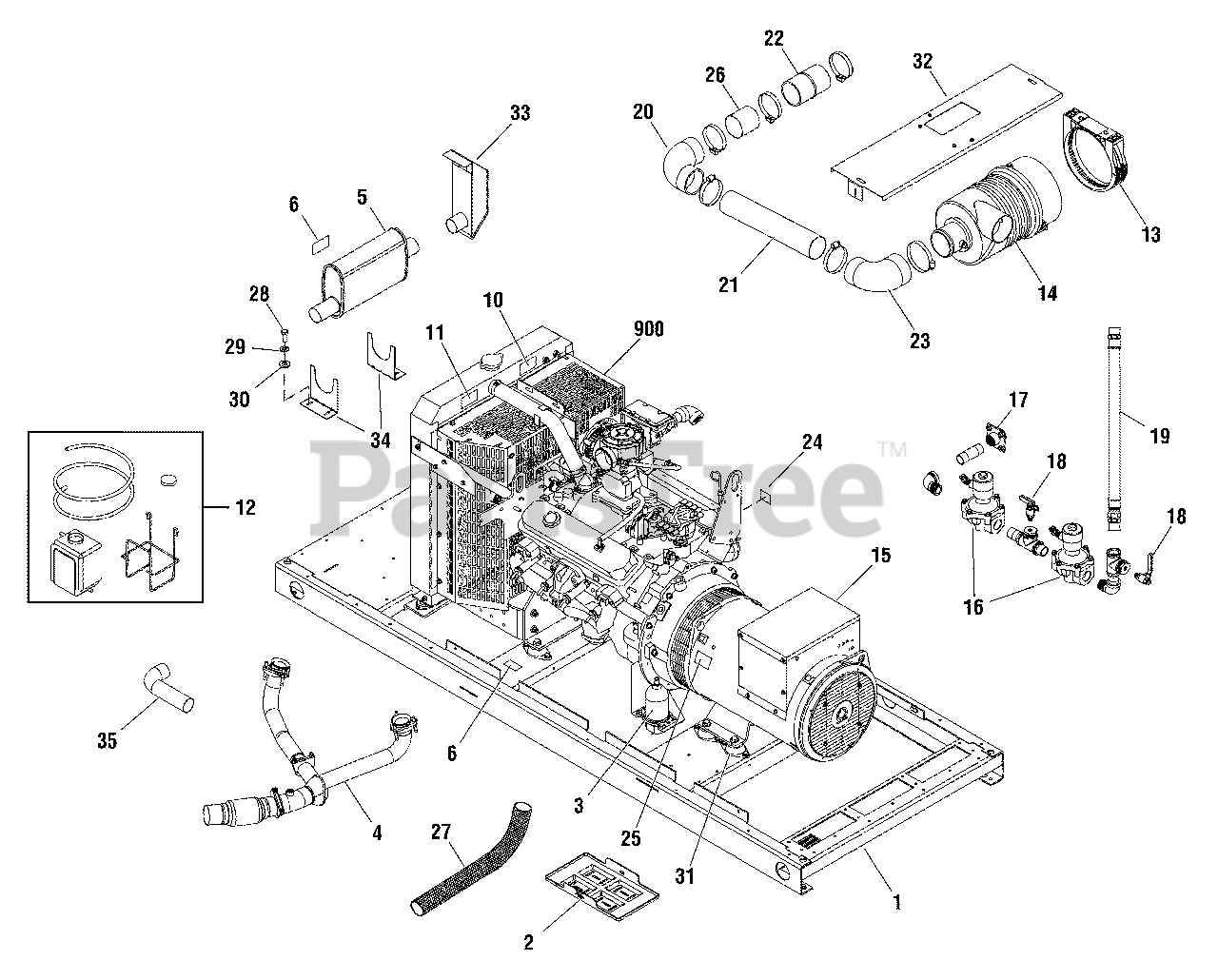

Main Unit (311325) Parts Diagram

  • Title

1

Briggs & Stratton 310552GS

BASE

$3413.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

HEATER

$

$

Not available

4

Briggs & Stratton 312096GS

KIT, Exhaust
(Superseded to 706616)

$323.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205396GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

BOTTLE, Overflow

$42.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP

$54.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204275GS

FILTER, Air

$415.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207576GS

FILTER, Cartridge
(Superseded to 770029)

$92.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 204341GS

ALTERNATOR

$8612.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207019GS

RECTIFIER, Bridge

$697.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207020GS

REGULATOR, Voltage

$1376.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 310454GS

VALVE, Fuel
(Superseded to 705916)

$531.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AA310518GS

COUPLER

$139.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 206626GS

VALVE, Ball

$73.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 310809GS

HOSE, Fuel

$89.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206727GS

ELBOW

$37.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 312695GS

TUBE

$33.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 310033GS

ADAPTER

$97.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 206539GS

ELBOW

$91.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 312696GS

TUBE

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206985GS

INSULATION

$80.99

$

Usually ships in 2-12 days

0

28

-----

* CAPSCREW, Hex, Head, 1/4-20 x 3/4

$

$

Not available

29

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

30

-----

* WASHER, 1/4

$

$

Not available

31

Briggs & Stratton 204653GS

MOUNT, Vibration

$25.99

$

Usually ships in 2-12 days

0

--

-----

* CAPSCREW, Hex, Head, 1/2-13 x 3

$

$

Not available

--

-----

* WASHER, 1/2

$

$

Not available

--

-----

* NUT, 1/2-13

$

$

Not available

32

Briggs & Stratton B209900GS

BRACKET

$73.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

$531.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 310600GS

BRACKET, Muffler

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 311971GS

TUBE

$64.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 209917GS

KIT, Manual ACC
(Superseded to 312832GS)

Note: (Not Illustrated)

$263.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208740GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208742GS

MANUAL, Installation

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206992GS

MANUAL, Engine

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL, Warning Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841281

SWITCH, Oil Pressure

Note: (Not Illustrated)

$32.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 206533GS

SWITCH, Temp

Note: (Not Illustrated)

$99.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

KIT, LED Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206944GS

HOSE, Oil Drain

Note: (Not Illustrated)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT, Touch Up, GE Silver

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203374GS

PAINT, Touch Up, Charcoal

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hardware, Battery

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208350GS

PAINT, Spray, GE Silver
(Superseded to 199475GS)

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Spray, Charcoal

Note: (Optional Accessory)

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187315GS

DECAL, Do Not Lift

Note: (Optional Accessory)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6168

KIT, Maintenance

Note: (Optional Accessory)

$411.99

$

Usually ships in 2-12 days

0
