076001NG-0 - Briggs & Stratton 45kW Home Standby Generator Main Unit (207041) Parts Diagram

45kW Home Standby Generator

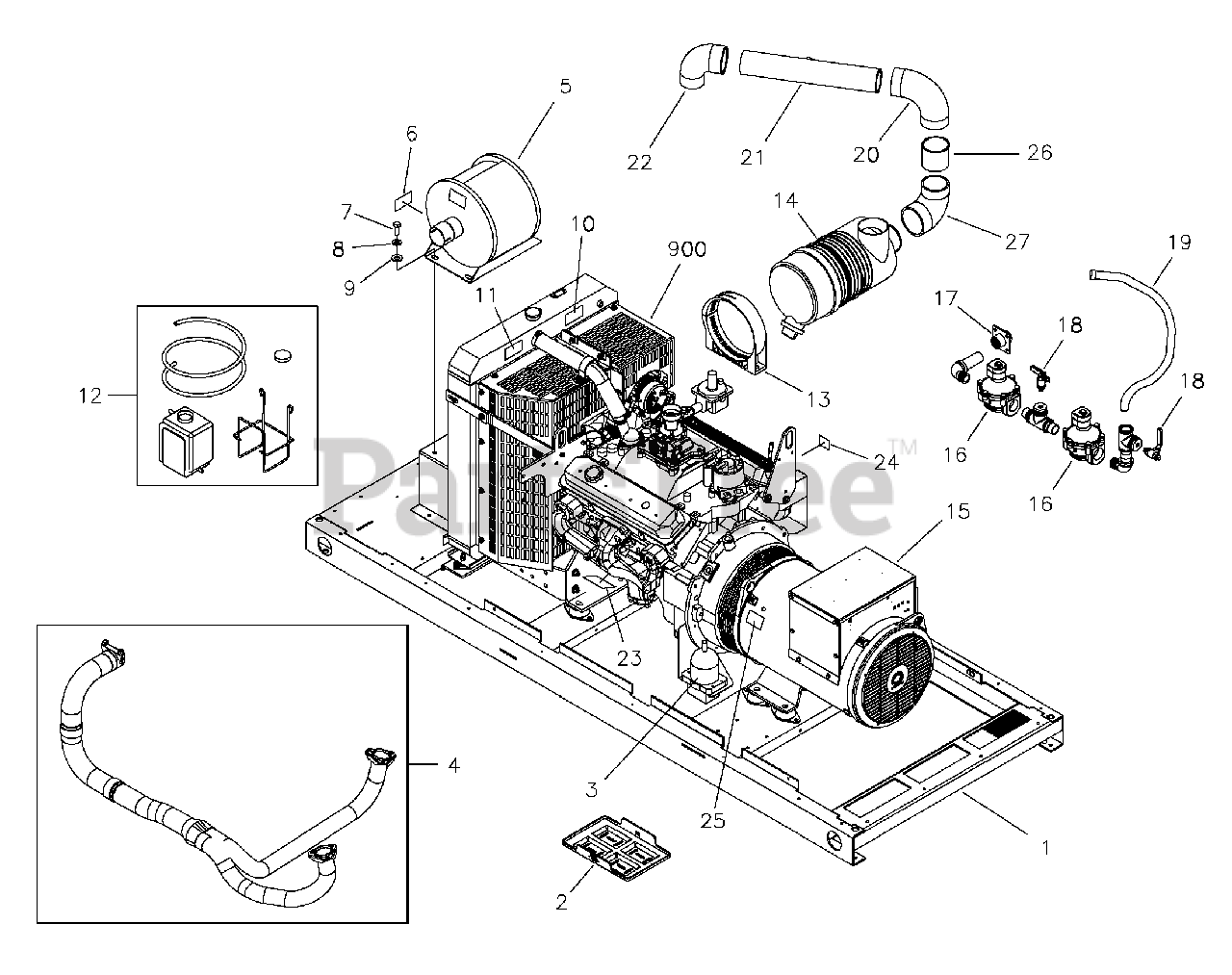

Main Unit (207041) Parts Diagram

  • Title

1

Briggs & Stratton AA204791GS

BASE

$3103.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

ASSY, Heater, Tank

$

$

Not available

4

Briggs & Stratton 205043GS

KIT, Exhaust

$1202.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 204654GS

SILENCER, Muffler

$1551.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL, Burn Hazard
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

*

HHCS, 5/16 - 18 x 1

Note: (Purchase locally)

$

$

Not available

8

*

WASHER, 5/16 - M8, Lock

Note: (Purchase locally)

$

$

Not available

9

*

WASHER, 5/16 - M8, Flat

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 205396GS

DECAL, Warning Hot Coolant

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL, Warning Moving Parts
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$42.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP, Air Cleaner

$54.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204275GS

ASSY, Air Cleaner

$415.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207576GS

Cartridge, Air Filter
(Superseded to 770029)

$92.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 204341GS

ASSY, Alternator

$8612.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207019GS

Assy, Rectifier

$697.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207020GS

Regulator, Voltage

$1376.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 206120GS

ASSY, Fuel Valve
(Superseded to 316559GS)

$531.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AA204802GS

COUPLER, Fuel System

$102.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 206626GS

VALVE, Ball 1/4"

$73.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 206455GS

ASSY, Hose, Fuel

$248.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206727GS

ELBOW, Rubber

$37.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 206650GS

TUBE, Inlet, Air

$325.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206598GS

ELBOW, Rubber

$93.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 200409GS

DECAL, Warning, Hot

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL, Explosion Hazard

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 206729GS

TUBE, Inlet, Air

$73.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206539GS

ELBOW, Rubber

$91.99

$

Usually ships in 2-12 days

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 204308GS

KIT, Manual

Note: Parts Not Illustrated

$178.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205051GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205049GS

MANUAL, Install

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206992GS

MANUAL, Engine, PSI

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841281

SWITCH, Oil Pressure

Note: Parts Not Illustrated

$32.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 206533GS

SWITCH, Temperature

Note: Parts Not Illustrated

$99.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198866GS

ASSY, Wall Plate
(Superseded to 313326GS)

Note: Parts Not Illustrated

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE, Flex

Note: Parts Not Illustrated

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206944GS

ASSY, Oil Drain Hose

Note: Parts Not Illustrated

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE, ATO Type 15amp

Note: Parts Not Illustrated

$2.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 203374GS

PAINT, Touch-Up, Continuum Charcoal, 1/2oz.

Note: Parts Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch-Up, Metallic Silver, 1/2oz.

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hold Down Battery

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207025GS

KIT, Decals, Service

Note: Parts Not Illustrated

$38.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Touchup, Spray, Silver, 12oz

Note: Optional Accessories

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Touchup, Spray, Continuum Charcoal, 12oz

Note: Optional Accessories

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207244GS

SET, French Decals, Adhesive

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 207422GS

DECAL, Do Not Lift, French

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 6168

KIT, Maintenance

Note: Optional Accessories

$411.99

$

Usually ships in 2-12 days

0
