074010-0 - Briggs & Stratton 8 gallon Air Compressor, 11.0 CFM Air Compressor Parts Diagram

8 gallon Air Compressor, 11.0 CFM

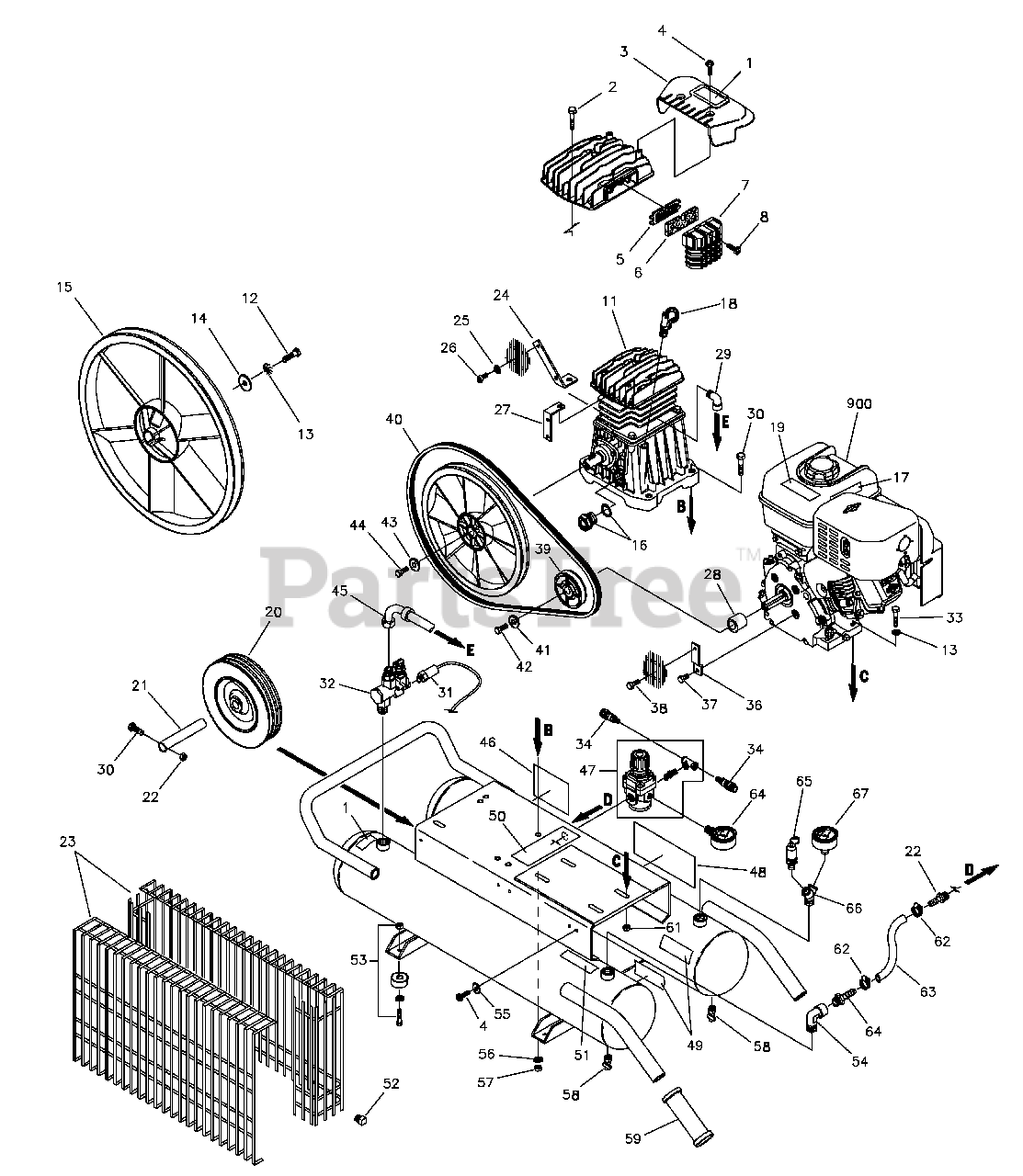

Air Compressor Parts Diagram

  • Title

1

Briggs & Stratton 199175GS

Decal, Hot Surface

$14.99

$

Usually ships in 2-12 days

0

2

Screw, M8 x 45

Note: (Purchase locally)

$

$

Not available

3

Briggs & Stratton 200699GS

Conveyor, Air

$31.99

$

Usually ships in 2-12 days

0

4

PPHMS, 5 x 12

Note: (Purchase locally)

$

$

Not available

5

Briggs & Stratton 201389GS

Plate, Filter

$

$

Currently unavailable

6

Briggs & Stratton 200697GS

Element, Filtering

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 201390GS

Filter, Intake

$11.99

$

Usually ships in 2-12 days

0

8

PPHMS, 4 x 18

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton 200698GS

Gasket

$17.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 201382GS

Kit, Valve Plate Set

$

$

Currently unavailable

11

Briggs & Stratton 201400GS

Assy, Pump

$391.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 x 25

Note: (Purchase locally)

$

$

Not available

13

Washer, M8, Shakeproof, Int

Note: (Purchase locally)

$

$

Not available

14

Washer

Note: (Purchase locally)

$

$

Not available

15

Briggs & Stratton 200702GS

Flywheel

$163.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200686GS

Oil Level Sight Glass

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200538GS

Decal, Warning, Hot Muffler

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 201398GS

Plug, Breather Pipe

$8.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 200537GS

Decal, Warning, Fuel Vapors

$14.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 201061GS

Wheel

$133.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 201062GS

Pin, Wheel

$

$

Currently unavailable

22

Nut Lock M6

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 200696GS

Guard, Belt

$110.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 201401GS

Plate

$62.99

$

Usually ships in 2-12 days

0

25

Washer, M5

Note: (Purchase locally)

$

$

Not available

26

Screw, Self Threading, M5 x 14

Note: (Purchase locally)

$

$

Not available

27

Briggs & Stratton 201402GS

Spacer

$19.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 201405GS

Spacer

$8.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 201404GS

Connector, Elbow

$20.99

$

Usually ships in 2-12 days

0

30

HHCS, M10 x 45

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 201060GS

Accelerator, Pneumatic

$63.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 201064GS

Valve, Auto Unloading

$267.99

$

Usually ships in 2-12 days

0

33

HHCS, M8 x 45

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 200677GS

Coupler, Quick Connect

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 201420GS

Guage, Pressure

$53.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 201403GS

Plate

$27.99

$

Usually ships in 2-12 days

0

37

HHCS, M8 x 16

Note: (Purchase locally)

$

$

Not available

38

SHCS, M6 x 16

Note: (Purchase locally)

$

$

Not available

39

Briggs & Stratton 200695GS

Pulley

$57.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 200693GS

Belt

$32.99

$

Usually ships in 2-12 days

0

41

Washer

Note: (Purchase locally)

$

$

Not available

42

HHCS, 5/16 x 25

Note: (Purchase locally)

$

$

Not available

43

Washer

Note: (Purchase locally)

$

$

Not available

44

Screw

Note: (Purchase locally)

$

$

Not available

45

Briggs & Stratton 201063GS

Infeed Tube

$155.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 199173GS

Decal, Warning

$17.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 201413GS

Assy, Pressure Reducer

$310.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 200535GS

Decal, Warning

$17.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 199739GS

Decal, Tank Drain

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 200775GS

Decal, Starting Instructions

$8.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 200536GS

Decal, Warning, Moving Parts

$8.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 201409GS

Clamp, Belt Guard

$4.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192310GS

Kit, Vibration Mount

Note: Includes Qty Of 2

$9.99

$

In Stock, Qty 11

0

54

Briggs & Stratton 201419GS

Connector, Elbow

$21.99

$

Usually ships in 2-12 days

0

55

Washer, M6

Note: (Purchase locally)

$

$

Not available

56

Washer, M10

Note: (Purchase locally)

$

$

Not available

57

Nut, M10

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 200675GS

Tap, Discharge

$35.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 201411GS

Handle, Rubber

$34.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 201408GS

Fitting, Hose Tail

$31.99

$

Usually ships in 2-12 days

0

61

Nut, M8 with Washer

Note: (Purchase locally)

$

$

Not available

62

Clamp, Hose

Note: (Purchase locally)

$

$

Not available

63

Briggs & Stratton 201418GS

Hose

$13.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 201417GS

Fitting, Hose Tail

$17.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 201414GS

Valve, Safety

$48.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 201416GS

Adapter

$13.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 201415GS

Guage, Pressure

$41.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 203721GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200774GS

Decal, Unloader Valve

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201770GS

Oil, Compressor

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 203245GS

Kit, Decal, Srv

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton BB3061BGS

Oil Bottle, 18oz Engine
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0
