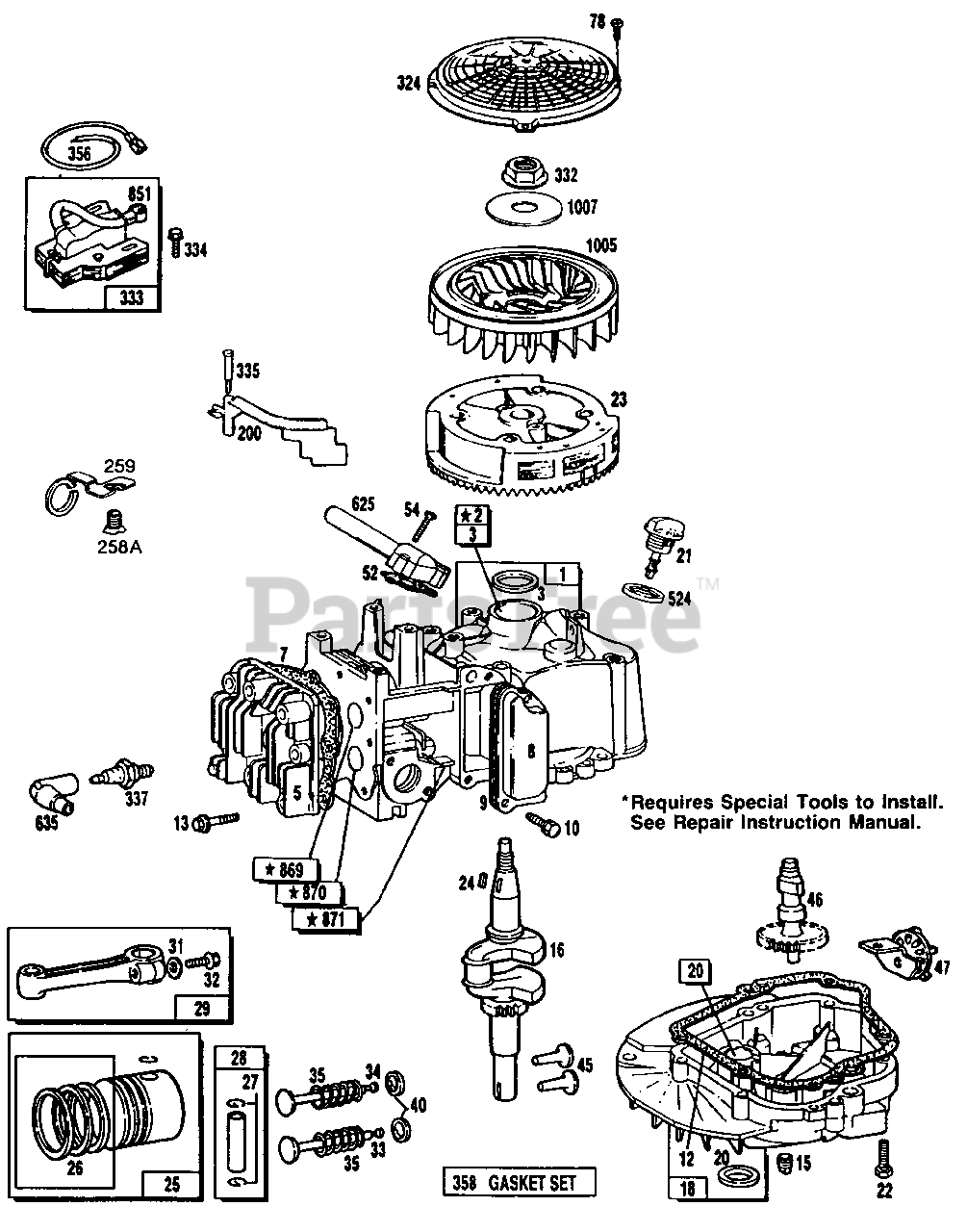

074 R (119-074R100) - Cub Cadet Walk-Behind Mower Engine (1989) B&S 3.5 HP 100708-3120-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

B&S 3.5 HP 100708-3120-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-490567

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-293708

Bushing Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

5

Cub Cadet BS-213041

Head Cylinder

$

$

Currently unavailable

7

Cub Cadet BS-271917

Gasket Cylinder Head

Note: (Included in Gasket Set-Part No. BS-490563)

$10.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-399717

Breather Valve Chamber
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-271904

Gasket Valve Cover
(Superseded to BS-699833)

Note: (Included in Gasket Set-Part No. BS-490563)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94222

Screw Breather Mounting Sem

$

$

Not available

12

Cub Cadet BS-271903

Gasket Crankcase

Note: (Included in Gasket Set-Part No. BS-490563)

$8.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94221

Screw Cylinder Hd.
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

15

Cub Cadet BS-94239

Plug Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-262266

Crankshaft (25 mm)

$

$

Currently unavailable

18

Cub Cadet BS-490747

Sump Engine

$

$

Not available

20

Cub Cadet BS-399781

Seal Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

21

Cub Cadet BS-280663

Plug Oil Filler

$

$

Currently unavailable

22

Cub Cadet BS-94220

Screw Sump Mtg. Sem
(Superseded to BS-691092)

$3.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-399011

Flywheel Magneto

$109.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-490564

Piston Ass'y. Standard

$

$

Currently unavailable

Cub Cadet BS-490797

Piston Ass'y. .010" O.S.

$

$

Currently unavailable

Cub Cadet BS-490799

Piston Ass'y. .020" O.S.

$

$

Currently unavailable

Cub Cadet BS-490801

Piston Ass'y. .030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-490565

Ring Set Std. Piston

$25.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490798

Ring Set .010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-490800

Ring Set .020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-490802

Ring Set .030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assembly Piston Standard

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Assembly Piston .005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-490566

Rod Assembly Connecting

$39.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222282

Washer Flat

Note: (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-93670

Screw Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-262228

Valve Exhaust

$29.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-262227

Valve Intake

$22.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-262224

SpringValve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-262204

Tappet Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-490504

Gear Cam

$69.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-399716

Oil Slinger Gear and Bracket

$23.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-271906

Gasket Intake Elbow

Note: (Included in Gasket Set-Part No. BS-490563)

$4.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-94266

Screw Intake Elbow Mounting

$

$

Currently unavailable

78

Cub Cadet BS-94321

Screw Screen Mounting

$

$

Not available

200

Cub Cadet BS-280664

Blade Governor

$12.99

$

Usually ships in 2-12 days

0

258A

Cub Cadet BS-94037

Screw Flat Hd.

$

$

Currently unavailable

259

Cub Cadet BS-223834

BracketCable

$

$

Currently unavailable

324

Cub Cadet BS-280784

Screen Rotating

$9.49

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-94232

Nut Flywheel

$

$

Currently unavailable

333

Cub Cadet BS-490748

Armature Magneto

$52.99

$

Usually ships in 2-12 days

0

334

Cub Cadet BS-93381

Screw Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug Spark ( with Gasket) 1-1/2'' High 37-42 mm.

$4.99

$

In Stock, only 2 left!

0

356

Cub Cadet BS-398808

Wire Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-490563

Gasket Set

$25.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-271983

Seal Filler
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 14

0

625

Cub Cadet BS-490002

Tube Fuel Intake

$

$

Currently unavailable

635

Cub Cadet BS-66538

Elbow Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

851

Cub Cadet BS-221798

Terminal Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-213175

Seat Intake Valve
(Superseded to BS-691155)

Note: (Standard)

$8.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213174

Seat Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-262001

Guide Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-280645

Fan Flywheel

$

$

Not available

1007

Cub Cadet BS-223665

Washer Fan

$6.49

$

Usually ships in 2-12 days

0
