074 R (119-074R100) - Cub Cadet Walk-Behind Mower (1989) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

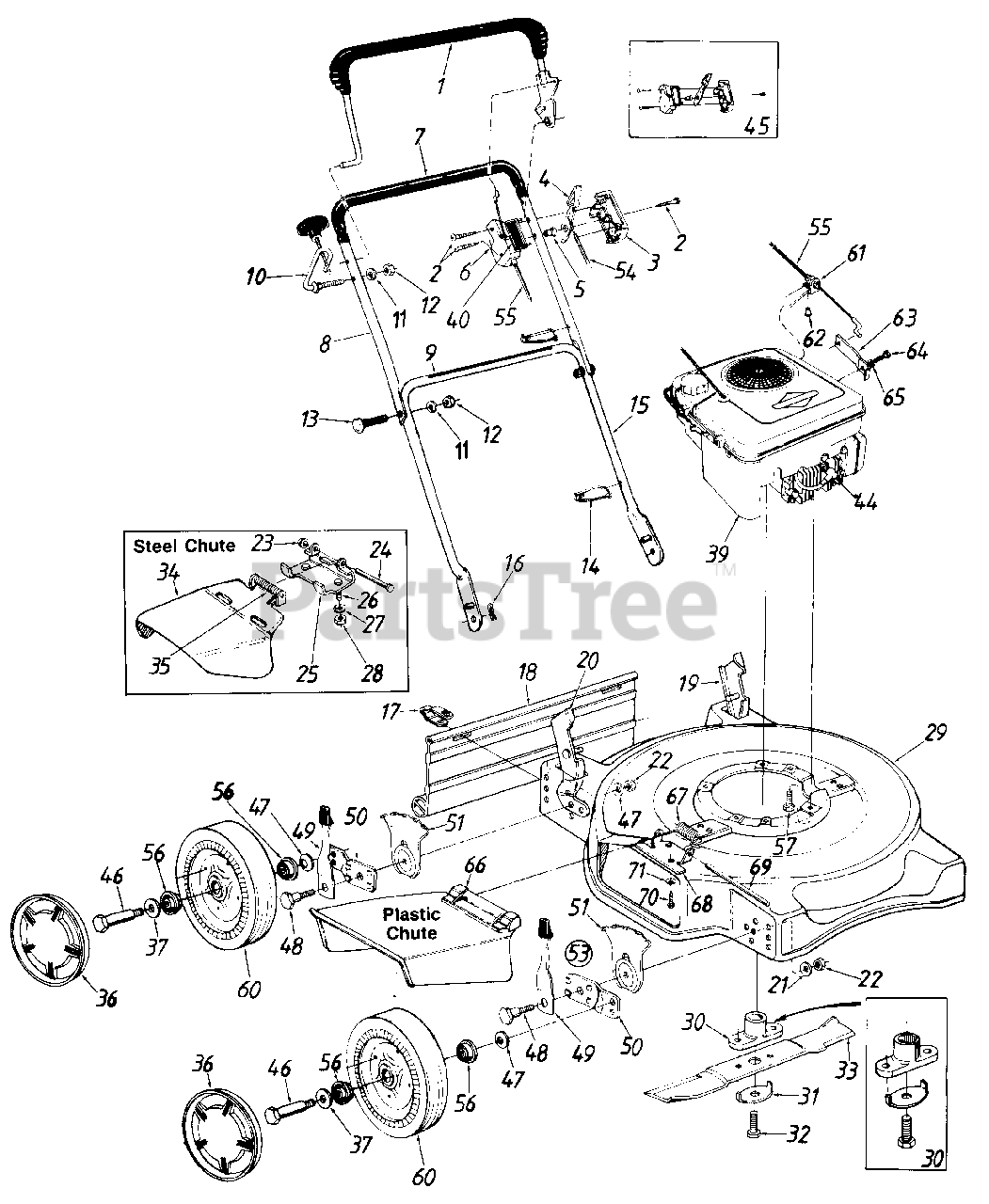

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

2

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

3

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

4

Cub Cadet 731-0528A

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

6

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

7

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

8

Cub Cadet 749-0755

HANDLE-UPPER
(Superseded to 749-0756A)

$

$

Not available

9

Cub Cadet 777-5776

LABEL

$

$

Currently unavailable

10

Cub Cadet 710-0842B

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

11

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 x 1.38

$

$

Not available

14

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet 749-0372B

LOWER HANDLE
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

16

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 17098

CLIP-HINGE
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-0872

FLAP-RR
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

Cub Cadet 17189

BRACKET ASSY-HDLE-LH

$

$

Not available

20

Cub Cadet 17188

BRACKET ASSY-HDLE-RH

$

$

Not available

21

Cub Cadet 736-0356

WASHER-BELL .390 ID x 1.375 x .062
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 726-0106

NUT-PUSH

Note: Optional Parts

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 711-0555

PIN-PIVOT

$

$

Not available

25

Cub Cadet 11130

PLATE-ADAPTER

$

$

Not available

26

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

27

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

28

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 17036

DECK ASSEMBLY-20IN

Note: Color Code 498

Variations

Cub Cadet 17036-0480

DECK ASSEMBLY-20INBRILLIANT G - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17036-0483

DECK ASSEMBLY-20INCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17036-0498

DECK ASSEMBLY-20IN(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17036-0629

DECK ASSEMBLY-20INSILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17036-0638

DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17036-0662

DECK ASSEMBLY-20IN(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

30

Cub Cadet 753-0463

KIT-BLADE ADAPTER-SPLINED
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0415

KIT-BLADE MOUNTING
(Superseded to 753-0525)

$

$

Not available

32

Cub Cadet 710-0757

SCREW-HEX 7/16-20 x 1.50

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet 742-0520

BLADE-19.88IN
(Superseded to 942-0620)

$

$

Not available

34

Cub Cadet 14944

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

35

Cub Cadet 732-0253

SPRING-TORSION

$

$

Not available

36

Cub Cadet 731-0982A

HUB CAP
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

37

Cub Cadet 736-0160

WASHER-FL-.531 x .930 OD x .050

$4.49

$

In Stock, only 2 left!

0

39

Note: Engine

$

$

Not available

40

Cub Cadet 777-5774

DECAL

$

$

Currently unavailable

44

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

45

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available

46

Cub Cadet 738-0102

SCREW-SHLD .498 DIA x 1.450

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 736-0105

WASHER-BELL .400 ID x .88 x .060

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

SCREW-SHLD

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 14832

LEVER & KNOB ASSY
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

Cub Cadet 15262B

BAR-PIVOT

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

Cub Cadet 15261A

PLATE-HGT ADJ
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

53

Cub Cadet 14578

ADJUSTER ASSY-HGT-RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

ADJUSTER ASSY-HGT-LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

Cub Cadet 746-0673

WIRE-THROTTLE
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

55

Cub Cadet 746-0477A

CABLE-CONTROL
(Superseded to 946-0477A)

$

$

Not available

56

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-0654A

SCREW-HEX

$4.49

$

In Stock, only 3 left!

0

60

Cub Cadet 734-1517A

WHEEL ASSY W/TIRE
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 16703

BRACKET-CABLE MTG

$

$

Not available

62

Cub Cadet 728-0171

RIVET

$

$

Not available

63

Cub Cadet 16704

BRACKET-MTG

$

$

Currently unavailable

64

Cub Cadet 710-0473

SCREW-TRUSS MACH #10-24 x .50

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 731-1034

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

67

Cub Cadet 732-0593

SPRING-TORSION
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

68

Cub Cadet 17032

PLATE-ADAPTER
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

69

Cub Cadet 747-0710

PIN-HINGE
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0
