074 (116-074-100) - Cub Cadet Walk-Behind Mower (1986) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

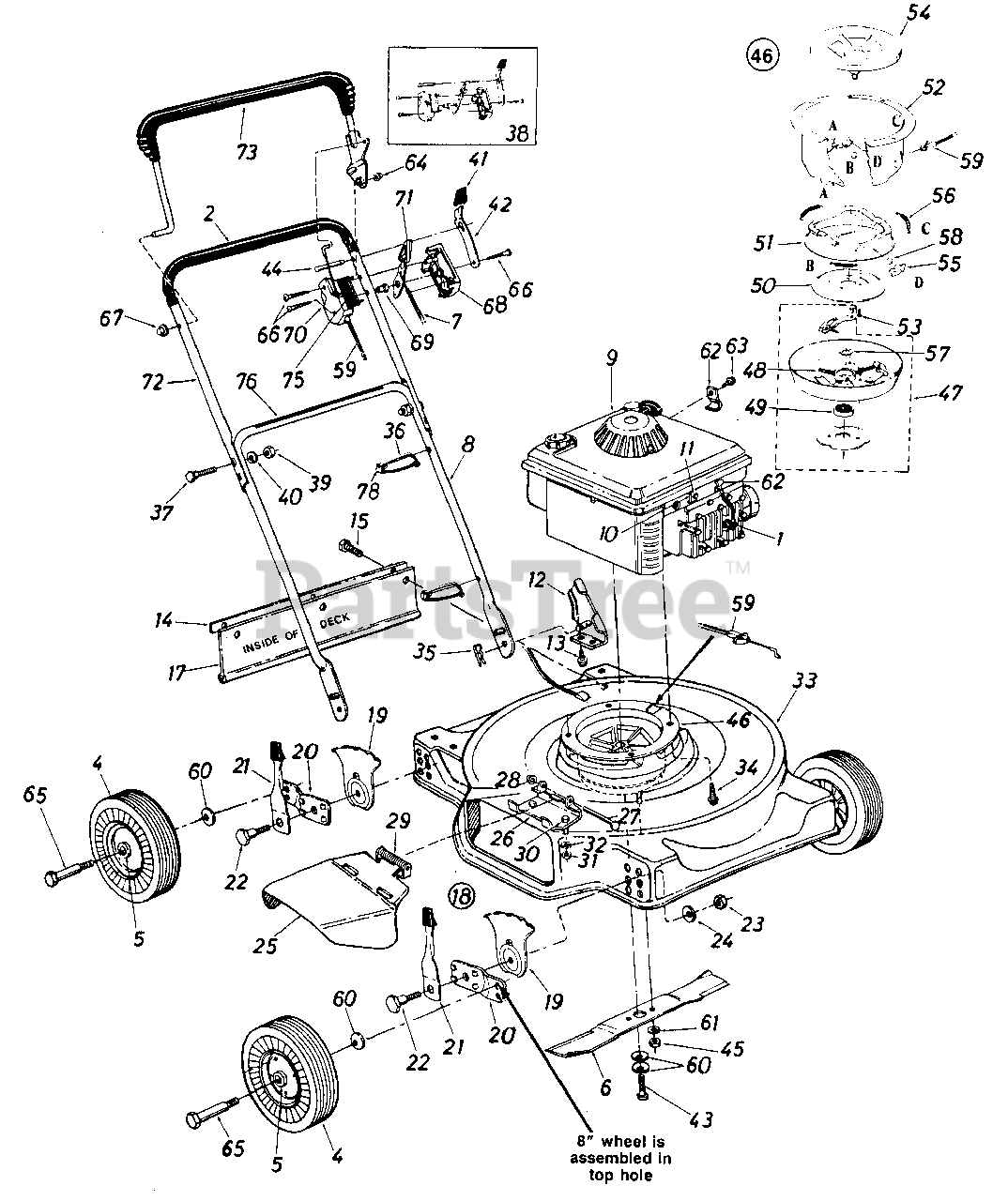

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

2

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

4

Cub Cadet 734-0894

WHEEL ASSY

$

$

Not available

5

Cub Cadet 741-0262

BEARING-FORTIFLEX

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 742-0220

BLADE-20IN

$

$

Not available

7

Cub Cadet 746-0632

WIRE-THROTTLE
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-0373

LOWER HANDLE
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

9

Note: Engine

$

$

Not available

10

Cub Cadet 751-0442

CLAMP-CASING

$

$

Not available

11

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 12935

BRACKET ASSY-HDLE

$

$

Not available

Cub Cadet 12936

BRACKET ASSY-HDLE

Note: (Not Shown)

$

$

Not available

13

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 14846

STRIP-RETAINING

$

$

Not available

15

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0575

FLAP-RR
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 14578

ADJUSTER ASSY-HGT-RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

ADJUSTER ASSY-HGT-LH
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

19

Cub Cadet 15261

PLATE-HGT ADJ
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

20

Cub Cadet 15262

BAR-PIVOT
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet 14832

LEVER & KNOB ASSY
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

22

Cub Cadet 738-0507

SCREW-SHLD
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

25

Cub Cadet 14944

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

26

Cub Cadet 11130

PLATE-ADAPTER

$

$

Not available

27

Cub Cadet 711-0555

PIN-PIVOT

$

$

Not available

28

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-0253

SPRING-TORSION

$

$

Not available

30

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

31

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

Cub Cadet 16300

DECK ASSEMBLY-20IN

Note: Color Code 499

$

$

Currently unavailable

34

Cub Cadet 710-0642

SCREW-HEX HD TAP 1/4-20 X 7.5

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 725-0157

TIE-CABLE

$3.99

$

In Stock, only 2 left!

0

37

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

38

Cub Cadet 753-0431

KIT-THROTTLE CONTROL

$

$

Not available

39

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-0401

SPRING-LOCKOUT

$

$

Not available

43

Cub Cadet 710-0818

SCREW-HEX 3/8-24 X 2.00

$6.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 711-0719

PIN-LOCKING

$

$

Not available

45

Cub Cadet 712-0328

NUT-HEX 3/8-24
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

46

Cub Cadet 717-0482

CLUTCH ASSY-BLADE BRAKE-PUSH

$

$

Not available

47

Cub Cadet 14300

HOUSING-CLUTCH BLADE

$

$

Not available

48

Cub Cadet 732-0396

SPRING

$

$

Not available

49

Cub Cadet 741-0124

BEARING-BALL
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

50

Cub Cadet 14304

CONE-CLUTCH

$

$

Not available

51

Cub Cadet 14305

CONE-BRAKE CUP

$

$

Currently unavailable

52

Cub Cadet 14306

HOUSING-CLUTCH

$

$

Currently unavailable

53

Cub Cadet 710-0875

SCREW-HEX WASH 1/4-20X.75

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 719-0256

ADAPTER-FAN

$

$

Not available

55

Cub Cadet 731-0520

BALL-BLOCK

$

$

Not available

56

Cub Cadet 732-0397

SPRING-EXTENSION

$

$

Not available

57

Cub Cadet 736-0333

WASHER-FL .687 X 1.060 X .032

$

$

Not available

58

Cub Cadet 741-0326

BALL-STEEL

$

$

Not available

59

Cub Cadet 746-0402A

CABLE-CLUTCH 43 IN

$

$

Not available

60

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

63

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 726-0111

NUT-PUSH

$

$

Not available

65

Cub Cadet 738-0102

SCREW-SHLD .498 DIA X 1.450

$9.99

$

In Stock, Qty 10

0

66

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

67

Cub Cadet 726-0135

NUT-SPEED

$6.99

$

In Stock, only 1 left!

0

68

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

69

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

70

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

71

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

72

Cub Cadet 749-0536

HANDLE-UPPER
(Superseded to 749-0538E-0637)

$

$

Not available

73

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

75

Cub Cadet 777-5772

LABEL

$

$

Currently unavailable

76

Cub Cadet 777-5775

LABEL-BBC-INST

$

$

Currently unavailable

78

Cub Cadet 726-0241

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

Cub Cadet ~8074-100-6

Note: HARDWARE PACK

$

$

Currently unavailable
