073022-0 - VOX 198 GPM Trash Pump Trash Pump Parts Diagram

198 GPM Trash Pump

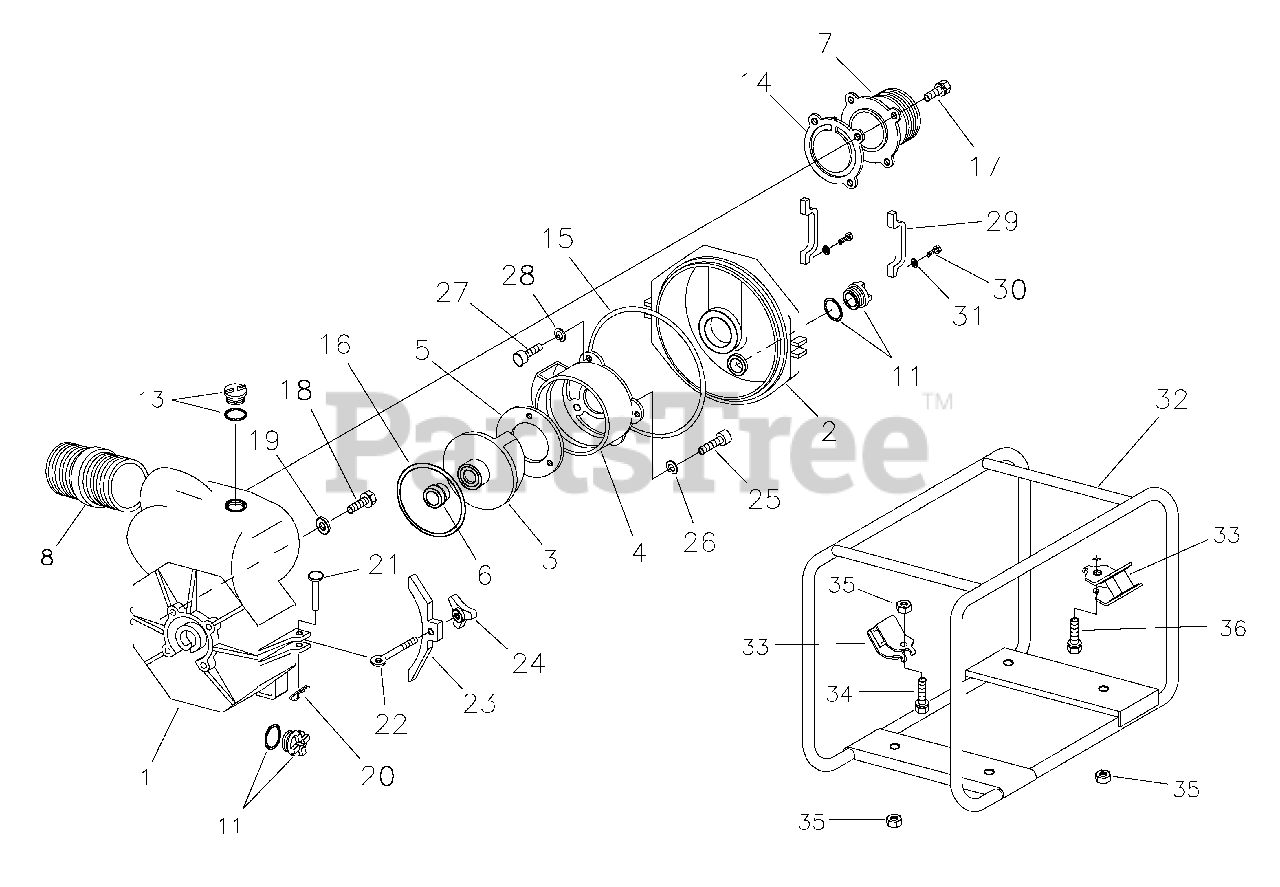

Trash Pump Parts Diagram

  • Title

1

Briggs & Stratton 205231GS

Casing

$2017.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205232GS

Cover, Casing

$268.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205233GS

Impeller

$524.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205234GS

Inner Casing

$282.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 205235GS

Liner

$50.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205236GS

Seal, Mechanical

$121.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 205237GS

Valve Case, NPT, 2"

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205603GS

Valve Case, BSP, 2"

$35.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 205238GS

Fitting, Pipe, NPT, 2"

$61.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205604GS

Fitting, Pipe, BSP, 2"

$91.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205239GS

Assy, Plug

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205240GS

Assy, Priming Plug

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205241GS

Check Valve

$37.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 205324GS

O-Ring

$9.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205325GS

O-Ring

$7.99

$

In Stock, only 2 left!

0

17

-----

Hex Bolt, M8 x 25

Note: (Purchase locally)

$

$

Not available

18

-----

Flange Bolt, M8 x 50

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 205299GS

Washer, Rubber

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205242GS

Snap Pin

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 205243GS

Rivet

$8.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 205244GS

Cover Bolt

$24.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205245GS

Casing Cover Holder

$58.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 205246GS

Knob

$30.99

$

Usually ships in 2-12 days

0

25

-----

Hex Socket Bolt, M6 x 16

Note: (Purchase locally)

$

$

Not available

26

-----

Lock Washer, M6

Note: (Purchase locally)

$

$

Not available

27

-----

Hex Socket Bolt, M8 x 20

Note: (Purchase locally)

$

$

Not available

28

-----

Lock Washer, M8

Note: (Purchase locally)

$

$

Not available

29

Briggs & Stratton 205247GS

Drain Cover Handle

$9.99

$

Usually ships in 2-12 days

0

30

-----

Hex Bolt, M6 x 25

Note: (Purchase locally)

$

$

Not available

31

-----

Washer, M6

Note: (Purchase locally)

$

$

Not available

32

Briggs & Stratton 205248GS

Cradle

$378.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205249GS

Anti Vibration, Rubber

$17.99

$

In Stock, only 4 left!

0

34

-----

Hex Bolt, M8 x 40

Note: (Purchase locally)

$

$

Not available

35

-----

Flange Nut, M8

Note: (Purchase locally)

$

$

Not available

36

-----

Hex Bolt, M8 x 20

Note: (Purchase locally)

$

$

Not available

--

-----

Engine, Honda

Note: Contact Engine Manufacturer Parts Not Illustrated

$

$

Not available

--

Briggs & Stratton 204370GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203522GS

Decal, Warning, Fuel Tank

Note: Parts Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204540GS

Decal, Warning, Vertical

Note: Parts Not Illustrated

$

$

Currently unavailable
