073012-0 - Briggs & Stratton 248 GPM Water Pump Main Unit Parts Diagram

248 GPM Water Pump

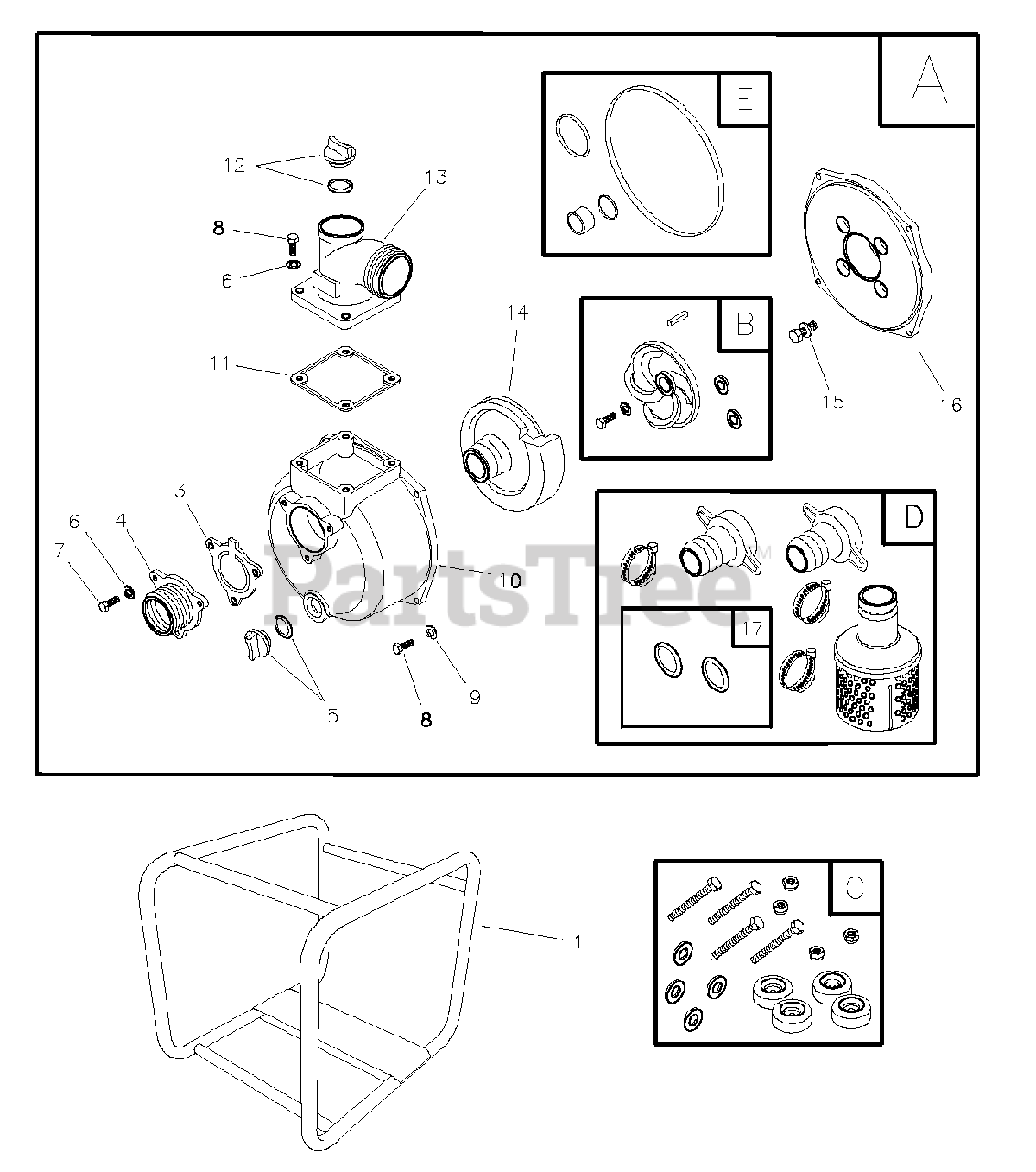

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 865159GS

CRADLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197755GS

VALVE, Check

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197757GS

FLANGE, Inlet, 3" BSP

$35.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198057GS

ASSY, Plug

$

$

Not available

6

-----

WASHER, Flat, 3/8 M10

$

$

Not available

7

-----

HHCS, M10 - 1.5 x 20

$

$

Not available

8

-----

HHCS, M10 - 1.5 x 25

$

$

Not available

9

-----

WASHER, Lock M10

$

$

Not available

10

Briggs & Stratton 197753GS

HOUSING, Pump
(Superseded to 704466)

$75.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 197759GS

GASKET, Out

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198155GS

ASSY, Plug

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197761GS

FLANGE, Out, 3" BSP
(Superseded to 704464)

$64.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 197748GS

VOLUTE, 3"

$29.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 198048GS

ASSY, Fastener

$7.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 197739GS

ADAPTER, Engine
(Superseded to 704463)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 197765GS

GASKET, 3"

$9.49

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198062GS

ASSY, Housing Pump

Note: Service kits include all parts shown within the box.

$384.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 198156GS

KIT, Impeller

Note: Service kits include all parts shown within the box.

$22.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 197887GS

KIT, Vibration Mount

Note: Service kits include all parts shown within the box.

$15.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 198157GS

KIT, Coupler, 3" BSP
(Superseded to 705413)

Note: Service kits include all parts shown within the box.

$161.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 198158GS

KIT, Seal

Note: Service kits include all parts shown within the box.

$50.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS5234

MANUAL, Operator’s

Note: Not Illustrated

$

$

Not available

--

Briggs & Stratton 198302GS

DECAL, Recoil

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198301GS

DECAL, Air Cleaner

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198296GS

DECAL, Fuel Tank

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198303GS

DECAL, Caution

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198305GS

LABEL, Warning

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

-----

ENGINE

Note: Contact Engine Manufacturer; Not Illustrated

$

$

Not available
