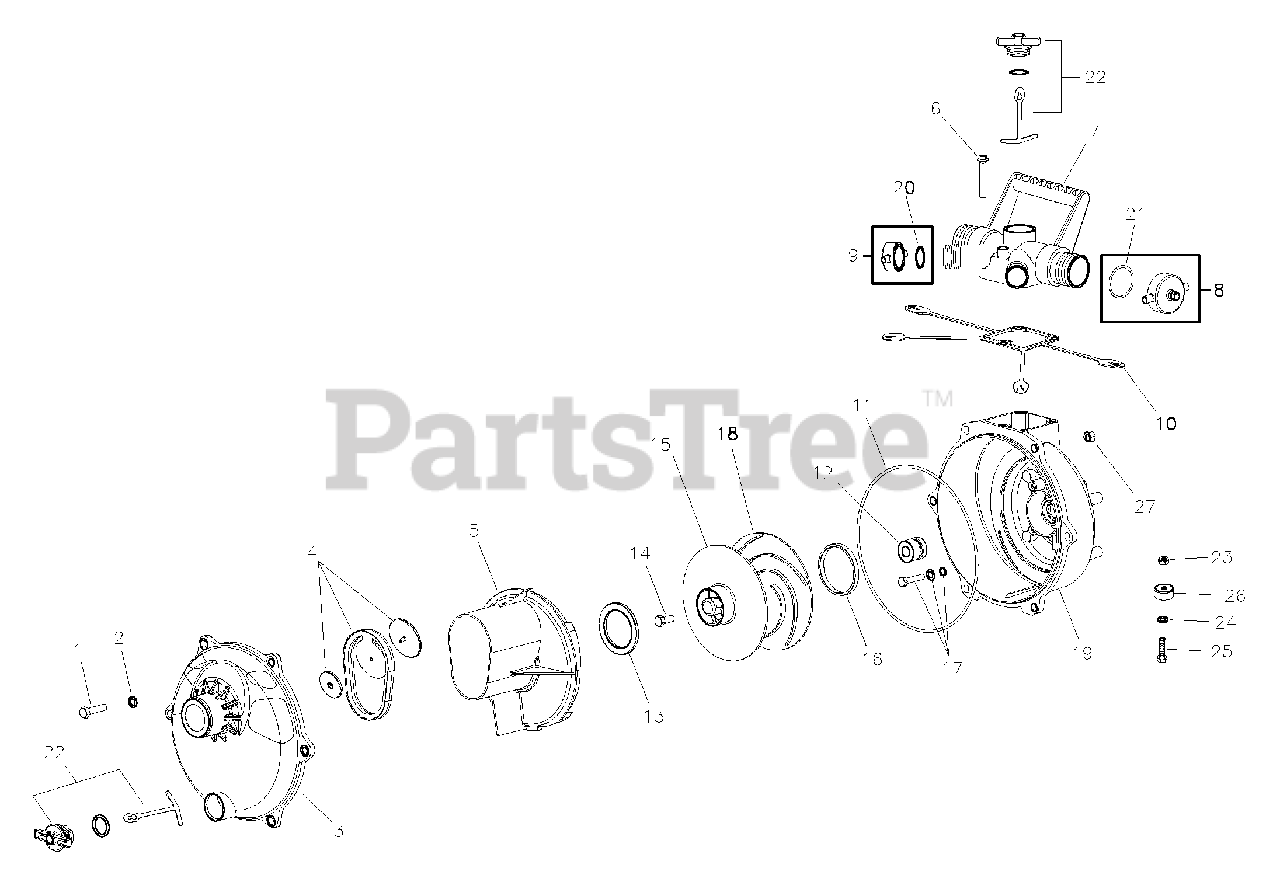

073004-0 - Briggs & Stratton 225 GPM Water Pump Main Unit Parts Diagram

225 GPM Water Pump

Main Unit Parts Diagram

  • Title

1

HHCS, 3/8 - 16 x 1-1/4

Note: (Purchase locally)

$

$

Not available

2

WASHER, Flat, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

3

Briggs & Stratton 199362GS

CASING, Front

$282.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201423GS

ASSY, Check Valve

$37.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199364GS

DIFFUSER, Coverplate

$120.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 199365GS

SCREW, Outlet (Pkg of 3)

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 199366GS

DISCHARGE, 4-Way

$148.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 199367GS

KIT, Cap

Note: (Includes Item 21)

$65.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 199368GS

KIT, Cap

Note: (Includes Item 20)

$67.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 199369GS

GASKET, Discharge

$13.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 199370GS

O-RING, Casing

$20.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 201424GS

KIT, Seal

$30.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 199372GS

NECKRING

$18.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 199373GS

SCREW, Impeller

$14.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 199375GS

IMPELLER, Top

$98.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 199377GS

NECKRING, Balance

$18.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 201365GS

KIT, Hardware (Set of 4)

$107.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 199376GS

IMPELLER, Bottom

$105.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 199379GS

CASING, Rear

$217.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 200531GS

GASKET

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200532GS

GASKET

$6.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 201422GS

KIT, Priming Drain Plug

$32.99

$

Usually ships in 2-12 days

0

23

NUT, Hex, M8 - 1.25

Note: (Purchase locally)

$

$

Not available

24

WASHER, Flat M8

Note: (Purchase locally)

$

$

Not available

25

HHCS, M8 - 1.25 x 40

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 199380GS

FOOT, Mounting
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

27

NUT, 3/8 - 16

Note: (Purchase locally)

$

$

Not available

Briggs & Stratton 199785GS

MANUAL, Operator's

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 198303GS

DECAL, Caution

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199757GS

LABEL, Warning

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199976GS

CLAMP, Hose, 1- 1/2"

Note: Not Illustrated

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199977GS

STRAINER, 1- 1/2"

Note: Not Illustrated

$19.99

$

Usually ships in 2-12 days

0

ENGINE

Note: Contact Engine Manufacturer Not Illustrated

$

$

Not available
