073003-0 - Briggs & Stratton 240 GPM Water Pump Main Unit Parts Diagram

240 GPM Water Pump

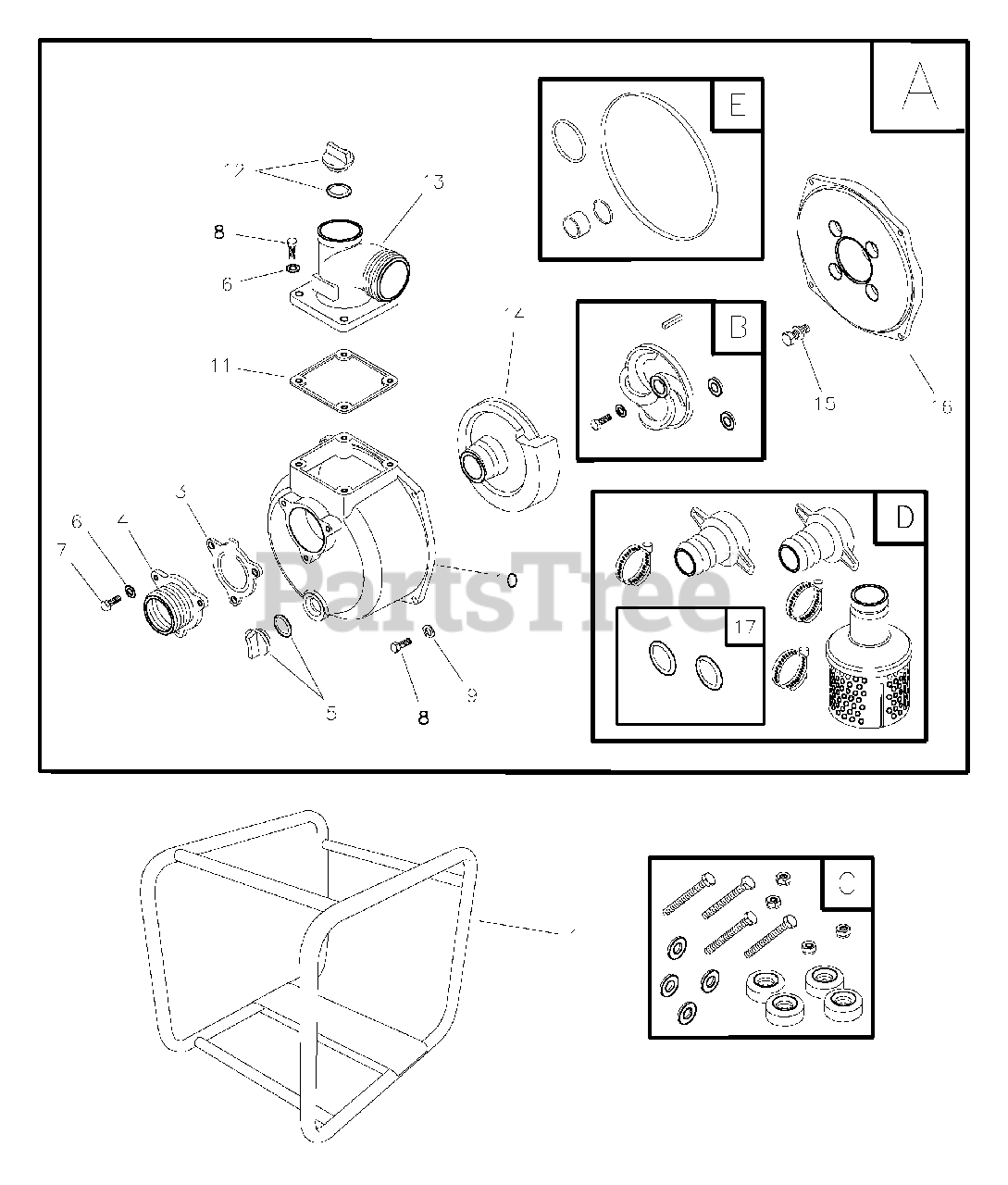

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 865159GS

CRADLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197755GS

VALVE, Check

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197757GS

FLANGE, Inlet

$35.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198057GS

ASSY, Plug

$

$

Not available

6

WASHER, Flat, 3/8 M10

Note: (Purchase locally)

$

$

Not available

7

HHCS, M10 - 1.5 x 20

Note: (Purchase locally)

$

$

Not available

8

HHCS, M10 - 1.5 x 25

Note: (Purchase locally)

$

$

Not available

9

WASHER, Lock M10

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 197753GS

HOUSING, Pump
(Superseded to 704466)

$75.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 197759GS

GASKET, Out

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198155GS

ASSY, Plug

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197761GS

FLANGE, Out
(Superseded to 704464)

$64.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 197748GS

VOLUTE, 3"

$29.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 198067GS

ASSY, Fastener

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 197739GS

ADAPTER, Engine
(Superseded to 704463)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 197765GS

GASKET

$9.49

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198062GS

ASSY, Housing Pump

$384.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 198156GS

KIT, Impeller

$22.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 197887GS

KIT, Vibration Mount

$15.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 198157GS

KIT, Coupler
(Superseded to 705413)

$161.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 198158GS

KIT, Seal

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197988GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 198302GS

DECAL, Recoil

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198301GS

DECAL, Air Cleaner

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198296GS

DECAL, Fuel Tank

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198303GS

DECAL, Caution

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198305GS

LABEL, Warning

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

HHCS, M8 - 1.25 X 30

Note: Engine Mounting Hardware Not Illustrated ; (Purchase locally)

$

$

Not available

WASHER, Flat, 5/16 - M8

Note: Engine Mounting Hardware Not Illustrated ; (Purchase locally)

$

$

Not available

NUT, Hex, M8 - 1.25

Note: Engine Mounting Hardware Not Illustrated ; (Purchase locally)

$

$

Not available

WASHER, Lock, 5/16 M8

Note: Engine Mounting Hardware Not Illustrated ; (Purchase locally)

$

$

Not available
