072 R (118-072R100) - Cub Cadet Walk-Behind Mower Engine (1988) B&S 3.5 HP-92902-3311-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

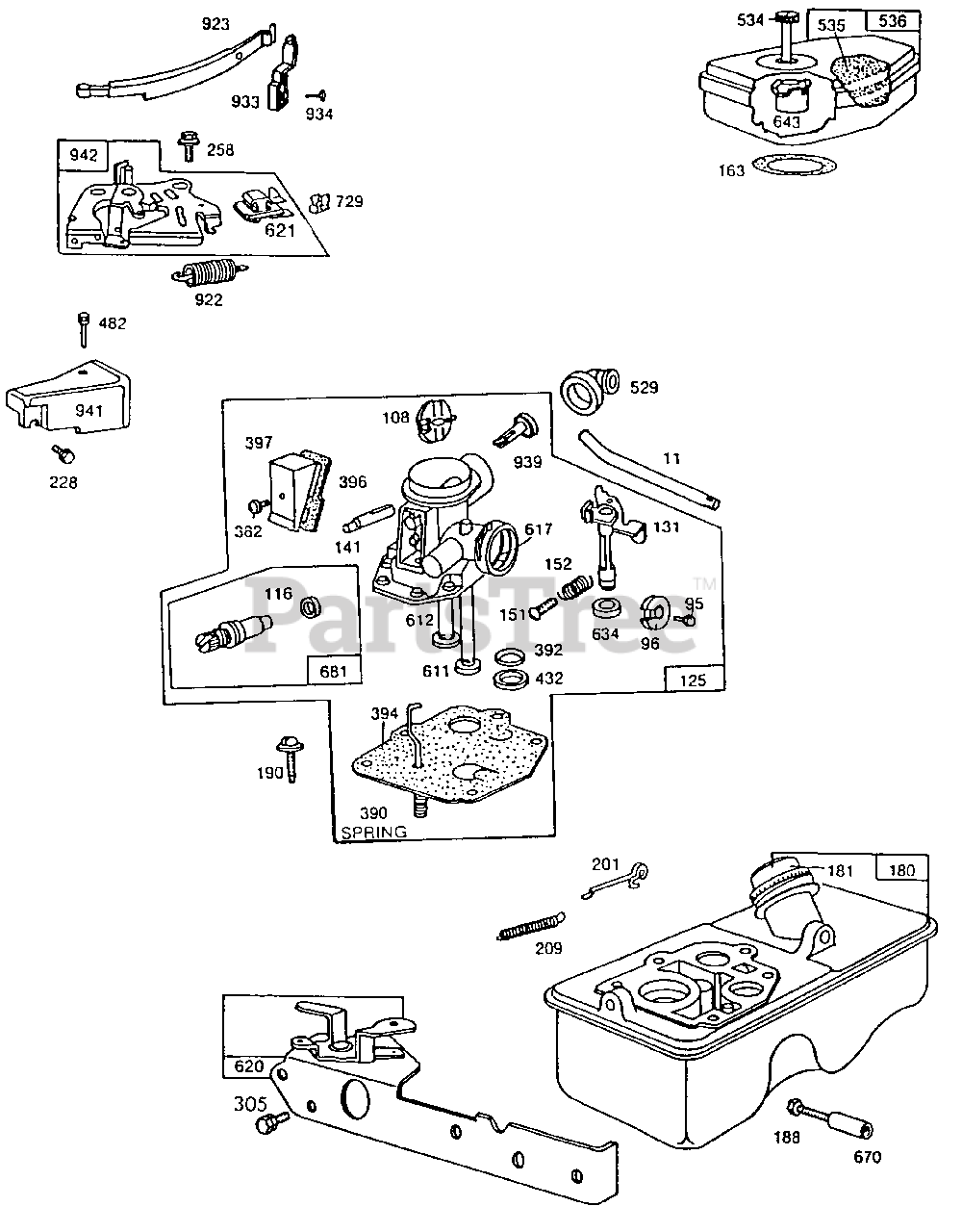

B&S 3.5 HP-92902-3311-01 Part 2 Parts Diagram

  • Title
11

Cub Cadet BS-231272

Tube-Breather
(Superseded to BS-691245)

$8.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-93499

Screw-Throttle Valve Mounting Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-211237

Valve-Throttle

$

$

Currently unavailable

108

Cub Cadet BS-280370

Valve-Choke

$5.99

$

Usually ships in 2-12 days

0

116

$

$

Not available

125

Cub Cadet BS-395957

Carburetor Assembly

$

$

Not available

131

Cub Cadet BS-299977

Shaft and Lever-Throttle

$

$

Currently unavailable

141

Cub Cadet BS-69808

Shaft-Choke

$

$

Currently unavailable

151

Cub Cadet BS-93524

Screw-Rd. Hd.-5-40 x 1/2

$

$

Currently unavailable

152

Cub Cadet BS-260746

Spring-Throttle Adj.

$

$

Currently unavailable

163

Cub Cadet BS-271139

Gasket-Air Cleaner Mounting

$

$

Not available

180

Cub Cadet BS-396781

Tank Assembly-Fuel

$

$

Not available

181

Cub Cadet BS-298425

Cap-Fuel Tank

$

$

Not available

188

Cub Cadet BS-94102

Screw-Fuel Tank and Starter Mounting
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

190

Cub Cadet BS-93440

Screw-Fuel Tank Mtg.

$

$

Not available

201

Cub Cadet BS-261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-261060

Spring-Governor

$4.49

$

Usually ships in 2-12 days

0

228

Cub Cadet BS-93758

Screw-Hex Hd.

$

$

Not available

258

Cub Cadet BS-94018

Screw-Hex Hd.
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

305

Cub Cadet BS-94153

Screw-Mounting Sem

$

$

Not available

382

Cub Cadet BS-93545

Screw-Choke Link Cover

$3.49

$

In Stock, only 1 left!

0

390

Cub Cadet BS-261249

Spring-Diaphragm

$

$

Currently unavailable

392

Cub Cadet BS-260455

Spring-Fuel Pump Diaphragm

$4.49

$

In Stock, Qty 7

0

394

Cub Cadet BS-391643

Diaphragm-Carburetor

$

$

Not available

396

Cub Cadet BS-270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Cub Cadet BS-211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

482

Cub Cadet BS-93621

Screw-Sem
(Superseded to BS-691183)

$

$

Not available

529

Cub Cadet BS-280368

Grommet-Breather

$7.99

$

Usually ships in 2-12 days

0

534

Cub Cadet BS-93374

Screw-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

535

Cub Cadet BS-270579

Element-Air Cleaner

$

$

Not available

536

Cub Cadet BS-390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

611

Cub Cadet BS-297219

Pipe-Fuel

Note: (Long)

$

$

Not available

612

Cub Cadet BS-296811

Pipe-Fuel

Note: (Short)

$

$

Not available

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

620

Cub Cadet BS-299974

Plate-Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Cub Cadet BS-270167

Washer-Throttle Shaft (Felt)

$4.99

$

In Stock, Qty 13

0

643

Cub Cadet BS-280374

Cup-Air Cleaner

$7.49

$

Usually ships in 2-12 days

0

670

Cub Cadet BS-94038

Spacer-Fuel Tank
(Superseded to BS-691631)

$5.99

$

Usually ships in 2-12 days

0

681

Cub Cadet BS-395508

Needle Valve Kit

$8.99

$

Usually ships in 2-12 days

0

729

$

$

Not available

922

Cub Cadet BS-261647

Spring-Band Brake

$

$

Not available

923

Cub Cadet BS-394867

Brake Assembly-Band

$39.99

$

Usually ships in 2-12 days

0

933

Cub Cadet BS-223448

Pivot-Band Brake

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw-Band Brake Pivot

$

$

Currently unavailable

939

Cub Cadet BS-395665

Shaft Assembly-Choke

$14.99

$

Usually ships in 2-12 days

0

941

Cub Cadet BS-280395

Cover-Linkage

$

$

Not available

942

Cub Cadet BS-397668

Bracket Assembly-Lever

$

$

Currently unavailable
