072 R (118-072R100) - Cub Cadet Walk-Behind Mower (1988) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

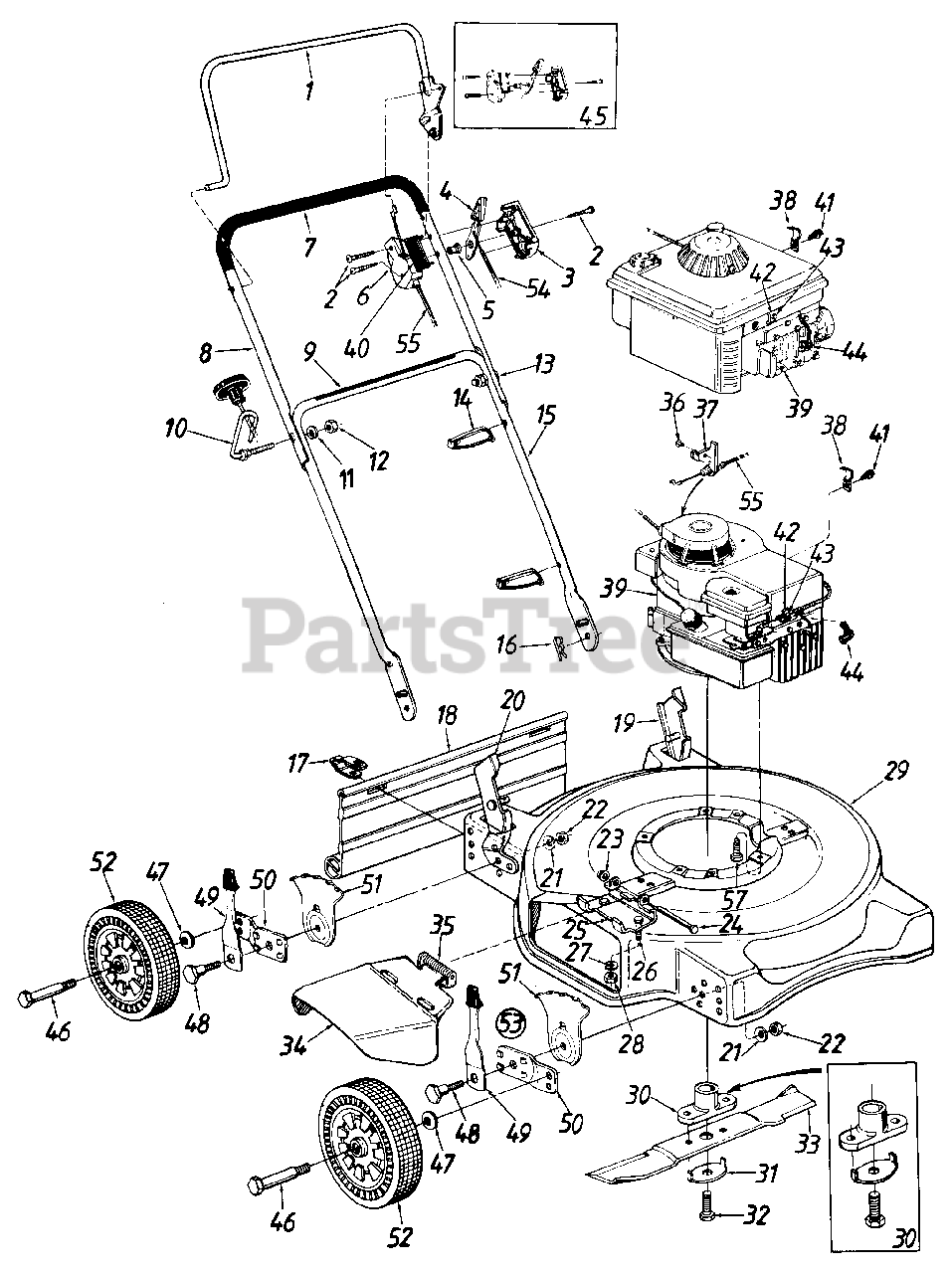

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 14321

HANDLE ASSY-CONTROL-LH

$

$

Not available

2

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

3

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

4

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

6

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

7

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

Note: (Optional)

$

$

Currently unavailable

8

Cub Cadet 749-0754

HANDLE-UPPER

$

$

Not available

9

Cub Cadet 777-5776

LABEL

$

$

Currently unavailable

10

Cub Cadet 710-0842

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

11

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

14

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet 749-0373

LOWER HANDLE
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

16

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 17098

CLIP-HINGE
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-0872

FLAP-RR
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

Cub Cadet 17189

BRACKET ASSY-HDLE-LH

$

$

Not available

20

Cub Cadet 17188

BRACKET ASSY-HDLE-RH

$

$

Not available

21

Cub Cadet 736-0356

WASHER-BELL .390 ID X 1.375 X .062
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 711-0555

PIN-PIVOT

$

$

Not available

25

Cub Cadet 11130

PLATE-ADAPTER

$

$

Not available

26

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

27

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

28

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 17036

DECK ASSEMBLY-20IN

Note: Color Code 499

Variations

Cub Cadet 17036-0480

DECK ASSEMBLY-20INBRILLIANT G - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17036-0483

DECK ASSEMBLY-20INCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17036-0498

DECK ASSEMBLY-20IN(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17036-0629

DECK ASSEMBLY-20INSILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17036-0638

DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17036-0662

DECK ASSEMBLY-20IN(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

30

Cub Cadet 753-0462

KIT-BLADE ADAPTER-KEYED

$

$

Not available

31

Cub Cadet 736-0415

KIT-BLADE MOUNTING
(Superseded to 753-0525)

$

$

Not available

32

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

33

Cub Cadet 742-0220

BLADE-20IN

$

$

Not available

34

Cub Cadet 14944

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

Note: Color Code 499

$72.99

$

In Stock, Qty 6

0

35

Cub Cadet 732-0253

SPRING-TORSION

$

$

Not available

36

Cub Cadet 728-0171

RIVET

$

$

Not available

37

Cub Cadet 14924

BRACKET-CABLE

$

$

Not available

38

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

39

Note: Engine

$

$

Not available

40

Cub Cadet 777-5773

LABEL

$

$

Currently unavailable

41

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 751-0369

CLAMP-CONDUIT

$

$

Not available

43

Cub Cadet 710-0227

SCREW-HEX WASH HD AB-TAPP #8 X .38

$4.49

$

In Stock, Qty 15

0

44

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

Note: (Optional)

$

$

Not available

45

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available

46

Cub Cadet 738-0102

SCREW-SHLD .498 DIA X 1.450

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507

SCREW-SHLD
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 14832

LEVER & KNOB ASSY
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

Cub Cadet 15262

BAR-PIVOT
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

51

Cub Cadet 15261

PLATE-HGT ADJ
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1162

WHEEL ASSY W/TIRE

$

$

Not available

53

Cub Cadet 14578

ADJUSTER ASSY-HGT-RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

ADJUSTER ASSY-HGT-LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

Cub Cadet 746-0642

WIRE-THROTTLE-52 IN
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 746-0476

WIRE-THROTTLE
(Superseded to 946-0476A)

$

$

Not available

57

Cub Cadet 710-0654

SCREW-HEX
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0
